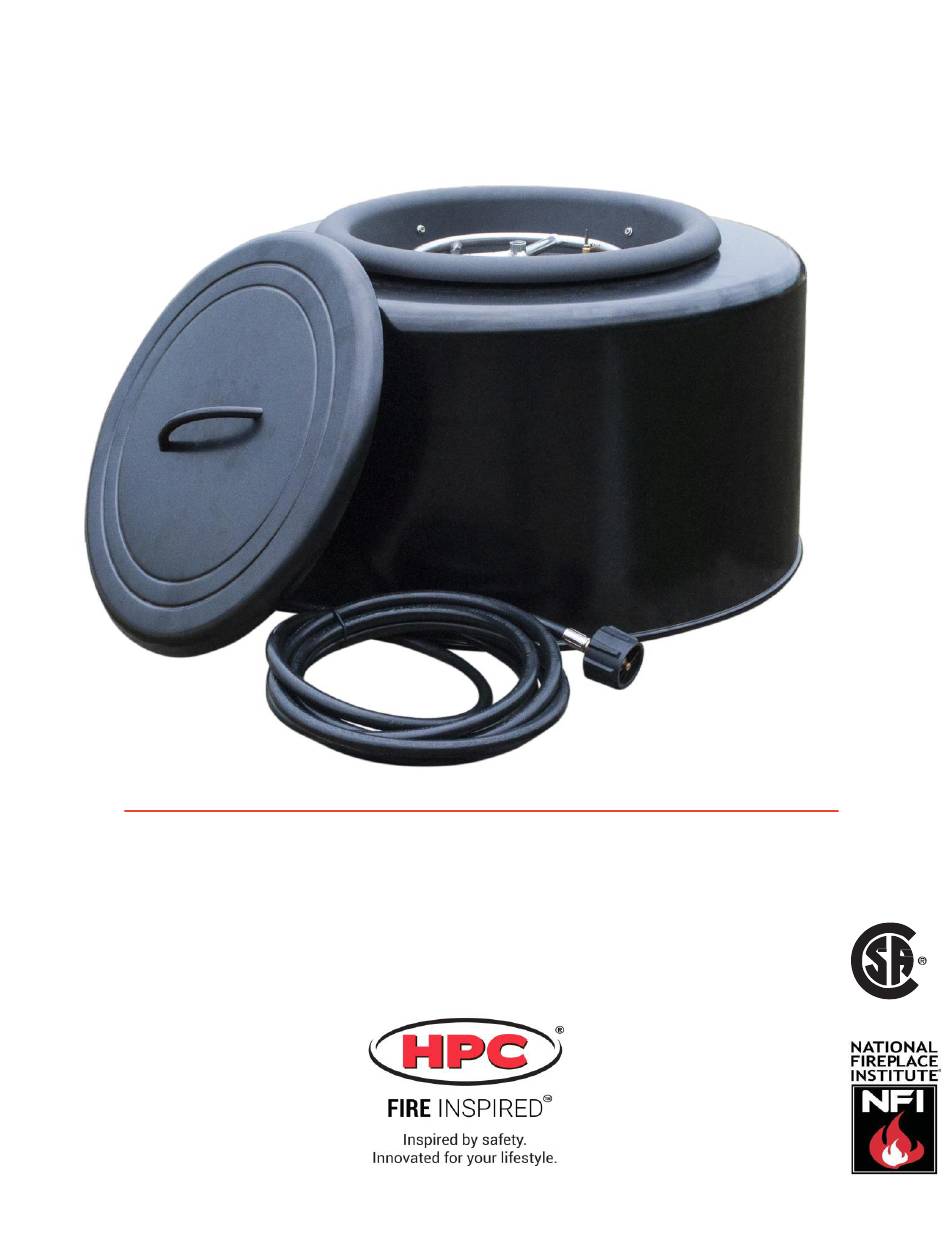

- Page 1 SPORT PIT SPORTPIT20-BLK Portable Fire Pit Series Installation & Operation Instructions 950-SPORT PIT...
- Page 2 This is a Safety Alert Symbol When you see this symbol on the fire pit insert, or in this manual, look for one of the following signal word panels alerting you to the potential for personal injury, death or major property damage. WARNING Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any other appliance.
- Page 3 Table of Contents...
-
Page 4: Table Of Contents
Table of Contents Important Safety Information ....................... 4 Technical Support ........................4 Symbol Legend ......................... 4 Important Safety Information for Installers ................5 Important Safety Information for End-Users ................5 Product Features and Parts List ....................6 Selecting the Fire Pit Location ..................... 7 Overhead Structures and Sidewall Clearance Requirements ........... -
Page 5: Important Safety Information
Important Safety Information • To qualify for warranty, all instructions must be strictly followed. Otherwise, SELECT MODELS warranty may be void. Never alter product or configuration in any way. Certified to • Annual servicing should be handled by professionals certified in the US by the ANSI Z21.97-2017 CSA 2.41-2017 National Fireplace Institute (NFI) as NFI Gas Specialists or in Canada by WETT... -
Page 6: Important Safety Information For Installers
Important Safety Information Please reference page 1 for all warnings. Important Safety Information for Installers Manual needs to be with the end-user and to retain it for future reference. Instructions and product updates are also available at www.hpcfire.com under the Support tab. -
Page 7: Product Features And Parts List
Product Features and Parts List Fire Pit Insert Installation and Operation Instructions Burner Thermocouple Sport Pit Shell • Regulator • Tip Switch • Safety valve SPORTPIT20-BLK LP Tank Hose • LP tank not included • LP tank enclosure or mounting bracket is not included. -
Page 8: Selecting The Fire Pit Location
It is recommended that material such as granite, marble IMPORTANT or other dense stone be kept away from heat and especially flame due to risk of cracking. HPC is not responsible for damage resulting from failure to follow these recommendations. -
Page 9: Overhead Structures And Sidewall Clearance Requirements
Overhead Structures and Sidewall Clearance Note: Normal flame height is 6”-8” Table 4.1 – Sport Pit Clearance... -
Page 10: Remote Lp Tank System Enclosure Requirements - If Applicable
Only select models of Push-Button / Match-Lit IMPORTANT (FPPK and MLFPK) fire pits are permissible for small tank use. Please see the HPC product catalog, visit www.hpcfire.com, or contact your HPC dealer for details. Locate the hose out of pathways to avoid accidental IMPORTANT damage and prevent it from becoming a trip hazard. - Page 11 Remote LP Tank System Enclosure Requirements - If Applicable • Ventilation openings in sidewalls shall not communicate directly with other enclosures of the appliance. See Tables 6.1 and 6.2. LP Tank Size Top Opening Bottom Opening 20 LB (9.1 KG) 20 in (130 cm 10 in...
- Page 12 Remote LP Tank System Enclosure Requirements – If Applicable Propane Cylinder: Safety Requirements • This appliance has been designed for use with a 20-lb size propane cylinder (not supplied). • The propane cylinder should be checked by your propane supplier prior to installation and use.
- Page 13 Remote LP Tank System Enclosure Requirements - If Applicable Locating the LP tank: Securing the LP tank: WARNING 1. Use an enclosure or L-bracket designed to hold a 20 lb. LP tank. Fasten the L-bracket to the bottom Failure to follow location and mounting guidelines for the LP tank could result in serious injury.
- Page 14 Sport Pit, includes regulator, hose and orifice. 4) Open valve of the propane tank without turning on the Sport Pit. This pressurizes the hose. 5) Check all fittings, if there is a leak, you will see bubbles forming.
-
Page 15: Installing The Fire Pit
Installing the Fire Pit To prevent damage, unhook the portable fire pit from the IMPORTANT gas supply for pressure leak tests. Burn Testing: It is the responsibility of the qualified IMPORTANT installer to test for gas leaks at all connections. •... -
Page 16: Adding Approved Media
Adding Approved Media WARNING FOR GLASS MEDIA USAGE WITH LP GAS- WHEN USING APPROVED DECORATIVE GLASS TO COVER BURNER APPLY ONLY ENOUGH TO HIDE BURNER. APPLYING OVER 1/2” MAY CREATE BACK PRESSURE AND GAS LEAKAGE FROM AIR MIXER RESULTING IN LP POOLING UNDER FIRE PIT. WARNING FOR GLASS MEDIA USAGE WITH LP GAS- THE UNIT MUST BE TESTED WITH MEDIA OVER BURNER FOR CONFIRMATION OF NO BACK PRESSURE CREATING... -
Page 17: Operating The Fire Pit
Operating the Fire Pit • Before use, be sure to test all gas connections for leaks. Do not use portable fire pit if there is any evidence of leaking gas. If leaking gas suspected, turn off the main gas supply and repair immediately. •... - Page 18 Operating the Fire Pit DANGER Sport Pit Start-up 1. STOP! Read the safety information on If you smell gas: “If you smell gas”, Section 1 – Important 1) Shut off gas to appliance. Safety Information. 2) Extinguish any open flame.
-
Page 19: Maintaining The Fire Pit
Operating the Fire Pit Maintaining the Fire Pit Maintaining the Fire Pit • Any guard or protective device removed for servicing must Service be replaced prior to operating the portable fire pit. We suggest that our products • We suggest that our products be serviced annually by a be serviced by a professional professional certified in the US by the National Fireplace certified in the US by the... -
Page 20: Troubleshooting
Troubleshooting Table 11.1 below indicates some potential causes and Service counter measures to the symptoms indicated in bold. Please contact your retailer or certified technician We suggest that our products be for service and repair. serviced by a professional certified in the US by the National Fireplace Institute (NFI) as NFI Gas Specialists. -
Page 21: Compatible Accessories
RV motor home. For a complete list of accessories, visit www.hpcfire.com Replacement Parts Please contact your dealer for parts – if unsure please contact HPC or visit our website at www.hpcfire.com and we will be happy to help you... -
Page 22: Warranty
2) Stainless Steel Pan: Commercial-1 year; Residential-5 years Warranty commences from the date of original sale / shipment from HPC FOB Dayton, Ohio. This warranty is for parts and in-house (HPC) labor. The defective product must be sent back to HPC with a Return Merchandise Authorization (RMA) issued by HPC for that specific product and any other additional information for the nature of the defect or warranty claim.
