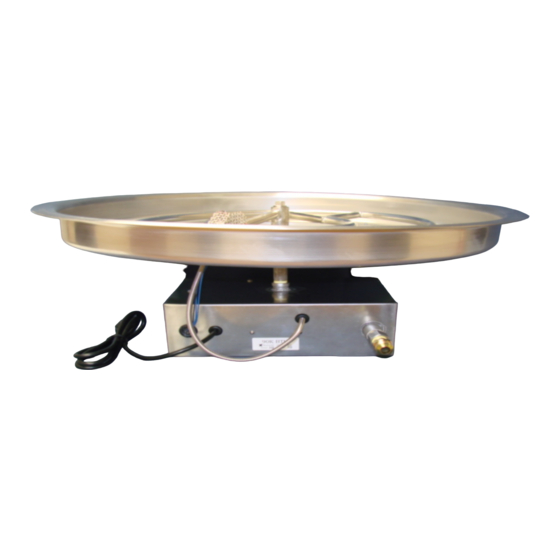

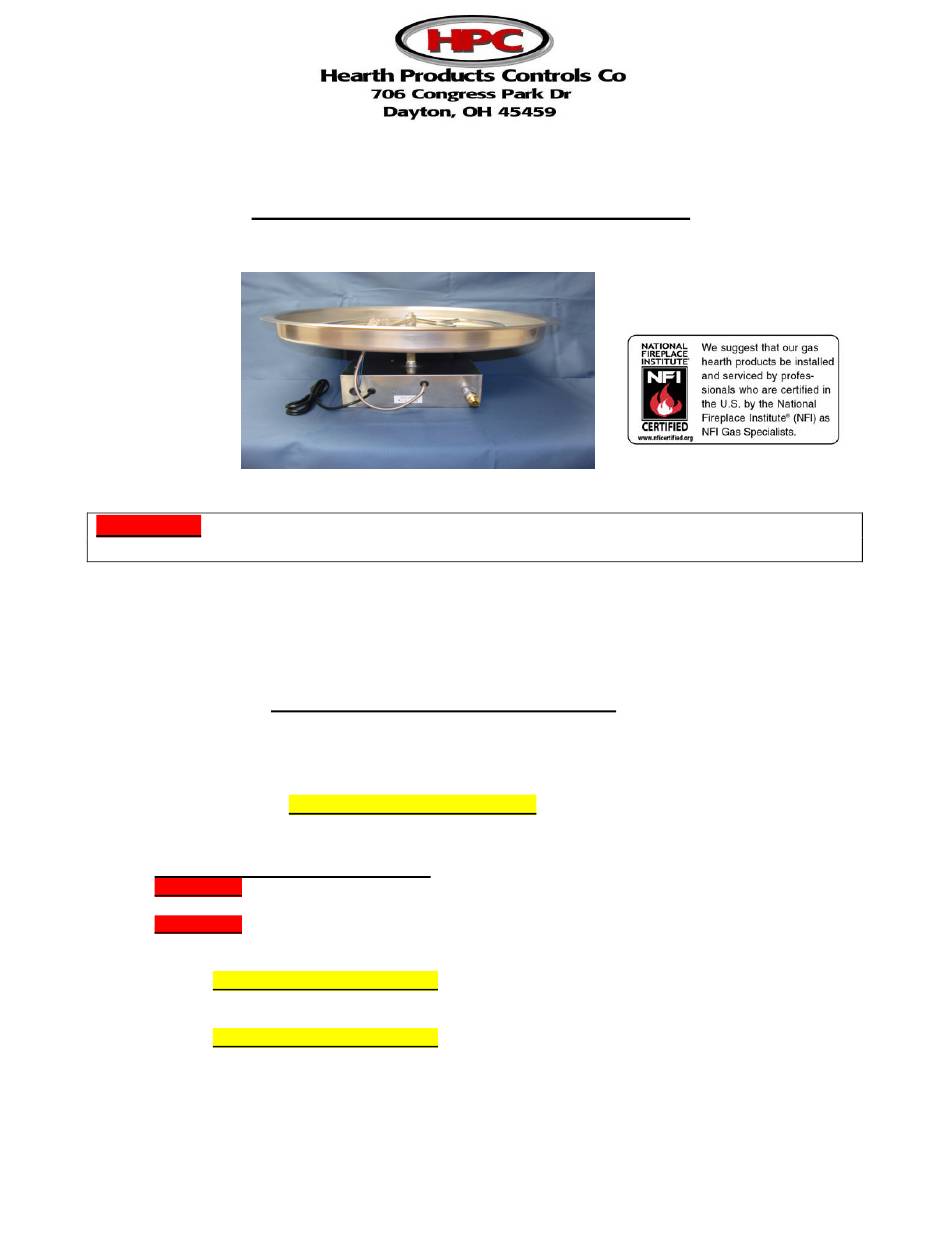

HOT SURFACE IGNITION FIRE PITS
(All Sizes from 13SS90 HSI to 42FSS300 HSI)
WARNING: If the information in this manual is not followed, an explosion or fire could
result causing property damage, personal injury, or loss of life.
We recommend that our products be installed and serviced by professionals who are certified
in the U.S. by NFI (National Fireplace Institute) or in Canada by WETT (Wood Energy
Technical Training). Installer must follow all instructions carefully to ensure proper
performance and safety.
INSTALLATION PREPARATION
Please carefully follow the steps below when: 1) Selecting the Location. 2) Construction of the
Enclosure. 3) Installation of the Complete Fire Pit. It is the responsibility of the installer to follow
all Local and State Codes concerning the installation and operation of the fire pit.
The steps listed as WARRANTY REQUIREMENT must be strictly followed to qualify for
product 3 year warranty. Warranty will be void if not followed.
1) SELECTING THE LOCATION:
WARNING: COMPLETE FIRE PITS ARE DESIGNED STRICTLY FOR OUTDOOR
USE ONLY. HEARTH PRODUCTS CONTROLS CO. MUST BE NOTIFIED OF ANY OTHER USE.
WARNING: FIRE PITS CREATE VERY HIGH TEMPERATURES- IT IS VERY IMPORTANT
THAT COMBUSTIBLES BE KEPT AT SAFE DISTANCES.
•
WARRANTY REQUIREMENT: For installation of 110vac powered control systems, it is
required to install a wall switch on the fire pit main power line away from the pit enclosure to
prevent unauthorized ignition of the fire pit.
•
WARRANTY REQUIREMENT: The fire pit location must accommodate a gas shut off outside
of fire pit enclosure. The gas line should be a minimum of 3/4" or larger based on fire pit size.
•
To enjoy your fire pit, select a well drained location that allows for sufficient clearance from
combustible materials.
•
Choose a location that allows easy access for installation and maintenance of the fire pit. Make
sure that trees and shrubbery are well clear around and above the fire pit.
12/3/2007
www.hearthproductscontrols.com
Toll Free: (877) 585-9800
828
Fax: (877) 433-0704
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HPC 13SS90 HSI
Summary of Contents for HPC 13SS90 HSI
- Page 1 Fax: (877) 433-0704 HOT SURFACE IGNITION FIRE PITS (All Sizes from 13SS90 HSI to 42FSS300 HSI) WARNING: If the information in this manual is not followed, an explosion or fire could result causing property damage, personal injury, or loss of life.
- Page 2 • Pick a location that allows sufficient horizontal room to enjoy the fire pit while allowing a safe distance from the heat and flame. • Select a location where the fire pit can be attended during operation. Never leave an operating fire pit unattended or by someone not familiar with its operation or emergency shut off locations.
- Page 3 • Turn on main gas supply and check all fittings in and around fire pit for leaks using a leak reactant, leak detector or soapy water. If leaks are found, shut off gas supply repair leaks and retest. • The 3’ power cord can be either tied into the main power supply for use with wall switch or directly plugged into an outlet to use remotely.
-
Page 4: Year Limited Warranty
Fig. 1 Here is some additional helpful information to keep in mind: Fire Pits Dimensions: Are approximately 12” from the bottom of the valve box to the lip of the burner pan. HPC can provide drawings if so desired. Installation Collars are available that can be mortared into enclosure and allow for fire pit to be easily removed for maintenance. - Page 5 Lava Rock & Glass Application Please follow the instructions below to add the finishing touch to your fire pit. Remember the deeper your lava rock or glass the more risk of reducing if not smothering the flame. Particular attention needs to be on the sensor assembly area- if sensor is covered, this will cause the pit to shutdown due to smothering flame around sensor or shorting out sensor rod.
