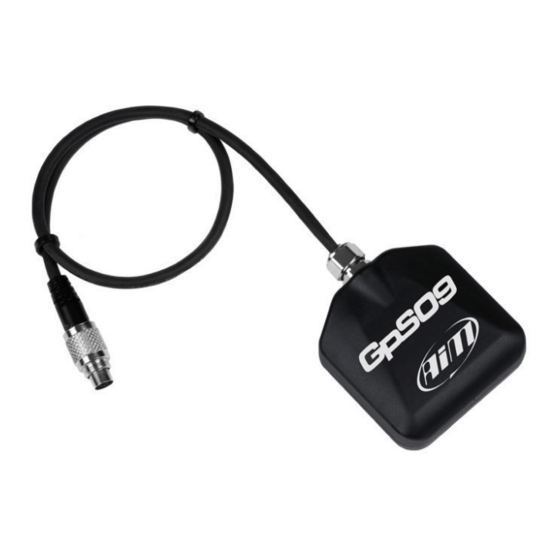

Aim GPS09c Quick Manual

Quick Guide

GPS09c Open

Release 1.01

Table of Contents

Need help?

Do you have a question about the GPS09c and is the answer not in the manual?

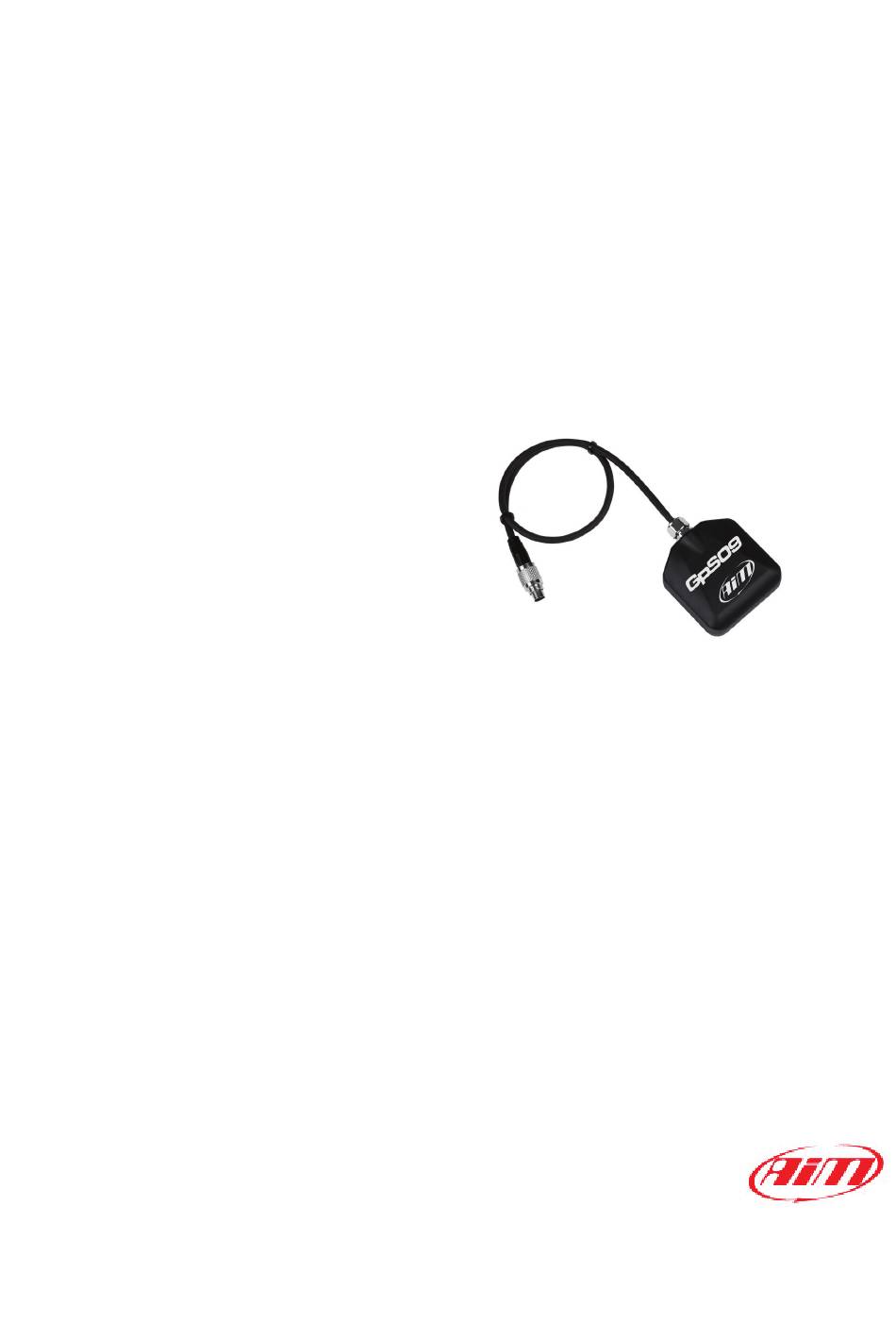

Page 1 Quick Guide GPS09c Open Release 1.01...
Page 2 CAN connection. Freely user configurable • open RS232 connection. Freely user configurable • AiM CAN connection. To be connected as expansion using the AiM CAN network The Module comes with a 7 pins Binder 712 male connector whose pinout is shown here below.
Page 3 The module comes with a 7-pin connector, as shown in fig 1, to which you may connect the proper cable, in dependance upon the connection you need to manage:...
Page 4 In order to configure GPS09c Open you need to connect it to your PC using the proper cable shown: After having connected the GPS09C to your PC USB cable, you have to run our software RaceStudio3 and use the configuration manager...
Page 5 • • DLC (1- 8 bytes) • Bye order (little endian, big endian) • Message frequency (1-5-10-25 Hz) The information the GPS09c Open may transmit in CAN are: • • Altitude GPS Hour • • Latitude GPS Min •...
Page 6 2.2 – RS232 Messages If you set GPS09c Open in order to transmit an RS232 stream, it will transmit the standard NMEA messages. It is of course possible to set all the parameters related to the RS232 protocol, and the frequency at which every message is transmitted.
Page 7 2.3 – AiM CAN connection In case you need to connect the device to an AiM CAN Network, you have to select AiM CAN Connection: the device is automatically managed by the AiM dash or logger, so you don’t need to configure anything else.

Gps09c open
