Summary of Contents for Arista CCA-ETM-Q6

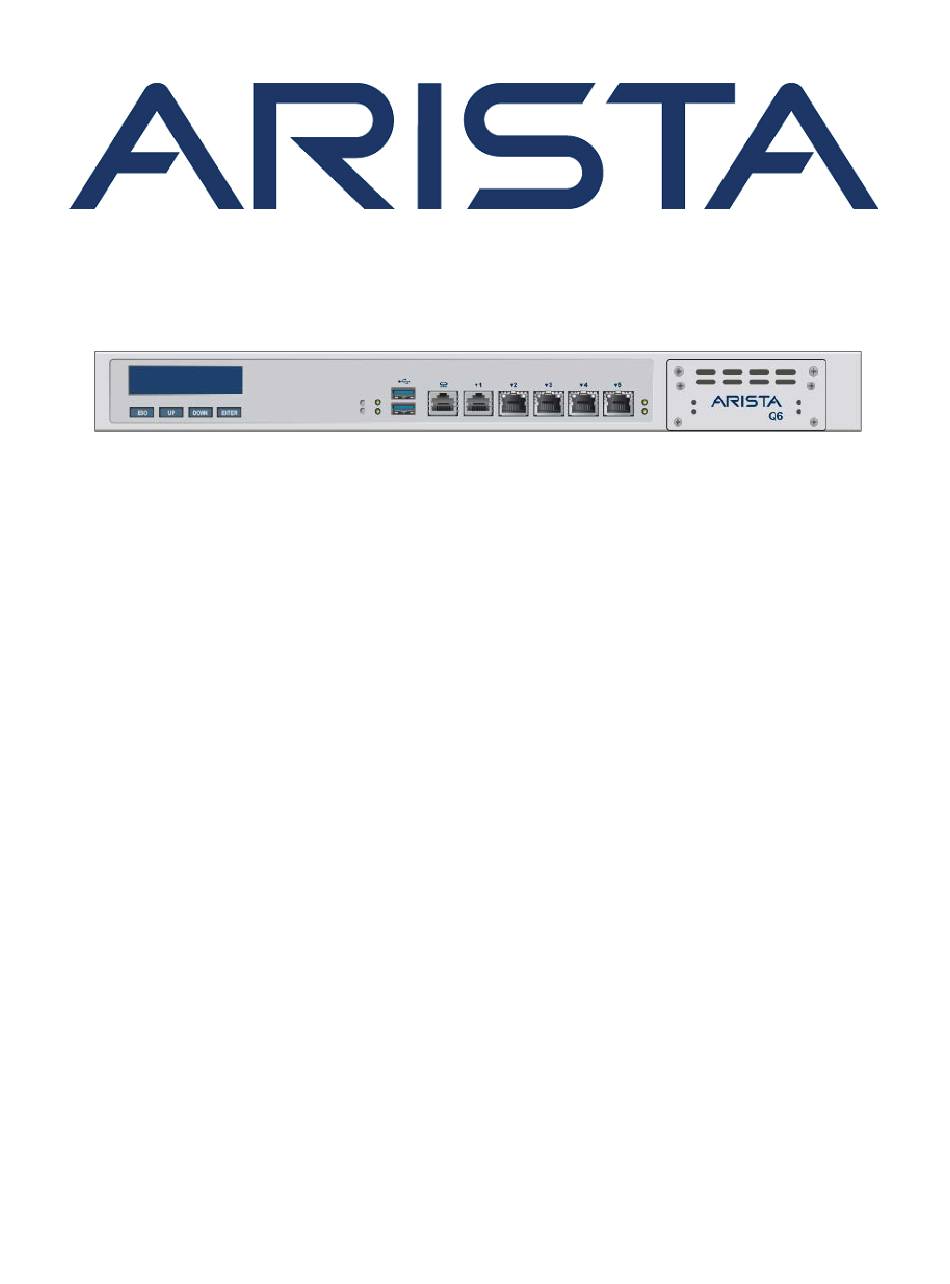

- Page 1 Quick Start Guide Edge Threat Management Appliance CCA-ETM-Q6 Arista Networks www.arista.com DOC-06000-01...
- Page 2 The trademarks, logos and service marks ("Marks") displayed in this documentation are the property of Arista Networks in the United States and other countries. Use of the Marks are subject to Arista Network Term of Use Policy, available at http://www.arista.com/en/terms-of-use. Use of marks belonging to other parties is for...
-
Page 3: Table Of Contents
Contents Contents Chapter 1: Overview................1 1.1 Scope............................1 1.2 Receiving and Inspecting the Equipment................1 1.3 Installation Process.........................2 1.4 Safety Information........................2 1.5 Obtaining Technical Assistance..................... 3 1.6 Specifications.......................... 4 Chapter 2: Preparation................5 2.1 Site Selection..........................5 2.2 Tools and Parts Required for Installation................6 2.3 Electrostatic Discharge Precautions.................. -
Page 4: Chapter 1: Overview
Chapter 1 Overview This guide is intended for properly trained service personnel and technicians who need to install selected Arista Networks appliances. The following topics are covered in this section: • Scope • Receiving and Inspecting the Equipment • Installation Process •... -
Page 5: Installation Process
Ultimate disposal of this product should be handled in accordance with all national laws and regulations. Aucune pièce réparable par l'utilisateur à l'intérieur. Confiez toute réparation à un technicien qualifié. Safety Information Refer to the Arista Networks document Safety Information and Translated Safety Warnings available at: https://www.arista.com/en/support/product-documentation. -
Page 6: Obtaining Technical Assistance
Overview Obtaining Technical Assistance Any customer, partner, reseller, or distributor holding a valid Arista Service Contract can obtain technical support in any of the following ways: • Email: http://support@arista.com. This is the easiest way to create a new service request. -
Page 7: Specifications
Specifications Table 1: Appliance Specifications (Dimensions and Weights) Appliance Size (W x D x H) Weight CCA-ETM-Q6 438mm x 300mm x 44mm 4.98kg Table 2: Appliance Specification (Operational and Storage) Appliance Operating Storage Operating Relative Temperature Temperature Altitude Humidity CCA-ETM-Q6 0°C to 40°C... -
Page 8: Chapter 2: Preparation
Chapter 2 Preparation The following topics are covered in this section: • Site Selection • Tools and Parts Required for Installation • Electrostatic Discharge Precautions Site Selection The following criteria should be considered when selecting a site to install the appliance. •... -
Page 9: Tools And Parts Required For Installation
Tools and Parts Required for Installation The following tools are required for installation: • Phillips #1 screwdriver Electrostatic Discharge Precautions Observe these guidelines to avoid ESD damage when installing or servicing the appliance • Assemble or disassemble equipment only in a static-free work area. •... -
Page 10: Chapter 3: Mounting The Appliance
Chapter 3 Mounting the Appliance The appliance is designed to be installed in a rack. The following topics are covered in this chapter: • Attaching Mounting Brackets to the Chassis • Inserting the Appliance into the Rack... -
Page 11: Attaching Mounting Brackets To The Chassis
Mounting the Appliance Attaching Mounting Brackets to the Chassis This procedure describes attaching mounting brackets to the appliance chassis. 1. Place the mounting bracket flush against one side and to the front of the chassis so that the holes in the bracket and the chassis are in line for the attachment screws. -
Page 12: Inserting The Appliance Into The Rack
Mounting the Appliance Inserting the Appliance into the Rack This procedure attaches the appliance to the rack. Note: Use the appropriate screws for the rack posts being used. 1. Lift the chassis into the rack. Position the brackets against the rack posts at the same level. 1, 2 Mounting screws (not included) 2. -
Page 13: Chapter 4: Cabling The Appliance
Chapter 4 Cabling the Appliance Important: Installation of this equipment must comply with local and national electrical codes. If necessary, consult with the appropriate regulatory agencies and inspection authorities to ensure compliance. Installation de cet équipement doit être conformes aux codes électriques locaux et nationaux. Si nécessaire, consulter les organismes de réglementation appropriés et des autorités de contrôle pour assurer la conformité. -
Page 14: Chapter 5: Configuring The Appliance
You can manage your appliance via Edge Threat Management Dashboard or from the local network. From Edge Threat Management Dashboard 1. Navigate your web browser to https://edge.arista.com/cmd. 2. Log in with your Edge Threat Management Dashboard account, or click Create Account to set up an account. -
Page 15: Appendix A: Status Indicators
Appendix A Status Indicators The following topics are covered in this appendix: • Front Indicators • Port Indicators Front Indicators Front panel indicators are located on the left display screen and the right LED indicators. The figure below shows the front panel indicators and their locations. 1 Power 2 HDD status... -
Page 16: Port Indicators
Port Indicators Port LEDs, located in the vicinity of their corresponding ports, provide link and operational status. The following figure displays the Port LED location on the Q6 appliance. 1 Screen display 3 WAN port 2 USB ports 4 Ethernet ports... -
Page 17: Appendix B: Parts List
Appendix B Parts List The following parts are included: 1 Rack Mount Ears 4 M2 Screws 2 Power Cable 5 M3 Screws 3 M4 Screws... -
Page 18: Appendix C: Rear Panel
Appendix C Rear Panel This appendix displays the rear panel of all appliances covered by this guide. 1 Fans 4 Power switch 2 HDMI port 5 PSU fan 3 Power cord port... -
Page 19: Appendix D: Regulatory Model Numbers
Appendix D Regulatory Model Numbers This appendix covers the Regulatory Model Number for the appliance in this guide. Table 4: Regulatory Model Numbers and Product Numbers Regulatory Model Number(RMN) Product Number(s) AN2202, CAR-2070-5620-E90 CCA-ETM-Q6... -
Page 20: Appendix E: Taiwan Rohs Information
Appendix E Taiwan RoHS Information This appendix provides Taiwan RoHS information for appliances covered by this guide. For Taiwan BSMI RoHS Table, go to https://www.arista.com/assets/data/pdf/AristaBSMIRoHS.pdf.
