Arista CCA-ETM-Q8 Quick Start Manual

Edge threat management appliance

Advertisement

Quick Links

Quick Start Guide
Edge Threat Management
Appliance
CCA-ETM-Q8
Arista Networks
www.arista.com
DOC-06001-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCA-ETM-Q8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arista CCA-ETM-Q8

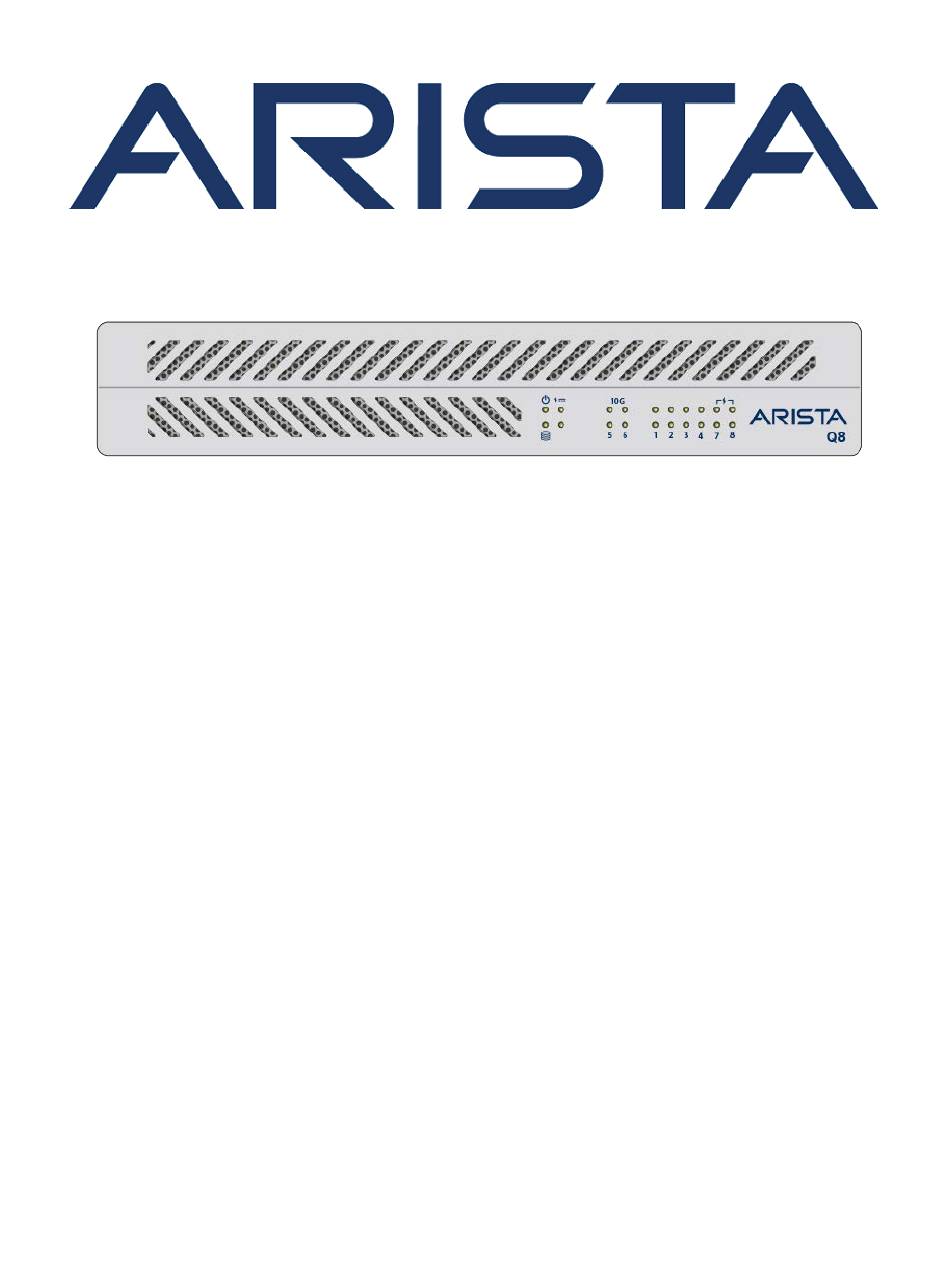

  • Page 1 Quick Start Guide Edge Threat Management Appliance CCA-ETM-Q8 Arista Networks www.arista.com DOC-06001-01...
  • Page 2 The trademarks, logos and service marks ("Marks") displayed in this documentation are the property of Arista Networks in the United States and other countries. Use of the Marks are subject to Arista Network Term of Use Policy, available at http://www.arista.com/en/terms-of-use. Use of marks belonging to other parties is for...
  • Page 3: Table Of Contents

    Contents Contents Chapter 1: Overview................1 1.1 Scope............................1 1.2 Receiving and Inspecting the Equipment................1 1.3 Installation Process.........................2 1.4 Safety Information........................3 1.5 Obtaining Technical Assistance..................... 3 1.6 Specifications.......................... 4 Chapter 2: Preparation................5 2.1 Site Selection..........................5 2.2 Tools and Parts Required for Installation................5 2.3 Electrostatic Discharge (ESD) Precautions................
  • Page 4: Chapter 1: Overview

    Chapter 1 Overview This Quick Start Guide (QSG) describes the CCA-ETM-Q8 appliance. This chapter contains the following topics: • Scope • Receiving and Inspecting the Equipment • Installation Process • Safety Information • Obtaining Technical Assistance • Specifications Scope This guide is intended for properly trained service personnel and technicians who need to install the...
  • Page 5: Installation Process

    Overview Installation Process The following tasks are required to install and use the Appliance: 1. Select and prepare the installation site (Site Selection). 2. Assemble the installation tools listed (Tools and Parts Required for Installation). 3. Install the Appliance (Mounting the Appliance).
  • Page 6: Safety Information

    Refer to the Arista Networks document Safety Information and Translated Safety Warnings available at: https://www.arista.com/en/support/product-documentation. Obtaining Technical Assistance Any customer, partner, reseller, or distributor holding a valid Arista Service Contract can obtain technical support in any of the following ways: •...
  • Page 7: Specifications

    Specifications This section lists the specifications of the CCA-ETM-Q8. Table 1: Appliance Specifications (Dimensions and Weights) Appliance Size (W x D xH) Weight CCA-ETM-Q8 250mm x 252mm x 44mm 2.5 kg Table 2: Appliance Specifications (Operational and Storage) Appliance Operating Temperature,...
  • Page 8: Chapter 2: Preparation

    Chapter 2 Preparation This section describes the initial setup and preparation for installing the CCA-ETM-Q8. This chapters contains the following topics: • Site Selection • Tools and Parts Required for Installation • Electrostatic Discharge (ESD) Precautions Site Selection The following criteria should be considered when selecting a site to install the appliance.
  • Page 9: Electrostatic Discharge (Esd) Precautions

    Electrostatic Discharge (ESD) Precautions Observe these guidelines to avoid ESD damage when installing or servicing the switch. • Assemble or disassemble equipment only in a static-free work area. • Use a conductive work surface (such as an anti-static mat) to dissipate static charge. •...
  • Page 10: Chapter 3: Mounting The Appliance

    Chapter 3 Mounting the Appliance This chapter covers the following topics: • Desktop Installation • Rack Mounting the Appliance Desktop Installation To install the appliance on a desktop, complete the following steps: 1. Attach the rubber feet to the bottom corners of the appliance. 2.
  • Page 11: Rack Mounting The Appliance

    Mounting the Appliance Rack Mounting the Appliance The following topics are covered in this section: • Attaching Mounting Brackets to the Appliance • Installing the Power Adapters • Inserting the Appliance into the Rack To mount the appliance onto a two-post rack, assemble the mounting brackets to the chassis, then attach the brackets to the rack posts.
  • Page 12: Attaching Mounting Brackets To The Appliance

    Mounting the Appliance 3.2.1 Attaching Mounting Brackets to the Appliance This procedure attaches mounting brackets to the appliance. 1. Using three M3 flat head screws and one M4 pan head screw with lock washer for each flange, attach the rack mount flanges to each side of the front of the appliance. The M4 pan head screw with lock washer should be attached in front of the rearmost M3 flat head screw.
  • Page 13: Installing The Power Adapters

    Mounting the Appliance 3.2.2 Installing the Power Adapters Installing the power adapter brackets is required for rack mount installation. The rack mounting brackets must be installed first. The appliance has two power adapters. The 54V power adapter is installed on the left side of the appliance, close to the 54V power input. The 12V power adapter is installed on the right side of the appliance.
  • Page 14: Inserting The Appliance Into The Rack

    Mounting the Appliance Figure 2: CCA-ETM-Q8 12V Power Adapter Mounting 3.2.3 Inserting the Appliance into the Rack This procedure attaches the appliance to the rack. 1. If the mounting brackets and power adapters have not been installed, install them first, as described...
  • Page 15 4. Attach the brackets to the rack posts. Figure 3: Inserting the Appliance into the Rack...
  • Page 16: Chapter 4: Cabling The Appliance

    Chapter 4 Cabling the Appliance For all installations: 1. Plug the 12V power adapter into a power source and connect it to the DC 12V power input on the rear panel. 2. Plug the 54V power adapter into a power source and connect it to the DC 54V power input on the rear panel.
  • Page 17: Chapter 5: Configuring The Appliance

    You can manage your appliance using the Edge Threat Management Dashboard or from the local network. From Edge Threat Management Dashboard 1. Navigate your web browser to http://edge.arista.com/cmd. 2. Log in with your Edge Threat Management Dashboard account, or click Create Account to set up an account.
  • Page 18: Appendix A: Status Indicators

    The following topics are covered in this section: • Front Indicators • Rear Indicators Front Indicators This section describes the front panel LED status of the CCA-ETM-Q8 appliance. Figure 4: CCA-ETM-Q8 Front Indicators 1 Hard drive 4 10 Gbit ports 2 Power 5 1 Gbit LAN ports...
  • Page 19: Appendix B: Parts List

    Each appliance provides an accessory kit that contains parts that are required to install the appliance. This section lists the installation parts contained in the appliance accessory kit. The CCA-ETM-Q8 package includes: 1 54V power adapter (PoE+) 4 12V power adapter...
  • Page 20: Appendix C: Rear Panel

    Appendix C Rear Panel The following image displays the rear panel ports on the CCA-EMT-Q8 appliance and their descriptions. Figure 6: CCA-ETM-Q8 Rear Panel 1 12V 5A connector 5 Micro USB console port 9 10 Gbit SFP+ ports 2 Power on button...
  • Page 21: Appendix D: Regulatory Model Numbers

    Regulatory Model Numbers This appendix lists the Regulatory Model Numbers (RMNs), where applicable, for the product models for the appliances described in this document. Table 4: Regulatory Model Numbers and Product Numbers Regulatory Model Number (RMN) Product Number(s) AN2206, CAD-0263-5801-E91 CCA-ETM-Q8...
  • Page 22: Appendix E: Taiwan Rohs Information

    Appendix E Taiwan RoHS Information This appendix provides Taiwan RoHS information for appliances covered by this guide. For Taiwan BSMI RoHS Table, go to https://www.arista.com/assets/data/pdf/AristaBSMIRoHS.pdf.
