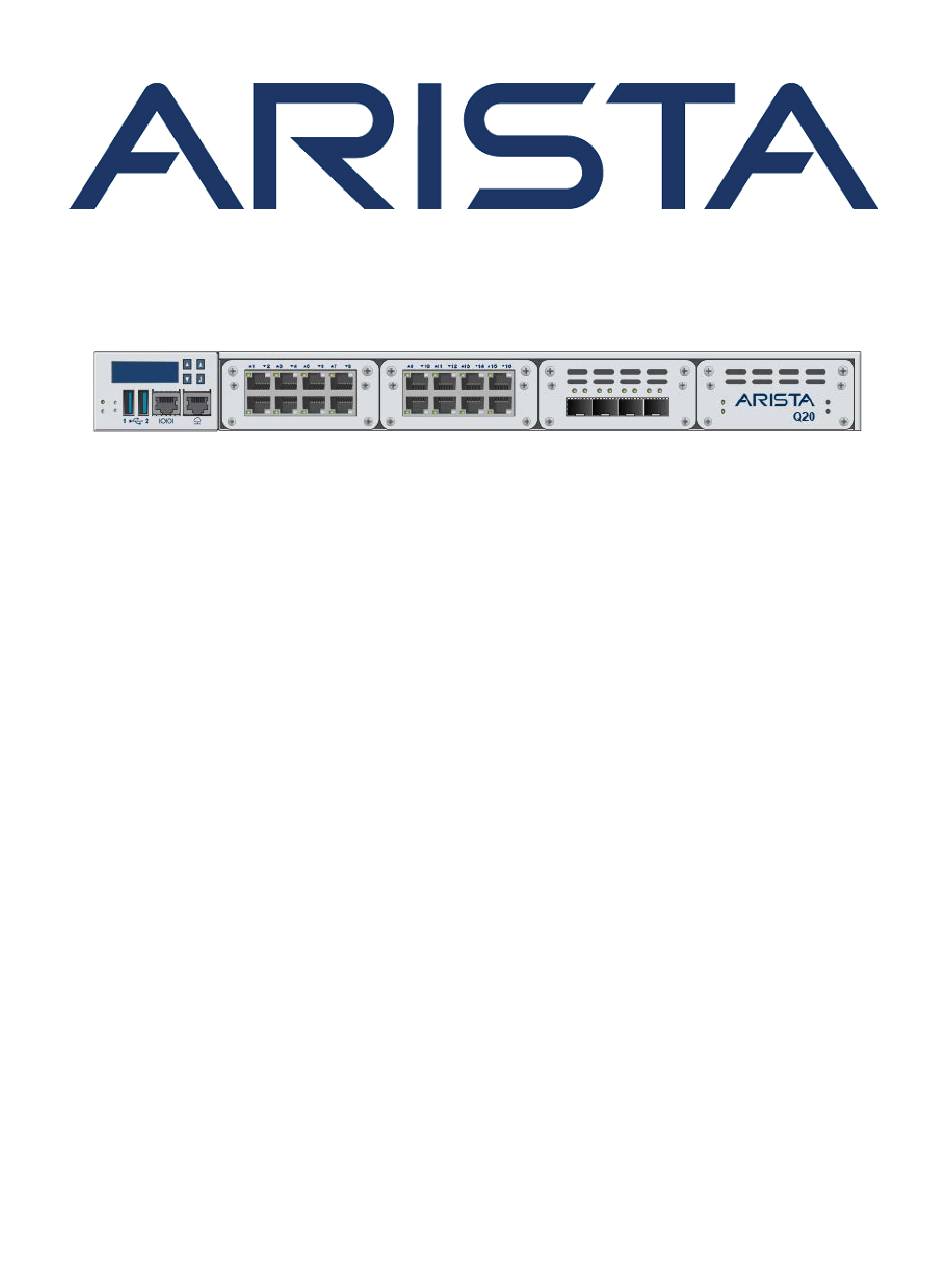

- Page 1 Quick Start Guide Edge Threat Management Appliance CCA-ETM-Q20 Arista Networks www.arista.com DOC-06003-01...
- Page 2 The trademarks, logos and service marks ("Marks") displayed in this documentation are the property of Arista Networks in the United States and other countries. Use of the Marks are subject to Arista Network Term of Use Policy, available at http://www.arista.com/en/terms-of-use. Use of marks belonging to other parties is for...
-
Page 3: Table Of Contents
Contents Contents Chapter 1: Overview................1 1.1 Scope............................1 1.2 Receiving and Inspecting the Equipment................1 1.3 Installation Process.........................1 1.4 Safety Information........................2 1.5 Obtaining Technical Assistance..................... 2 1.6 Specifications.......................... 3 Chapter 2: Preparation................5 2.1 Site Selection..........................5 2.2 Tools and Parts Required for Installation................5 2.3 Electrostatic Discharge (ESD) Precautions................ -
Page 4: Chapter 1: Overview
Scope This guide is intended for properly trained service personnel and technicians who need to install the following Arista appliances: This guide is covering the CCA-ETM-Q20 appliance. Important: Only qualified personnel should install, service, or replace this equipment. Seul le personnel qualifié doit installer, service, ou remplacer cet équipement. -
Page 5: Safety Information
Refer to the Arista Networks document Safety Information and Translated Safety Warnings available at: https://www.arista.com/en/support/product-documentation. Obtaining Technical Assistance Any customer, partner, reseller or distributor holding a valid Arista Service Contract can obtain technical support in any of the following ways: •... -
Page 6: Specifications
Overview Specifications This section lists the specifications of the CCA-ETM-Q20. Table 1: Appliance Specifications (Dimensions and Weights) Appliance Size (W x D x H) Weight CCA-ETM-Q20 438mm x 553mm x 44mm 9.5 kg Table 2: Appliance Specifications (Operational and Storage) -
Page 7: Chapter 2: Preparation
Chapter 2 Preparation This section describes the initial setup and preparation for installing the CCA-ETM-Q20. This chapters contains the following topics: • Site Selection • Tools and Parts Required for Installation • Electrostatic Discharge (ESD) Precautions Site Selection The following criteria should be considered when selecting a site to install the appliance. -
Page 8: Electrostatic Discharge (Esd) Precautions
Accessory kit does not include screws for attaching the appliance to the equipment rack. When installing the appliance into an equipment rack with unthreaded post holes, nuts are also required to secure the appliance to the rack posts. Electrostatic Discharge (ESD) Precautions Observe these guidelines to avoid ESD damage when installing or servicing the appliance. -
Page 9: Chapter 3: Mounting The Appliance
Chapter 3 Mounting the Appliance The appliance is mounted onto a four-post rack by preparing the chassis for mounting, then securing the appliance to the front posts using the mounting brackets, followed by securing it to the rear posts. Four-Post Rack Mount Note: Each chassis side has holes that allow for the attachment of the slide rails. -
Page 10: Rack Mounting The Appliance
Mounting the Appliance Rack Mounting the Appliance 1 Mounting screws 3 Mounting screws 2 Left bracket 4 Right bracket 1. Align the left bracket to the left face plate. 2. Attach the left front mounting bracket using three mounting screws. 3. - Page 11 Mounting the Appliance 1 Back rack post 4 Front rack post 2 Back bracket 5 Front bracket 3 Mounting screws 6 Mounting screws 1. Insert appliance into the racking at the predetermined height within the left side of the rack. 2.
-
Page 12: Chapter 4: Cabling The Appliance
Chapter 4 Cabling the Appliance This procedure is for attaching network and power cables to the appliance. 1. Connect an Ethernet cable from your Internet provider modem or router to the designated Internet port. 2. Connect an Ethernet cable from your management computer or LAN switch to port 1. 3. -
Page 13: Chapter 5: Configuring The Appliance
You can manage your appliance using the Edge Threat Management Dashboard or from the local network. From Edge Threat Management Dashboard 1. Navigate your web browser tohttps://edge.arista.com/cmd. 2. Log in with your Edge Threat Management Dashboard account, or click Create Account to set up an account. -
Page 14: Appendix A: Status Indicators
Appendix A Status Indicators Front Indicators This section describes the front panel LED status of the CCA-ETM-Q20 appliance. Figure 1: CCA-ETM-Q20 Front Status Indicators 1 Power 4 Storage activity 2 Port indicator 5 Storage power 3 LAN port indicators Rear Indicators This section describes the rear panel LED status of the CCA-ETM-Q20 appliance. -
Page 15: Appendix B: Parts List
This section lists the installation parts contained in the appliance accessory kit. 1 Back bracket 4 Power cable 2 Mounting bracket 5 Racking mounting screws 3 Mounting rail 6 Appliance mounting screws The CCA-ETM-Q20 package includes: • Two power cables • Rack mounting hardware • CCA-ETM-Q20 appliance The installation kit provides the following four-post mounting parts: •... -
Page 16: Appendix C: Front Panel
Appendix C Front Panel 1 Reset button 5 Console port 2 LCD controls 6 Internet port 3 LAN ports 7 USB ports 4 SFP+ LAN ports... -
Page 17: Appendix D: Rear Panel
Appendix D Rear Panel The following displays the CCA-ETM-Q20 rear panel. 1 Fans 5 Power supply socket 2 Video out (HDMI) 6 PSU handle 3 Power switch 7 Power supply socket 4 PSU handle 8 Power supply units... -
Page 18: Appendix E: Regulatory Model Numbers
Appendix E Regulatory Model Numbers This appendix lists the Regulatory Model Numbers (RMNs), where applicable, for the product models for the appliances described in this document. Regulatory Model Number (RMN) Product Number(s) AN2204, CAR-4040-5200-E90 CCA-ETM-Q20... -
Page 19: Appendix F: Taiwan Rohs Information
Appendix F Taiwan RoHS Information This appendix provides Taiwan RoHS information for appliances covered by this guide. For Taiwan BSMI RoHS Table, go to https://www.arista.com/assets/data/pdf/AristaBSMIRoHS.pdf.
