IVEK MULTISPENSE 900 Manual page 7

MULTISPENSE 900 W/TOUCHSCREEN CONTROLLER MODULE
FAULT SCREEN
• View Faults
• Clear Faults
• Reference Channels
• Connection Status
27 March, 2015
MAIN SCREEN
• Start
• Stop
• Ready Indicator
• View Parameters
VOLUME & RATE SCREEN
• Start • Volume
• Stop • Disp/Meter Rate
• Direction • Priming Rate
• Mode • Ready Indicator
DRAWBACK SCREEN
• Volume • Dwell
• Rate
• Stall Retries
PARAMS A SCREEN
• Totalizer Functions
• Change Permission
• Prime Duration
• Ready Out Config
PARAMS B SCREEN
• Software Version
• Change Permission
• Serial Number
• Acceleration
(Microspense Only)
EXIT SCREEN
• Exit Software

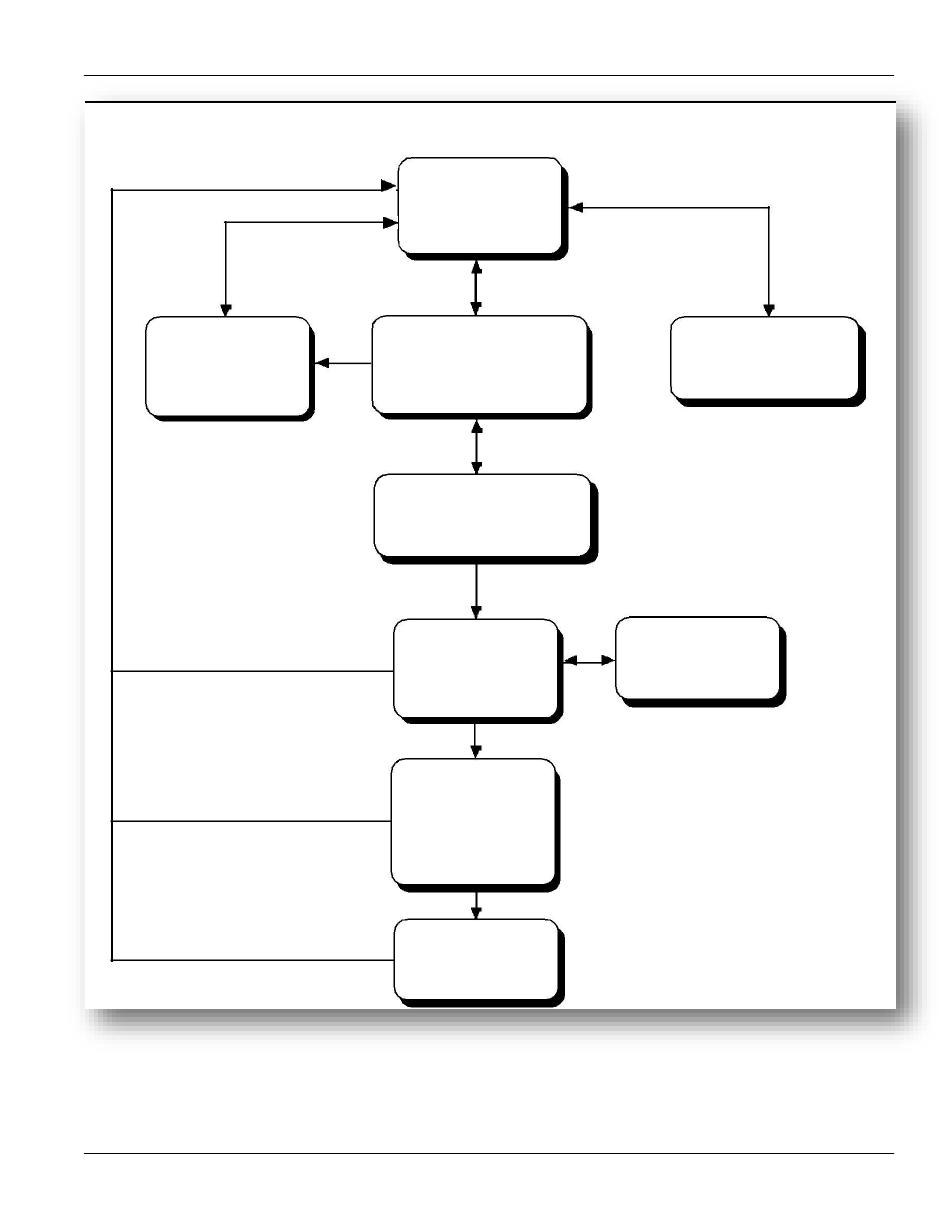

Figure 3.3 Screen Information
IVEK Corp.
CONFIG SCREEN
• View/Edit Configurations
CLEARTOTALIZER
SCREEN
• Clear Totalizers
Page 3-7
P03R009O
