MULTISPENSE 900 W/TOUCHSCREEN CONTROLLER MODULE
3.1.2.6 Motion System Control Interface Type A Connector (Figure 3.2A Item 6 and Figure 3.2B Item 9)
The Motion System Control Interface Type A is an option on this controller. Refer to section 3.4.3 for additional
information.
3.1.2.7 Trigger In Terminal Block (Figure 3.2A Item 7 and Figure 3.2B Item 13)
The Trigger In terminal block is an option on this Controller Module. Refer to section 3.4.4 for additional information.
3.1.2.8 Touchscreen Connector (Figure 3.2A Item 8 and Figure 3.2B Item 10)
The Touchscreen is an option on this controller, but is not covered in this manual. Refer to the Multispense 900 W/
Touchscreen Controller Module manual.
3.1.2.9 Power Entry Module (Figure 3.2A Item 9)
The power entry module contains a receptacle for a standard IEC power cord, a voltage selector switch and main fuse
holder.
1

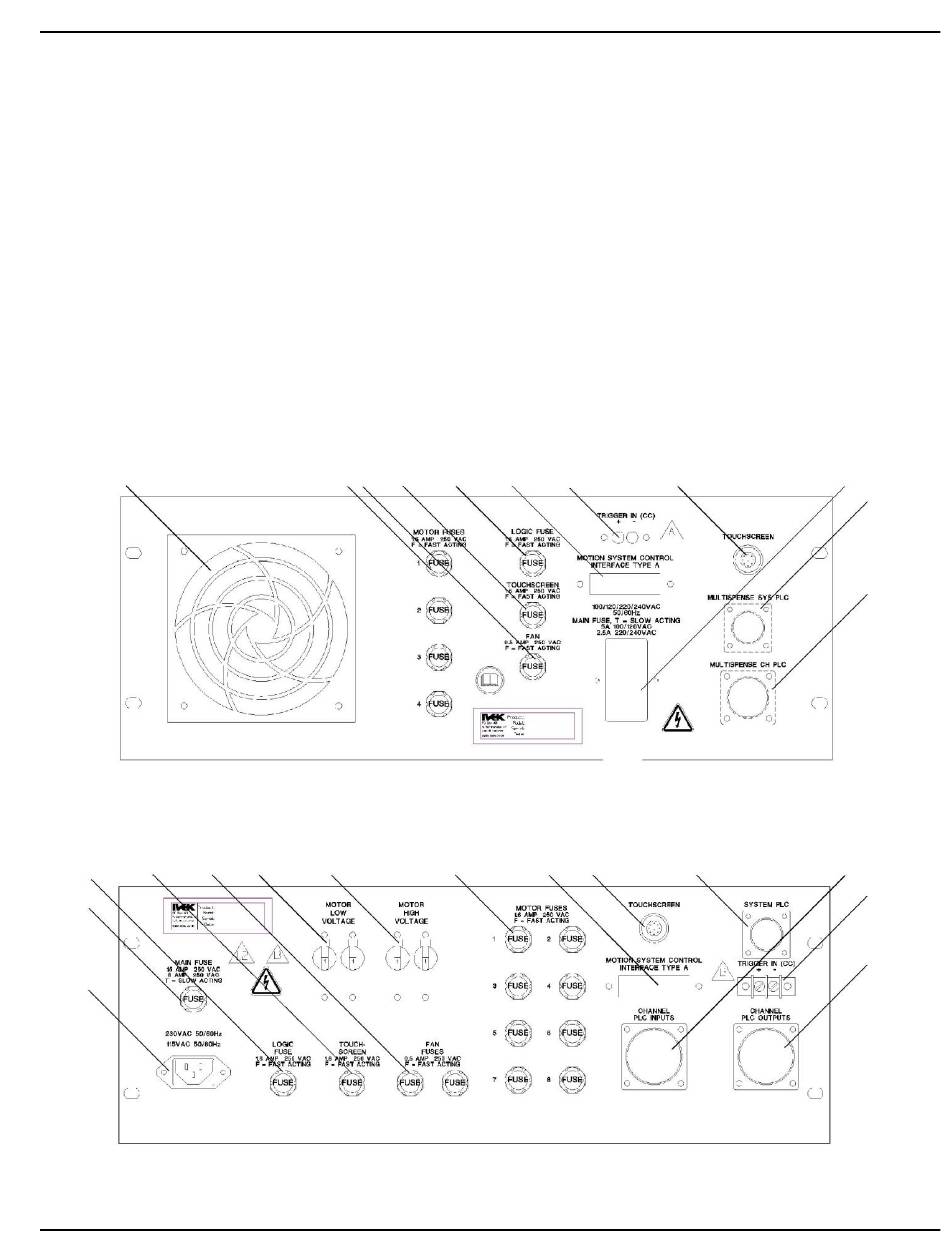

Figure 3.2A Multispense 900 1 - 4 Channel Controller Module Rear Panel
