MULTISPENSE 900 W/TOUCHSCREEN CONTROLLER MODULE
27 March, 2015
Displays the current Volume setting in strokes.
Displays the current Dispense/Meter Rate setting in RPM.
Displays the current Priming Rate setting in RPM.
Displays the current mode (Prime / Dispense / Meter)
Displays the current direction (Forward / Reverse)
Displays the current Drawback Volume setting in strokes.
Displays the current Drawback Rate setting in RPM.
Displays the current Drawback Dwell setting in seconds.
Displays the current configuration (1 - 25 or MODIFIED).
Displays the current permission level.
Starts the current mode of operation.
Stops the current mode of operation.
Indicates the state of the READY output in the PLC Interface.
Switches to the Fault screen. Button changes
to when a channel is faulted.
Switches to the Configuration screen.
Switches to the Volume & Rate screen.

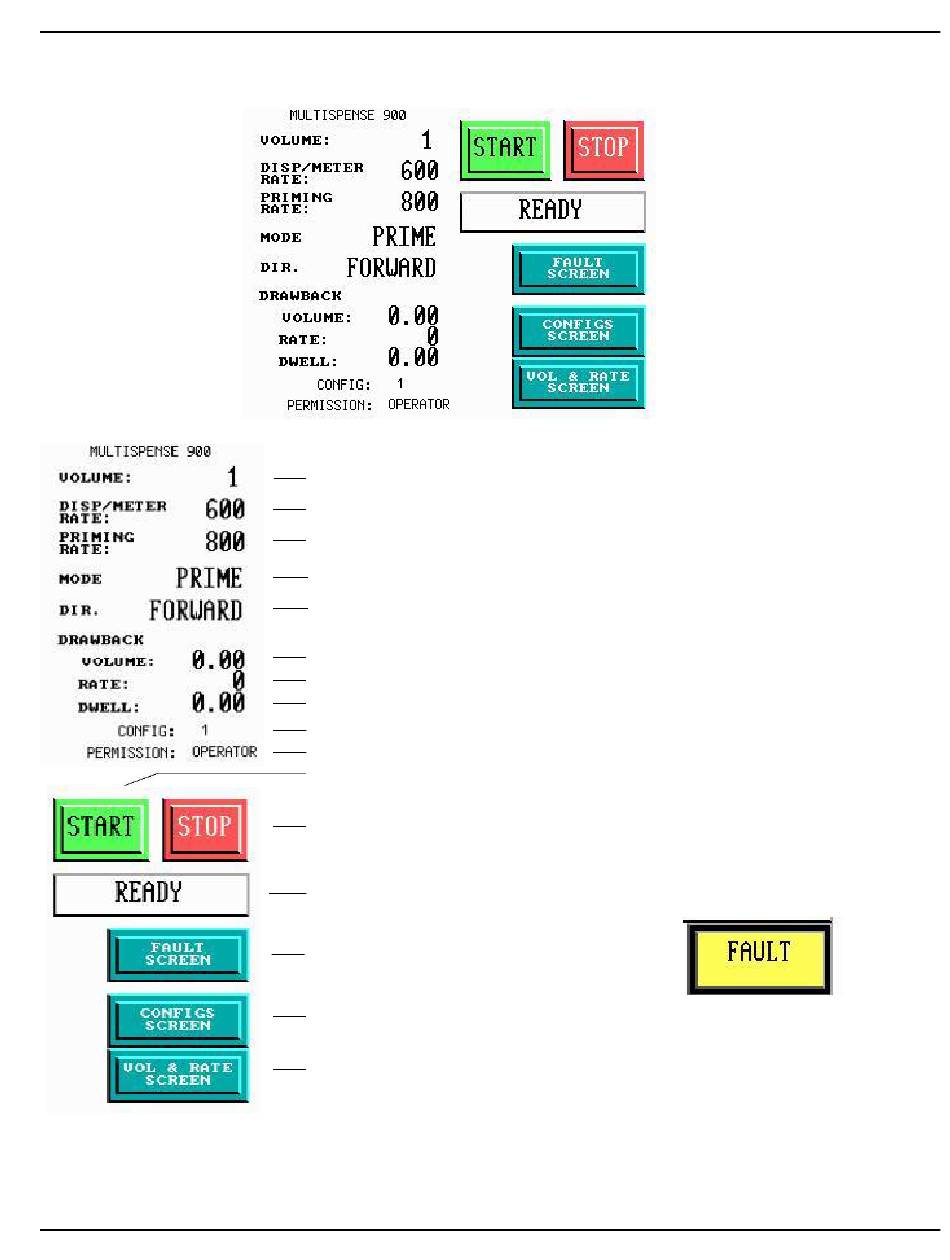

Figure 3.8 Main Screen
IVEK Corp.
Page 3-12
The Main screen
controls the system
and displays the
operating parameters
(See below for a descrip-
tion of each section)
P03R009O
