MULTISPENSE 900 W/TOUCHSCREEN CONTROLLER MODULE
3.
MULTISPENSE 900 W/TOUCHSCREEN CONTROLLER MODULE
3.1
DESCRIPTION
The Multispense 900 W/Touchscreen Controller Module, hereafter referred to as the Controller Module, contains all
the control, monitoring, and interface components for the dispensing operations. The operator controls and interface
connections are located on the front and rear panels.
3.1.1
Front Panel Controls & Indicators (Figure 3.1)
The front panel of the Controller Module is made up of the Touchscreen, and individual front panels of the
Multispense Master Plug-In PCB (Printed Circuit Board), hereafter referred to as the Master Plug-In and Multispense
900 Channel Plug-In PCB(s), hereafter referred to as the Channel Plug-In(s).
3.1.1.1
Touchscreen (Figure 3.1 Item 1)
The touchscreen is the operator interface for controlling the system. Multiple screens are provided for setting and monitoring
system parameters. With a touch of the screen, parameters can be viewed and changed to meet specific requirements.
3.1.1.2
Master Plug-In Front Panel (Figure 3.1 Item 3)
Serial Interface data Indicators (2) - A red LED (Light Emitting Diode) indicates data being received by the Master
Card, a green LED indicates data being transmitted by the Master Plug-In.
3.1.1.3
Channel Plug-In Front Panel (Figure 3.1 Item 4)
Enabled Indicator (5) - (green) illuminates while this channel is enabled for operation.
Disabled Indicator (6) - (red) illuminates while this channel is NOT enabled for operation.
1
Refer to Figure 3.17 for
Touchscreen dimensions
27 March, 2015
3
2

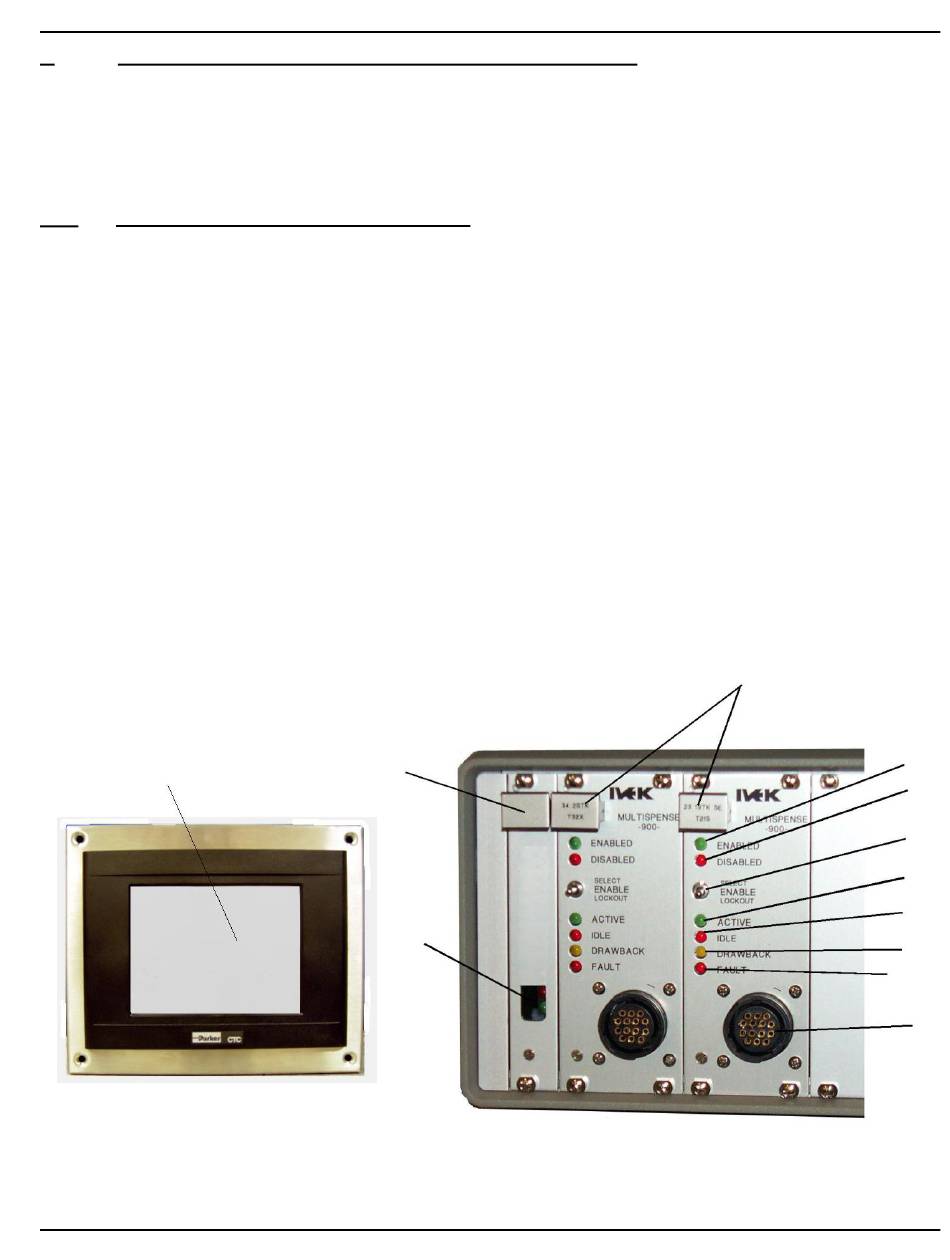

Figure 3.1 Multispense 900 Controller Module Front Panel
IVEK Corp.
Page 3-2
4
5
8
9
10
11
12
P03R009O
6
7
