StarTech.com TB310G2 Quick Start Manual

Thunderbolt 3 to 10GBase-T Ethernet Network Adapter

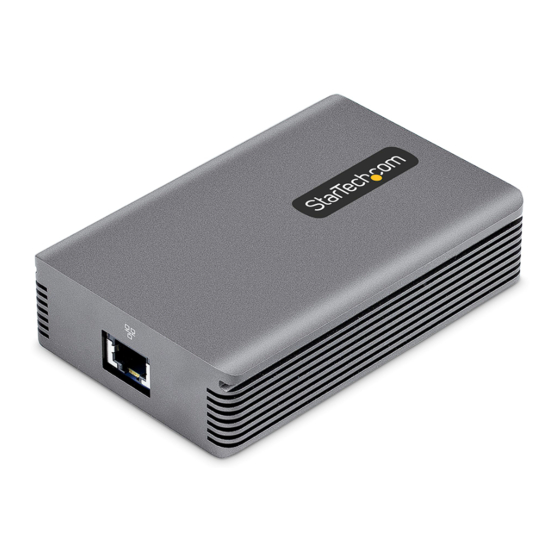

Product Diagram (TB310G2)
Front View
Component
• Connect to a Thunderbolt 3 compatible Host
Thunderbolt 3 Host
1
Port Computer
• Solid Blue = Indicates if the Thunderbolt 3 to
2 LED Indicator Ethernet Network Adapter is linked to the Host
Computer
Rear View
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
2
Function
1
2
*Product may vary from image
Component
1
LED Indicators
1
2
Ethernet Port
Package Contents
• Ethernet Network Adapter x 1
• 27.5 in (70 cm) Thunderbolt 3 Cable x 1
• Quick-Start Guide x 1
Requirements
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
• Thunderbolt 3 compatible host computer
• Ethernet Cable
Operation
Thunderbolt 3 Host
1. Connect a Thunderbolt 3 Cable (included) to the Thunderbolt 3 Host Port on the
front of the Thunderbolt 3 Ethernet Network Adapter and to a Thunderbolt 3
Port on the Host Computer.
Note: Driver installation is not required.
Windows Thunderbolt Approval Pop-Up
When the Thunderbolt 3 Ethernet Network Adapter is connected to a Host
Computer that is running a Windows operating system a pop-up message will appear.
To use the Thunderbolt 3 Ethernet Network Adapter, complete the following:
1. In the New Thunderbolt devices have been connected pop-up message, click OK.
2. In the User Account Control pop-up message, click Yes.
Function
• Left LED Indicator is Link Speed
• Solid Green = 10 Gbps
• Solid Amber =
5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps
• Right LED Indicator is Link Status
• Solid Green = Active link
• Flashing Green = Activity
• Connect an Ethernet Cable
Use Cat6 or better cabling for 10 Gbps speeds
www.startech.com/TB310G2
Quick-Start Guide
Manual Revision: February 2, 2023 11:44 AM
