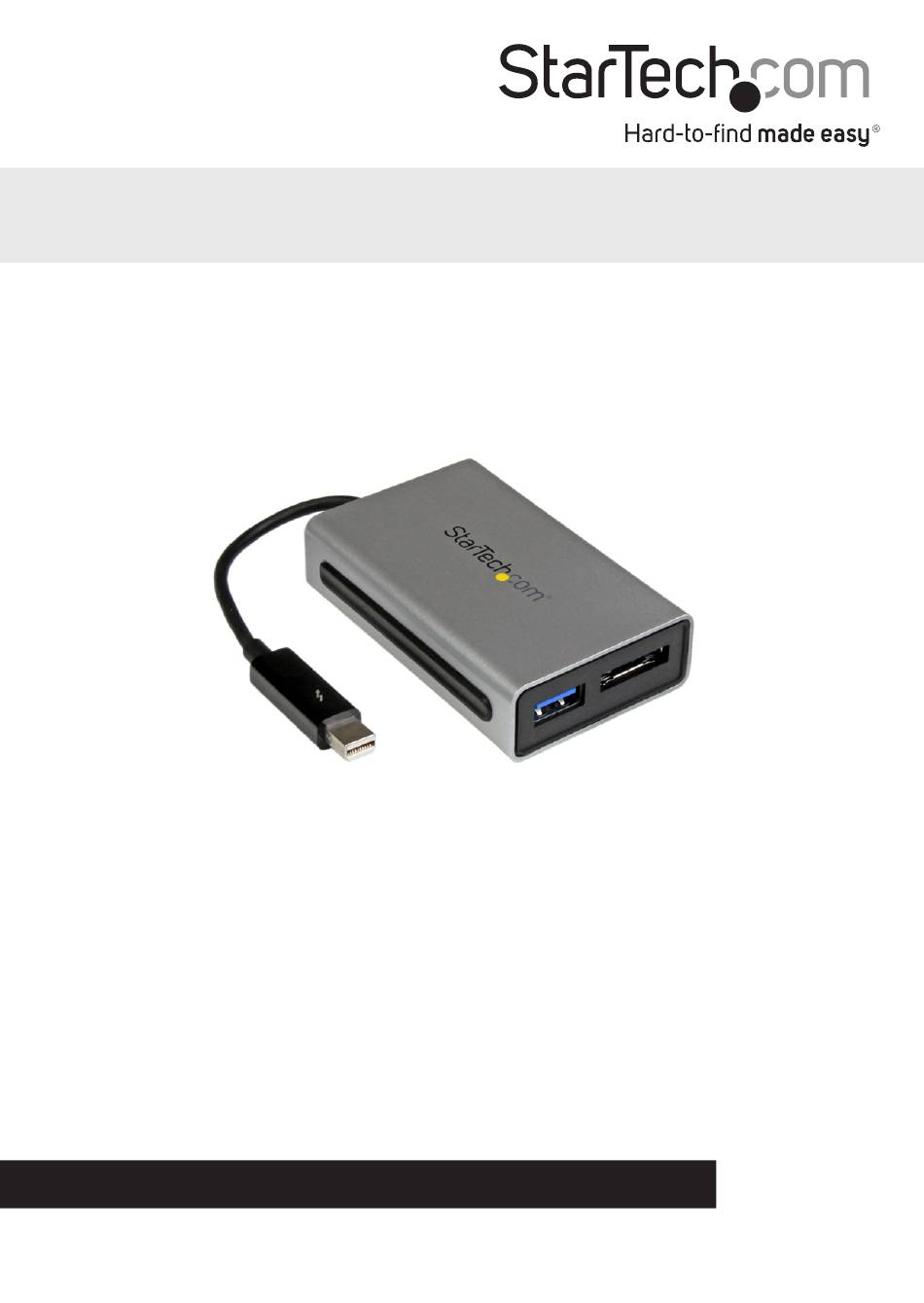

Thunderbolt™ to eSATA + USB 3.0
Adapter
TB2USB3ES
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/27/2014
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com TB2USB3ES
Summary of Contents for StarTech.com TB2USB3ES
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/27/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Verifying Installation ................3 Windows ............................... 3 Mac OS ................................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • 1x Thunderbolt Adapter • 1x Instruction Manual System Requirements • Available Thunderbolt port • Windows® 8 / 8.1 (32/64bit), Mac OS® 10.8.4 and up (Tested up to 10.10) Instruction Manual... -
Page 5: Installation
Installation 1. Connect the attached Thunderbolt cable to your host computer. 2. The operating system should detect the device and automatically install it using native drivers. Note: On Windows systems, you may see the following message requesting permission for the device to connect. Please click on the message, and on the following prompt, select Always Connect from the drop-down to enable the device. -
Page 6: Verifying Installation
Verifying Installation Windows 1. Open the Control Panel and select Device Manager. 2. Expand the “IDE ATA/ATAPI controllers” and “Universal Serial Bus controllers” sections. On a successful install, you should see the following devices in the list with no exclamation points or question marks. Instruction Manual... -
Page 7: Mac Os
Mac OS 1. Open the System Profiler by clicking the Apple symbol in the top left corner, selecting About this Mac, then select System Report. 2. Expand the “Hardware” section and click “Thunderbolt” in the left column. With the adapter connected, you should see the following device in the list. Instruction Manual... -
Page 8: Specifications
Specifications Host Interface Thunderbolt Intel - DSL2210 (Thunderbolt) Chipset ASMedia - ASM1061 (eSATA) ASMedia - ASM1042A (USB 3.0) 1 x Thunderbolt (20-pin) Male Connectors 1 x eSATA (7 pin; Data) Female 1 x USB 3.0 A (9 pin; SuperSpeed) Female 10 Gbps (Thunderbolt) Maximum Data Transfer Rate 5 Gbps (eSATA) -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
