Summary of Contents for Elmi CM-50M

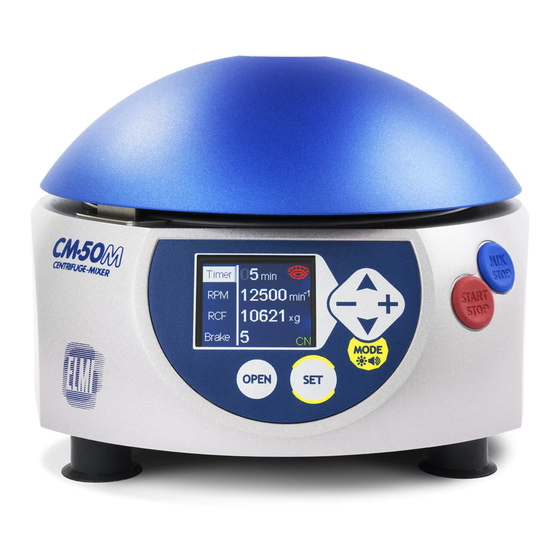

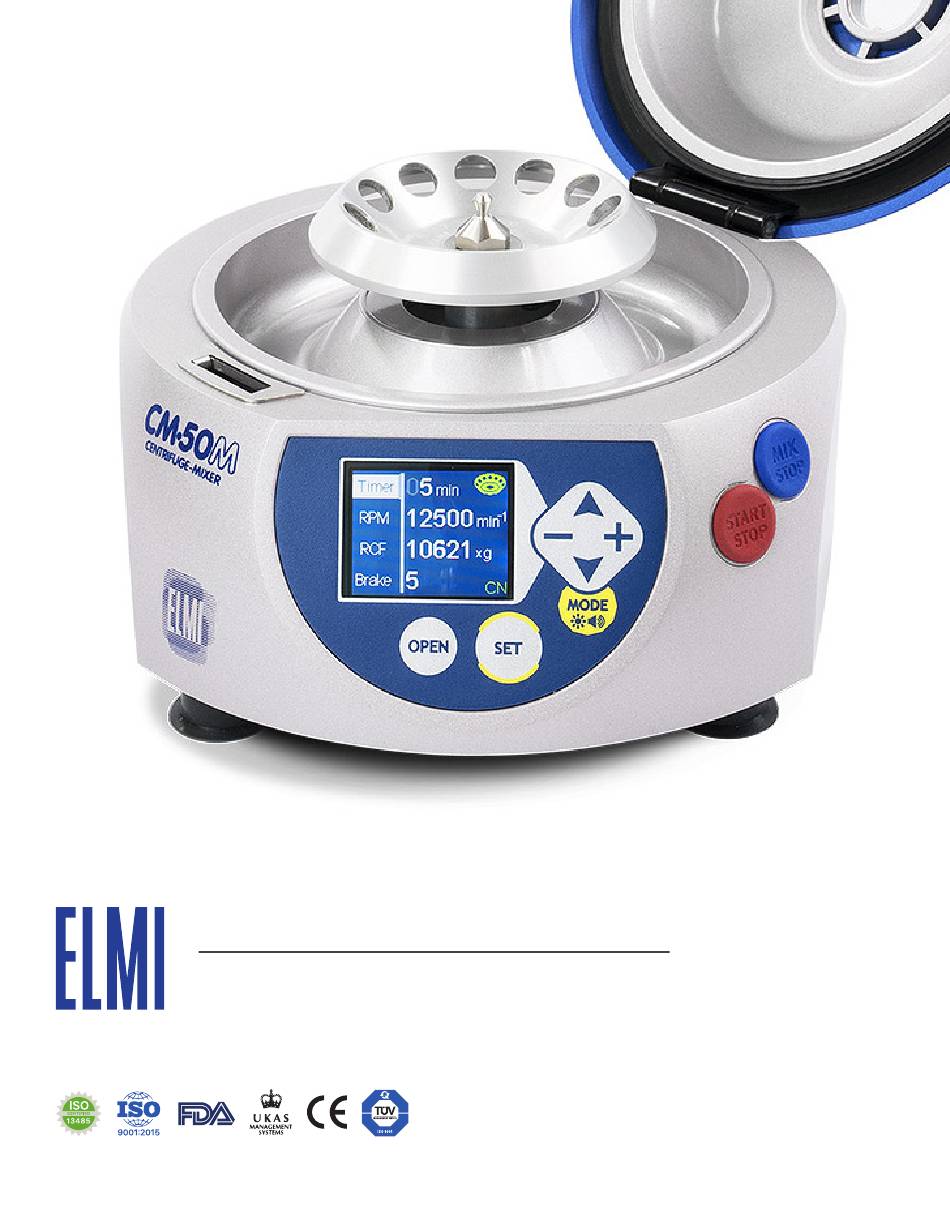

- Page 1 USER MANUAL Centrifuge-Mixer CM-50M elminorthamerica.com...
-
Page 2: Table Of Contents
USER MANUAL Centrifuge-Mixer CM-50M Content Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Operating fugamix in “Miniprep 1”... -
Page 3: General Information
. General information The Fugamix CM-50M can be used with a range of ro- level, mixing level and rotor speed (simultaneous tor options, including for 12 x 1 .5/2ml tubes, as well RPM and RCF) . -
Page 4: General Safety
. Connect the centrifuge to the adapter and the • Open the lid of the CM-50M with the emergen- adapter to the socket . • cy lid opening lever and remove the packaging Thus the light indicators will light up . - Page 5 USER MANUAL Centrifuge-Mixer CM-50M Power plug Network switch Casing Control panel...
- Page 6 USER MANUAL Centrifuge-Mixer CM-50M Rotor assembly and usage Rotor 50 .01 Highspeed rotor 50 .01 for 12 test tubes with aerodynamic, hermetic lid . Maximal rotation speed 15 000 RPM . Maximal centrifugation force 15 294 RCF . 5 braking levels .
-
Page 7: Control Panel
USER MANUAL Centrifuge-Mixer CM-50M Control panel Control keys “Custom” mode view and Lid opening . Mode selection . configuration. Up and Down menu scroll Start/stop and custom Mixer start/stop . and parameter change . program launch . -
Page 8: Additional Commands Of The Buttons
USER MANUAL Centrifuge-Mixer CM-50M Additional commands of the buttons By pressing and holding down “MODE” for 3 sec- brightness, beeper volume and more . onds you enter “Options” menu to adjust screen Use “START/STOP” and “MIX/STOP” buttons to “Mixer” modes swiftly . One single click takes to the switch between centrifugation “CN”... - Page 9 USER MANUAL Centrifuge-Mixer CM-50M Operating centrifuge with a rotor 50.01 Automatic rotor recognition dis- When rotor 50 .01 is installed sys- Rotor icon also has a color code . plays an icon of a rotor currently tem will automatically reprogram...
- Page 10 USER MANUAL Centrifuge-Mixer CM-50M Operating centrifuge with rotors 50.02 and 50.03 Automatic rotor recognition dis- When rotor 50 .02/50 .03 is in- Rotor icon also has a color code . plays an icon of a rotor currently stalled system will automatically...
-
Page 11: Operating Fugamix In "Sp" Mode
USER MANUAL Centrifuge-Mixer CM-50M Operating fugamix in “SP” mode Sample preparation is a programmable sequence small volumes of reagents and collect them on the of mixing and spin down that allows effectively mix bottom of a test tube . When all the setting are made, When timer is done operation “Timer”... -
Page 12: Understanding The Interface
USER MANUAL Centrifuge-Mixer CM-50M Operating fugamix in “Custom” mode Understanding the interface Custom mode is a step by step program with 9 inde- pendently programmable steps F1-F9 . Understanding the color code for program steps. Yellow field: selection marker. This step is currently selected for editing or running . -
Page 13: Creating A Program
USER MANUAL Centrifuge-Mixer CM-50M Operating fugamix in “Custom” mode Creating a program Find mode “Custom” in a mode list by pressing In order to start programming steps of the program “MODE” button . press “SET” . When the first F1 step editing is finished press Cell editing screen will open up . -
Page 14: Running A Program
USER MANUAL Centrifuge-Mixer CM-50M Operating fugamix in “Custom” mode Running a program Press START/STOP to run the program . Selector is automatically placed at the beginning of the program to the fist step F1 . To proceed to step two F2 press START/STOP . -
Page 15: Operating Fugamix In "Mixer" Mode
USER MANUAL Centrifuge-Mixer CM-50M Operating fugamix in “Mixer” mode Mixer mode is a fully functional vortexer . Easy to set vibration speed from 1 to 12 . Settings adjustments are made using the “+/- up/ To run vortexing just press “MIX/STOP” button . -
Page 16: Error Codes And Solutions
USER MANUAL Centrifuge-Mixer CM-50M Error codes and solutions Error code Cause Solution Check connection of the power cable . No main power connection . Check if the power supply adapter is func- Power failure tioning . Close and press on the lid till you hear a Centrifuge lid is left open . -
Page 17: To" Menu
USER MANUAL Centrifuge-Mixer CM-50M Restoring factory settings using special “TO” menu When in “CN” mode turn the Press and hold down both Centrifuge will enter to a spe- centrifuge off by clicking the buttons (-) and (+) . cial service menu “TO” . -
Page 18: Safety Features
USER MANUAL Centrifuge-Mixer CM-50M Safety features • Service personnel are prohibited to: Move the device during centrifugation . • • Plug the devie in to a power outlet with config- Run the unit without rotor aerodynamic lid or uration that differs from the power adapters housing . -
Page 19: Certificate Of Approval
USER MANUAL Centrifuge-Mixer CM-50M Certificate of approval Fugamix CM-50M___ __________________________________________ has been inspected for the technical conditions Quality control person _____________________________ and meets all regulations necessary for this class (name) (signature) of device . Date of manufacture ______________________________ PLACE FOR STAMP... - Page 20 Phone: (805) 375-0060 (371) 6755-8743 3483 Old Conejo Rd ., STE 206 21-133 Aizkraukles Str ., Riga LV-1006 Newbury Park, CA 91320 Fax: (+371) 6755 1934 info@elminorthamerica .com E-mail: info@elmi-tech .com elminorthamerica.com www.elmi-tech.com © ELMI North America, Inc . 2021...
