Summary of Contents for Elmi CM-50

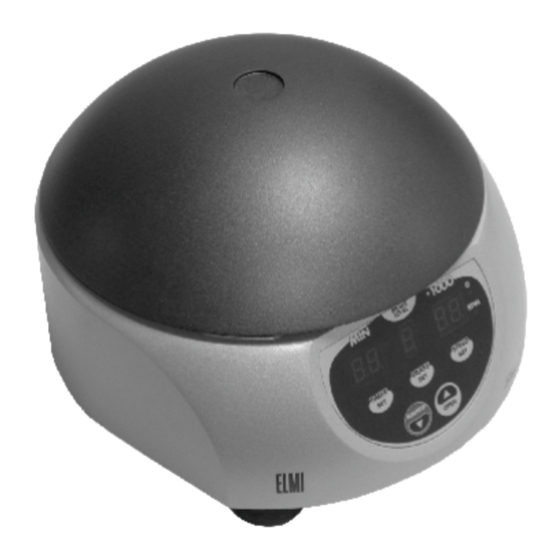

- Page 1 ISO 9001:2008 Centrifuge CM-50 User’s manual...
-
Page 2: Table Of Contents
Contents Page Contents............................1 Introduction..........................2 Technical specifications......................2 Delivery package........................2 Applied rotor..........................3 Rotor assembly and usage......................3 Preparation to work........................4 Control description........................4 Operation...........................5 Comparison table of RPM to RCF and vice versa................6 Troubleshooting.........................7 Emergency opening of centrifuge lid...................7 Safety precautions........................8 Disinfection and cleaning......................8 Transportation and storage......................8 Warranty statements........................8 Certificate of approval........................9... -
Page 3: Introduction
Introduction Dear users! Centrifuge CM-50 is easy to use and reliable in operation. We ask you to carefully read the user manual and observe all the requirements of the maintenance and operation this will ensure a long and flawless exploitation of the device. -
Page 4: Applied Rotor
Rotor assembly and usage Applied rotor Highspeed rotor 50.01 for 12 test tubes with aerodynamic, hermetic lid. Maximal rotation speed 15 000 rpm. Maximal centrifugation force 15 000 rcf. 5 braking levels. PUSH mode is valid. Rotor assembly and usage Assembly: put the rotor on the axis, note that the pins of the axis must get into the grooves of the rotor, then tighten the rotor nut with special key. -
Page 5: Preparation To Work
Control description Preparation to work · Unpack the centrifuge. · Inspect the appearance of the device, the adapter and the power cord for damage. · Open the lid of the centrifuge with the emergency lid opening lever and remove the packaging material (see emergency opening of the centrifuge lid pg.7). -
Page 6: Operation
Operation Operation Settings and adjustments of the parameters of the centrifuge are made on the turned on device with opened or closed lid. Do not forget to use the aerodynamic, magnetic lid with the rotor. During operation parameter adjustments are not possible. 1. -
Page 7: Comparison Table Of Rpm To Rcf And Vice Versa
Operation Comparison table of rounds per minute (RPM) to relative centrifugal force (RCF) and vice versa... -
Page 8: Troubleshooting
Troubleshooting Error code table Error Cause Solution No display. No main power connection. Plug in mains cable on both sides/ Power failure Check mains fuse of the building. Er_OP Lid not closed Close and press on the lid till you hear a click. -
Page 9: Safety Precautions
General information Safety features Service personnel are prohibited to: · Plug the devie in to a power outlet with configuration that differs from the power adapters configuration. · Use the device with damaged adapter, power cord, rotor aerodynamic lid or housing. ·... -
Page 10: Certificate Of Approval
Date of manufacture_________________________________. Place for stamp. Certificate of sale Organization _______________________________________________. Address __________________________________________________. Phone____________________________________________________. Vendor ___________________________________________________. (name) (signature) Date of sale ___________________. Manufacturers' address. 21-136 Aizkraukles Str., Riga LV-1006 Tel: (+371) 6755 8743 Fax: (+371) 6755 1934 E-mail: info@elmi-tech.com WWW: www.elmi-tech.com...
