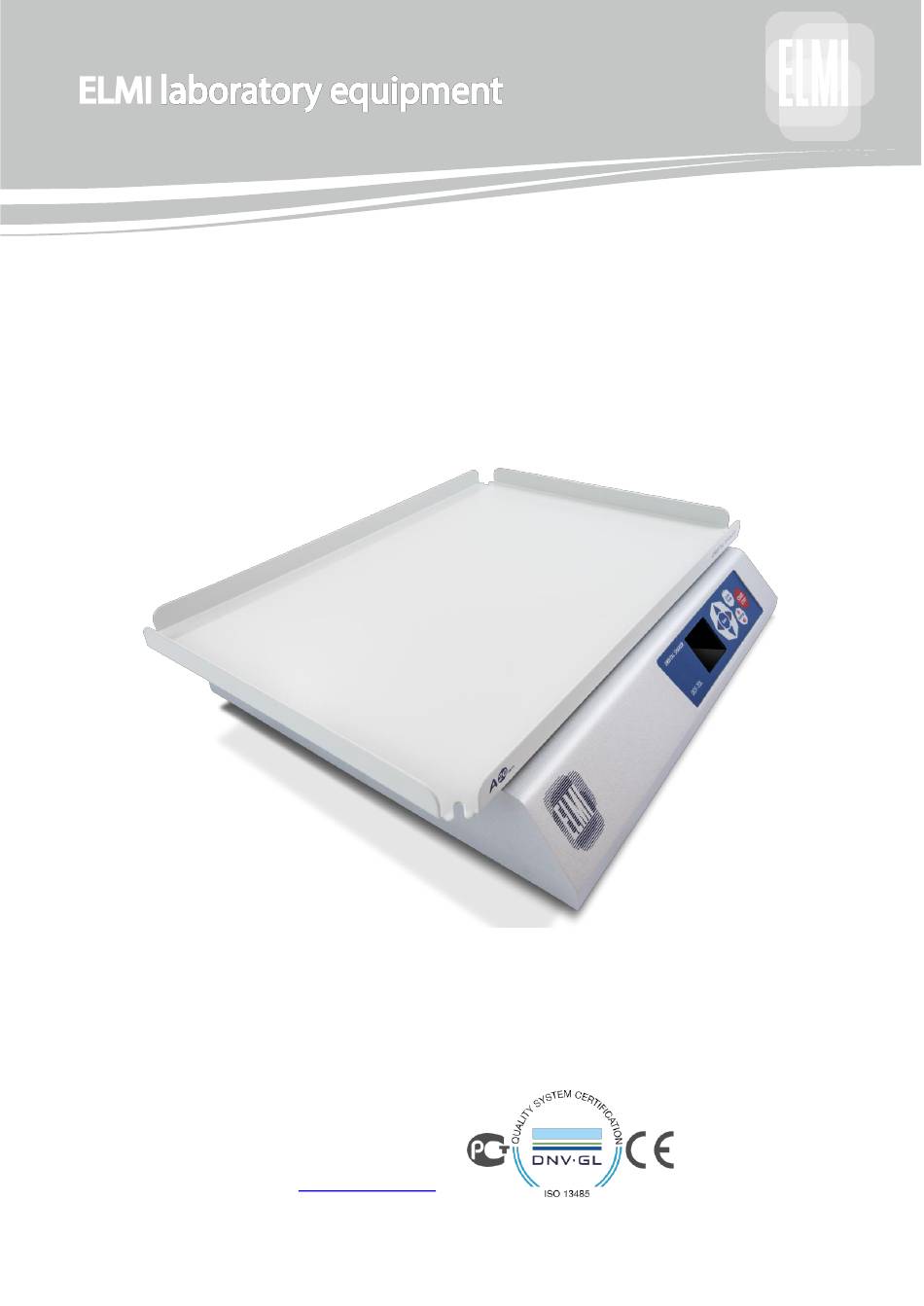

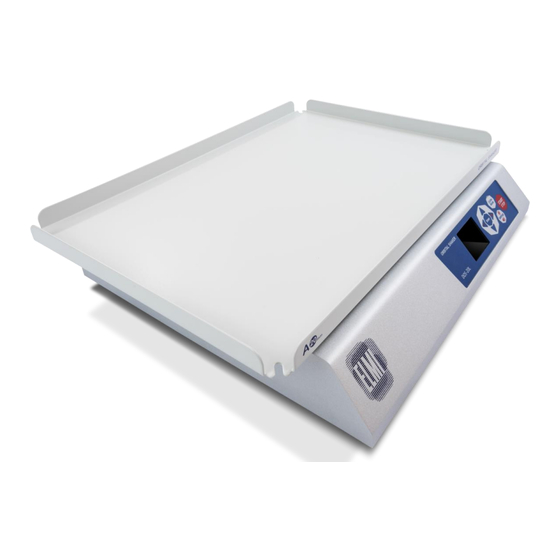

- Page 1 User manual Digital orbital shaker DOS-20L ELMI Ltd. 21-133 Aizkraukles Str. Riga, LV-1006, Latvia T.: +371 67558743 T.: +371 67551934 info@elmi-tech.com W: www.elmi-tech.com...
-
Page 2: Table Of Contents
Page Content ..........................1 Introduction ..........................2 Technical specifications ......................2 Delivery package ........................2 Safety ............................3 Preparation to use ........................3 The device ..........................4 Control description ........................5 Using the device (main menu) ....................6 Orbital rotation mode ........................ 7 Auto reverse mode ........................ -
Page 3: Introduction
Congratulations, you have acquired an ELMI shaker - product of advanced technology and high quality! DOS-20L shaker is easy to use and reliable in operation. We ask you to carefully read the user manual and observe all maintenance and operation requirements, as this will ensure long and flawless use of the device. -
Page 4: Safety
General safety • Use only as directed in the operating instructions provided. • The unit should not be used if it has encountered a physical shock or has been dropped. • The unit must be stored and transported in a horizontal position (see package label). •... - Page 5 1 - Network switch 2 - Power plug 3 - Working platform 4 - Casing 5 - Control panel...
-
Page 6: Control Description
Control panel Up and down navigation keys Left, right navigation keys and increasing, decreasing parameter value keys Entering and exiting key in programming mode to set the step parameter Start/Stop key Setting key to manage the interface of device Entering and exiting key to cycle programming mode... -
Page 7: Using The Device (Main Menu)
Main menu In the main menu you can choose and set the needed working mode. Choosing the working mode The shaker has 4 working modes: 1) Orbital rotation 2) Auto reverse 3) Reciprocal 4) Vibration To choose a mode go to the lowest level of the main menu and select the desired mode using the right or left navigation keys. -
Page 8: Orbital Rotation Mode
Orbital rotation mode Orbital rotation - clockwise classic platform motion mode with adjustable speed and time parameters. mode parameters: TIMER: 1 minute - 99:59 minutes - continuous mode. PRM: 15 - 300. Auto reverse mode Auto reverse mode - platform orbital motion mode with set and equal numbers of clockwise and counter-clockwise turns. -
Page 9: Reciprocal Mode
Reciprocal mode Reciprocal mode - provides changing direction motion with the choice of rotation angle of the platform, at a predetermined RPM and operating time. Options: TIMER: 1 minute - 99.59 minutes - continuos mode. RPM: 07 - 20. Angle: 10 ° - 360 ° Vibration mode Vibration mode - reciprocating type of movement of the platform imitating shake. -
Page 10: Programming Menu
Programming menu You can create a custom program using the programming menu. Create multiple steps to combine the various shaker working modes. To enter and exit the programming menu use the “Cycles mode” key. Creating program program step working mode type indicator number of cycles total program time You can set the number of repeat cycles on the bottom line of... - Page 11 Example of custom program Cycles: 1 Total timer: 000:08:00 Enter the Cycle programming menu Select the 1st step and press “ENTER” key. 1.1 Go to the step menu’s bottom line, select orbital rotation mode; set the time for 5 minutes, RPM to 100 and press “ENTER”. Select the 2nd step and press “ENTER”...
-
Page 12: Additional Modes
Simplified menu If you wish to use the device just as an orbital shaker and other modes are not needed, you can enable the simplified menu by holding the “PROGRAM” key and switching the network switch off and on again. To return to the advanced menu, repeat the operation. -
Page 13: Disinfection And Cleaning
Disinfection and cleaning Shaker and accessories must be cleaned once a week to avoid corrosion and changes to material. Disconnect the device from mains power supply and clean it separately. The platform, accessories and exterior of the shaker should be cleaned with a moist cloth. Only use neutral agents to clean these parts. -
Page 14: Certificate Of Approval
Certificate of approval Shaker DOS-20L N has been inspected for the technical conditions and meets all regulations necessary for this class of device. Quality control person (name) (signature) Date of manufacture Place for stamp. Certificate of sale Organization Address Phone... - Page 15 ELMI Ltd. Video instruction is available! 21-133 Aizkraukles Str. Riga, LV-1006, Latvia youtube.com/elmimedia/videos T: +371 6755 8743 T: +371 6755 1934 E: info@elmi-tech.com W: www.elmi-tech.com...
