User manual
Version 110118

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM-50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elmi CM-50

Summary of Contents for Elmi CM-50

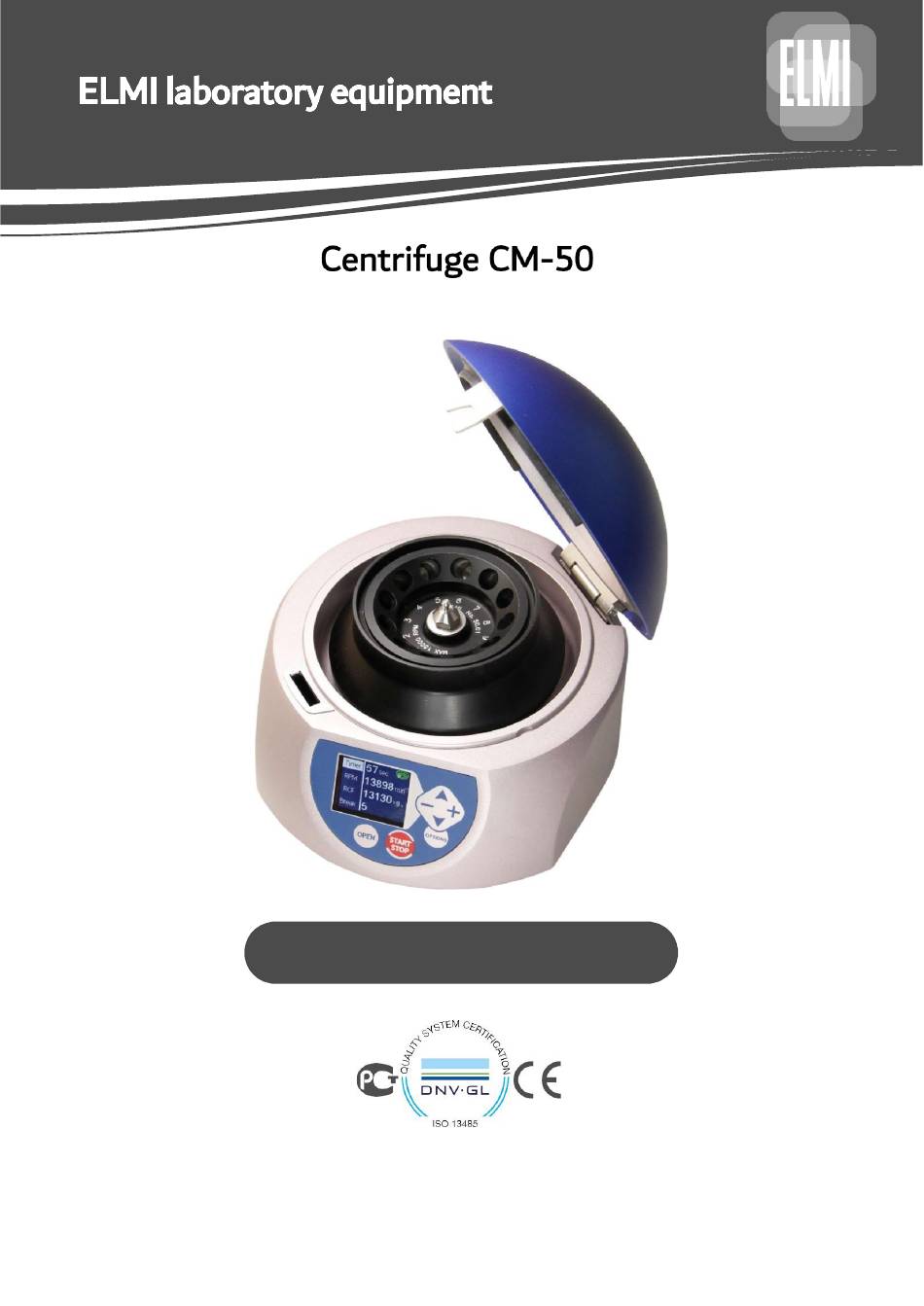

  • Page 1 User manual Version 110118...

  • Page 3: Table Of Contents

    Page Contents........................... 1 Introduction ..........................2 Technical specifications ......................2 Delivery package ........................2 Getting started ......................... 3 Rotor 50.01 ..........................4 Rotor assembly and usage ....................... 4 Understanding controls ......................5 Troubleshooting: error codes ....................7 Restoring factory default settings using ''TO'' menu ..............8 Safety precautions ........................

  • Page 4: Introduction

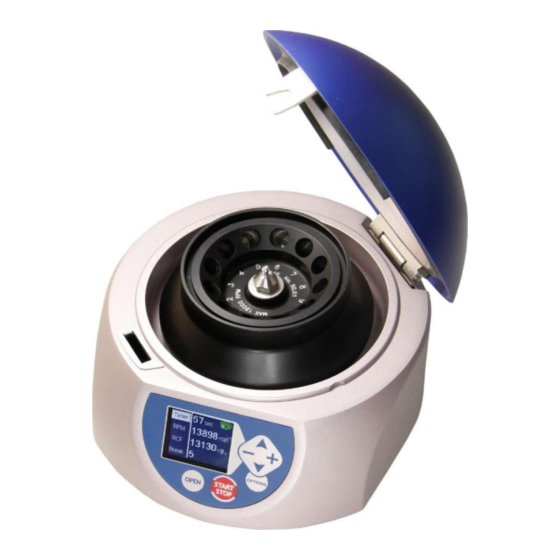

    Dear users! Centrifuge CM-50 is easy to use and reliable in operation. We ask you to carefully read the user manual and follow the instructions for proper operation and maintenance of the CM- 50. This will insure excellent results and enduring performance.

  • Page 5: Getting Started

    • Inspect the appearance of the device, the adapter and the power cord for damage. • Open the lid of the CM-50 with the emergency lid opening lever and remove the packaging material (see emergency opening of the centrifuge lid p.7).

  • Page 6: Rotor 50.01

    Rotor 50.01 Highspeed rotor 5 0.01 for 12 test tubes with aerodynamic, hermetic lid. Maximal rotation speed 15 000 RPM. Maximal centrifugation force 15 294 RCF. Applied test tubes: 1) 1.5-2 ml 2) 0.5 ml with adapters 3) 0.2 ml with adapters Rotor assembly and usage A ssembly: put the rotor on the shaft first and then tighten the nut with a provided hand driven key.

  • Page 7: Understanding Controls

    Understanding controls Adjustable parameters Parameter values Timer 15000 15294 BRAKE Fig.1 Control panel Start/stop centrifugation Lid opening Up and Down menu scroll and parameter change Entering options menu Bright. By pressing and holding down ''OPTIONS'' for 3 seconds you enter Sound options menu to adjust screen brightness, beeper volume and Sleep...
  • Page 8 Operating centrifuge Settings adjustments are made using the ''+/- up/down'' keyboard. Parameters can only be change while the centrifuge is not running. Timer Short run 15000 Rotor icon has a color code. 15294 - Green color means that the lid is opened. BRAKE - Red color means the lid is closed and you can now run the centrifuge.

  • Page 9: Troubleshooting: Error Codes

    Error codes and solutions Error code Cause Solution Check connection of the power cable. No main power connection. “BLACK Check if the power supply adapter is SCREEN” functioning. Power failure Centrifuge lid is left open. Close and press on the lid till you hear a click.

  • Page 10: Restoring Factory Default Settings Using ''To'' Menu

    Restoring factory settings using special ''TO'' menu For service specialists only! Timer Short run 15000 When in ''CN'' mode turn the centrifuge off by clicking the main power switch to ''off'' position. 15294 BRAKE Press and hold down both buttons (-) and (+). While holding down the buttons click the power switch to ''on'' position.

  • Page 11: Safety Precautions

    Safety features • Do not plug the device in to a power outlet with configuration that differs from the power adapters configuration. • Do not use the device with damaged adapter, power cord, rotor aerodynamic lid or housing. • Do not move the device during centrifugation. •...

  • Page 12: Disinfection And Cleaning

    Disinfection and cleaning Before you start disinfection or cleaning make sure the power adapter is unplugged. It is recommended to perform cleaning with water and universal washing liquids. Afterwards the machine should be carefully dried. Do not let the water get inside the centrifuge. Transportation and storage To ensure safety during the transportation, transported equipment should be packed in the original manufacturers packaging or similar packaging substitute.

  • Page 13: Certificate Of Approval

    Certificate of approval Centrifuge CM-50 has been inspected for the technical conditions and meets all regulations necessary for such class of device. Quality control person (name) (signature) Date of manufacture Place for stamp. Certificate of sale Organization Address Phone Vendor...
  • Page 14 ELMI Ltd. 21-136 Aizkraukles Str. Riga, LV-1006, Latvia T: +371 6755 8743 T: +371 6755 1934 E: info@elmi-tech.com...
