2. INSTALLATION

2.1 Clearances & Service Access
Refer to Specification Sheet supplied for minimum
clearances. If multiple units are to be placed side-by-
side then allow at least 2m between coil faces.
Filter slides are fitted within the unit. Access to the filter
access door should be considered when designing
return and supply air ductwork.
2.2 Mounting
The unit should be fastened to a firm flat horizontal
base using the holes supplied in the mounting
channels. When the unit is being installed on a roof it is
recommended that the unit is installed on a substantial
structure with vibration isolating pads or mounts. If
placed on the ground or concrete pad, use rubber pads
or mounts to give 20mm min. ground clearance.
Flexible duct connections are recommended between
the supply and return ducts and the unit.
Installation & Maintenance
Page

1. GENERAL

Temperzone OPA Outdoor Air Cooled Packaged units.
Follow these instructions to ensure the optimum
performance, reliability and durability.
Units must be installed in accordance with all national and
regional regulations and bylaws. National Health and Safety
regulations must be followed to avoid personal injuries.
The appropriate local permits must be acquired and
adhered to.
Local regulations on maximum boundary noise need to
be considered when positioning the unit.
The accompanying 'R32 Handling Ducted Packaged Units'
pamphlet forms part of these Installation & Maintenance
instructions.
! WARNING
These units use R32 refrigerant (Class A2L) which is
mildly flammable.
The system shall be installed, operated and stored in a well
ventilated space. If the refrigerant gas comes into contact
with fire, a poisonous gas may occur. Be aware that R32
does not contain an odour.
If indoors, the appliance shall be stored in a room away from
continuously operating sources known to cause ignition of
R32 refrigerant (for example an operating gas appliance or
operating electric heater)
Unit is shipped with plastic wedges installed under the
compressors. Ensure these wedges are removed from
the compressor feet prior to starting the unit
(not required for operation).

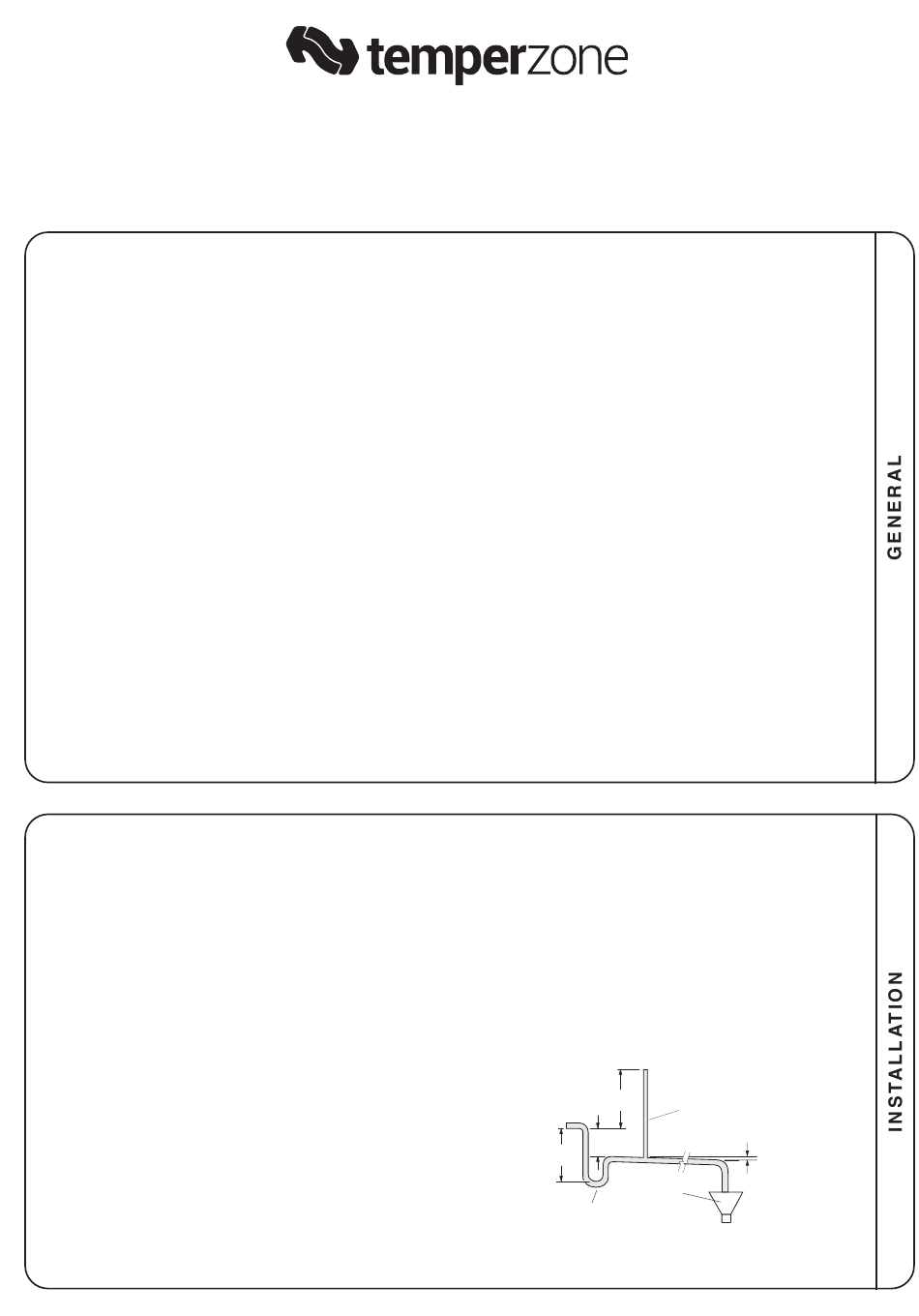

2.3 Condensate Drains
The condensate drains should be 'U' trapped outside
the unit. The traps should have a vertical height of at
least 100 mm. The drain lines should have a slope of at
least 1 in 50 and must not be piped to a level above the
unit drain pipe.
100 mm
APPROX.
100 mm
MINIMUM
200 mm
APPROX.
'U' TRAP
VENT PIPE
FOR LONG
CONDENSATE
DRAIN RUNS
MINIMUM
SLOPE
20 mm PER m
(1 IN 50)
OPEN
DRAIN
