GAPOSA XQ40 Manual

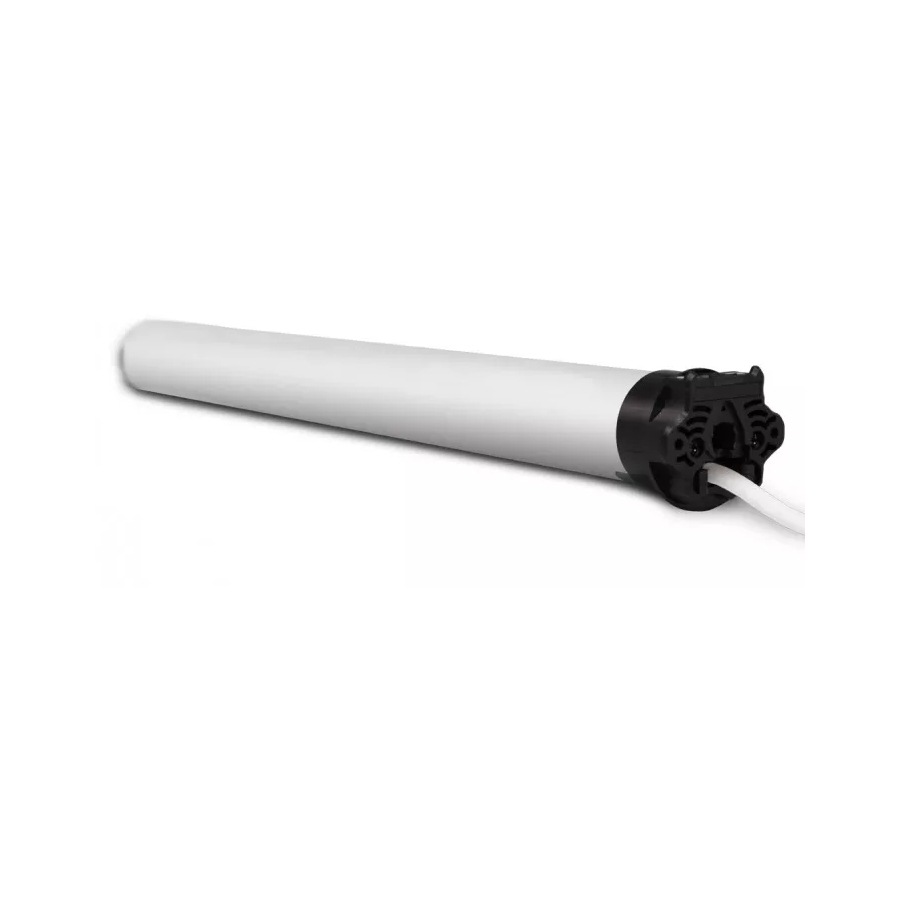

Tubular motors with encoder electronic limits
Hide thumbs Also See for XQ40:

Advertisement

Quick Links

Download this manual
TUBULAR MOTORS WITH ENCODER
ELECTRONIC LIMITS
E
Made in Italy

Advertisement

loading
Need help?

Need help?

Do you have a question about the XQ40 and is the answer not in the manual?

Questions and answers

Related Manuals for GAPOSA XQ40

Summary of Contents for GAPOSA XQ40

  • Page 1 TUBULAR MOTORS WITH ENCODER ELECTRONIC LIMITS Made in Italy...
  • Page 2 INDEX SAFETY INSTALLATION ELECTRICAL CONNECTION SETTING THE LIMITS SETTING WITH PUSHBUTTON TOOL ACPRE/ACPRET (optional) OPTION 1. OPTION 2. Shutter with mechanical stops or Shutter or awnings without stops cassette awnings SETTING WITH STANDARD PUSHBUTTON [only for XQ50] OPTION 3. OPTION 4. Shutter with mechanical stops or Shutter or awnings without stops cassette awnings...
  • Page 3 SAFETY CAREFULLY FOLLOW THESE INSTRUCTIONS. IT IS VERY IMPORTANT FOR THE SAFETY OF PERSONS. SAVE THESE INSTRUCTIONS. IMPORTANT: • Check the shutter/awning in motion and keep persons far from it while in action. • Frequently check if any loss of balance, signs of wear or damaged wires are shown. • Do not use if any repairing or maintenance is needed. • In case of installation in awnings keep a distance of at least 0,4 m from it (completely open) and whatever fixed item in the nearby. • The device is not intended to be used by people (including children) whose physical, sensory or mental capabilities are reduced, or lacking experience or knowledge, unless they have been granted through the intermediary of a person responsible for their safety, supervision or instruction concerning the use of the device. • Children should be supervised to ensure they do not play with the device and / or with fix control devices. • The control devices installed in a fixed manner must be positioned in view.

  • Page 4: Installation

    INSTALLATION To complete installation, the motor must be provided with a couple of adaptors (corresponding with the tube) and a fixing bracket. For a list of the available accessories, refer to the catalogue. WARNING: incorrect installation can cause serious injuries. Follow the installation instructions.
  • Page 5 INSTALLATION The fixing bracket must be fixed inside the box or on the awning frame so that the roller tube is perfectly horizontal and at a height not less than 1,8m. [FOR XQ50] Place the motor square pin on the bracket the cap at the opposite end of the tube on the fixing plate.

  • Page 6: Electrical Connection

    ELECTRICAL CONNECTION Check that the mains voltage available on the system is as shown on the label. The motor mains connection should be executed according to the diagram on the next page, by qualified technicians able to operate in compliance with the rules. ATTENTION: The power supply must contemplate a switching device with an opening distance between contacts of at least 3mm.
  • Page 7 ELECTRICAL CONNECTION IMPORTANT INFORMATION FOR ELECTRICIANS • It is possible to connect in parallel electronic motors to a switch in residential applications where the total power cable length does not exceed 10 meters. The number of motors paralleled together is limited to 4-5 according to the switch total amperage capacity. • Electronic motors cannot be paralleled connected together when controlled by a Building Management system (BMS).

  • Page 8: Setting The Limits

    SETTING THE LIMITS IMPORTANT: • M otors are supplied with pre-set limit switches, in order to allow two turns in both directions. • L imit-switches setting procedures shown are valid for right and left side installation. • A lways set the UP limit switch FIRST CHOOSE AN OPTION SETTING WITH PUSHBUTTON TOOL ACPRE/ACPRET (optional)
  • Page 9 SETTING WITH PUSHBUTTON TOOL ACPRET/ACPRE (option) OPTION 1. Shutter with mechanical stops or cassette awnings STOP STOP Connect the motor to the pushbutton ACPRE/ACPRET ACPRE ACPRET STOP STOP 15” Press Up and Down buttons simul- taneously until the motor jogs Press the Up button and release it only when the motor stops because the shutter/awning has reached the...
  • Page 10 Press the Down button and re- lease it only when the shutter/ awning has reached the desired limit switch position STOP STOP 15” Press Up and Down buttons simultaneously until the motor jogs. Down limit switch is set Disconnect the setting pushbutton tool ACPRE/ACPRET and connect the motor to the final standard pushbutton.
  • Page 11 SETTING WITH PUSHBUTTON TOOL ACPRET/ACPRE (option) OPTION 2. Shutter or awnings without stops STOP STOP Connect the motor to the pushbutton ACPRE/ACPRET ACPRE ACPRET STOP STOP 15” Press Up and Down buttons simul- taneously until the motor jogs Press the Up button and release it only when the motor stops because the shutter/awning has reached the Up stops.
  • Page 12 STOP STOP 15” Press Up & Down buttons simul- taneously until the motor jogs. Up limit switch is set. Press the Down button and release it only when the shutter/awning has reached the desired limit switch posi- tion. STOP STOP 15”...

  • Page 13: Push Button

    SETTING WITH STANDARD PUSHBUTTON [only for XQ50] OPTION 3. Shutter with mechanical stops or cassette awnings Press the white button on the motor head together with one of the two pushbuttons until the motor jogs. 15” Press the Up button and release it only when the motor stops because the shutter/awning has reached the Up stops.
  • Page 14 Press the Down button and release it only when the shutter/awning has reached the desired limit switch position. Press the white button on the motor head together with one of the two pushbuttons until the motor jogs. Down limit switch is set; 15”...
  • Page 15 SETTING WITH STANDARD PUSHBUTTON [only for XQ50] OPTION 4. Shutter or awnings without stops Press the white button on the motor head together with one of the two pushbuttons until the motor jogs. 15” Press the Up button and release it when the shutter/awning has rea- ched the desired limit switch posi- tion...
  • Page 16 Press the white button on the motor head together with one of the two pushbuttons until the motor jogs. The Down limit switch is set 15” GAPOSA srl - via Ete, 90 63900 Fermo - Italy T. +39.0734.220701 - info@gaposa.com...
