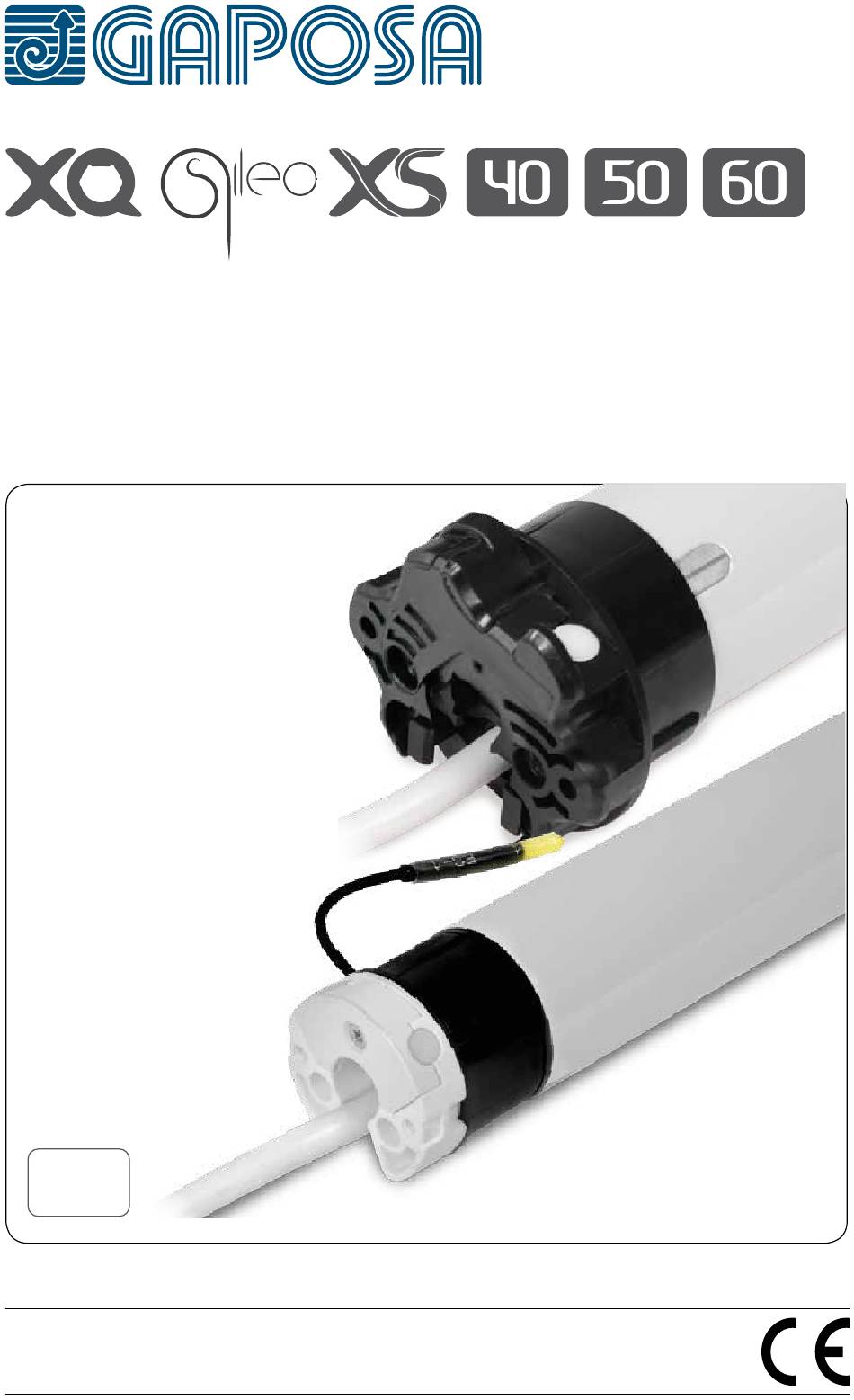

- Page 1 Tubular motors with obstacle detection and automatic limit setting Made in Italy...
- Page 2 INDEX SAFETY INSTALLATION ELECTRICAL CONNECTION PROGRAMMING TRANSMITTER ADDING TRANSMITTER CHECKING/CHANGING DIRECTION ERASING TRANSMITTER RESET MOTOR MEMORY LIMIT SWITCH SETUP OBSTACLE SENSITIVITY INTERMEDIATE POSITION...
- Page 3 SAFETY CAREFULLY FOLLOW THESE INSTRUCTIONS. IT IS VERY IMPORTANT FOR THE SAFETY OF PERSONS. SAVE THESE INSTRUCTIONS. IMPORTANT: • Check the shutter/awning in motion and keep persons far from it while in action. • Frequently check if any loss of balance, signs of wear or damaged wires are shown. • Do not use if any repairing or maintenance is needed. • In case of installation in awnings keep a distance of at least 0,4 m from it (completely open) and whatever fixed item in the nearby. • The device is not intended to be used by people (including children) whose physical, sensory or mental capabilities are reduced, or lacking experience or knowledge, unless they have been granted through the intermediary of a person responsible for their safety, supervision or instruction concerning the use of the device. • Children should be supervised to ensure they do not play with the device and / or with fix control devices. • The control devices installed in a fixed manner must be positioned in view.
-
Page 4: Installation
INSTALLATION To complete installation, the motor must be provided with a couple of adaptors (corresponding with the tube) and a fixing bracket. For a list of the available accessories, refer to the catalogue. WARNING: incorrect installation can cause serious injuries. Follow the installation instructions. - Page 5 INSTALLATION The fixing bracket must be fixed inside the box or on the awning frame so that the roller tube is perfectly horizontal and at a height not less than 1,8m. [FOR XQ50] Place the motor square pin on the bracket the cap at the opposite end of the tube on the fixing plate.
-
Page 6: Electrical Connection
ELECTRICAL CONNECTION Check that the mains voltage available on the system is as shown on the label. The motor mains connection should be executed according to the diagram on the next page, by qualified technicians able to operate in compliance with the rules. ATTENTION: The power supply must contemplate a switching device with an opening distance between contacts of at least 3mm. - Page 7 PROGRAMMING PROGRAMMING TRANSMITTER CAUTION: If more motors with receiver have to be installed, it is important to power up only one motor at time during the first programming session, in order to avoid any interferences with others. Power up the motor to be programmed.
- Page 8 PROGRAMMING ADDING TRANSMITTER Press and Hold the PROG-TX but- ton of a transmitter already pai- red until the motor starts moving. Check the rotation of the motor, then release the PROG-TX button (the motor stops). Within 5 seconds press the cor- responding button (i.e.
- Page 9 PROGRAMMING CHECKING/CHANGING DIRECTION IMPORTANT: change direction must be performed before starting limit setting otherwise limits must be reset. Press UP or DOWN the motor should go UP or DOWN, otherwise to change direction: Press and hold the PROG-TX button until the motor starts moving Press STOP: The motor makes a brief jog.
- Page 10 OPTION 2 - Without an already programmed transmitter Switch the motor power supply OFF. Then switch it Within 8 seconds, using any Gaposa transmitter, press and hold both the PROG-TX and STOP buttons until the motor makes a long jog.
-
Page 11: Limit Switch
LIMIT SWITCH AUTOMATIC LIMIT SETTING Note: the roller shutter must be equipped with stops (A) and automatic locks (B) Press and hold the UP button for more than 2 seconds then release. The motor runs upward to the TOP limit, stops itself (because the bottom bar beats against the cassette) and sets the TOP limit. - Page 12 LIMIT SWITCH MANUAL LIMIT SETTING NOTE: The manual limit setting allows the TOP or BOTTOM limit to be set automatically by leaving the motor running and self- stopping to the TOP end (cassette) or to the BOTTOM end. Press and hold PROG-FC button until you get a jog then release.
- Page 13 LIMIT SWITCH MANUAL LIMIT SETTING Press and hold the DOWN button for more than 2 sec then release. The motor 2” runs to the BOTTOM limit. When you reach the DOWN limit position press STOP. The motor stops. To set the DOWN limit press STOP again. The motor jogs.
- Page 14 DEACTIVATING OBSTACLE SENSITIVITY 1” Press for 1 second and release PROG-FC button. Press UP button As soon as the motor runs upward press DOWN button. As soon as the motor runs downward press UP button. As soon as the motor runs upward press DOWN button.
-
Page 15: Intermediate Position
3 seconds. 3” ERASING THE INTERMEDIATE POSITION Press simultaneously, both the UP and DOWN buttons until the motor makes a brief movement in both directions. GAPOSA srl - via Ete, 90 63900 Fermo - Italy T. +39.0734.220701 - info@gaposa.com...
