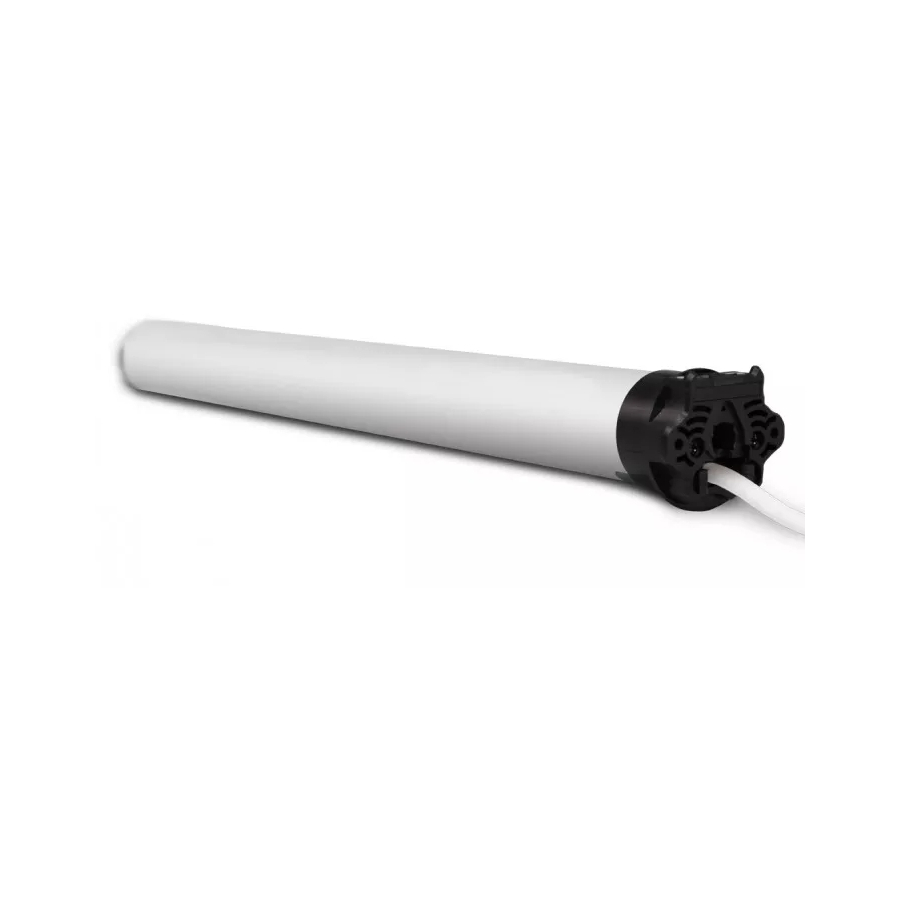

GAPOSA XQ 40 Instructions Manual
Tubular motors with obstacle detection and automatic limit setting
Hide thumbs
Also See for XQ 40:
- Manual (16 pages) ,
- Instructions (4 pages) ,
- Instructions manual (8 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for GAPOSA XQ 40
Summary of Contents for GAPOSA XQ 40

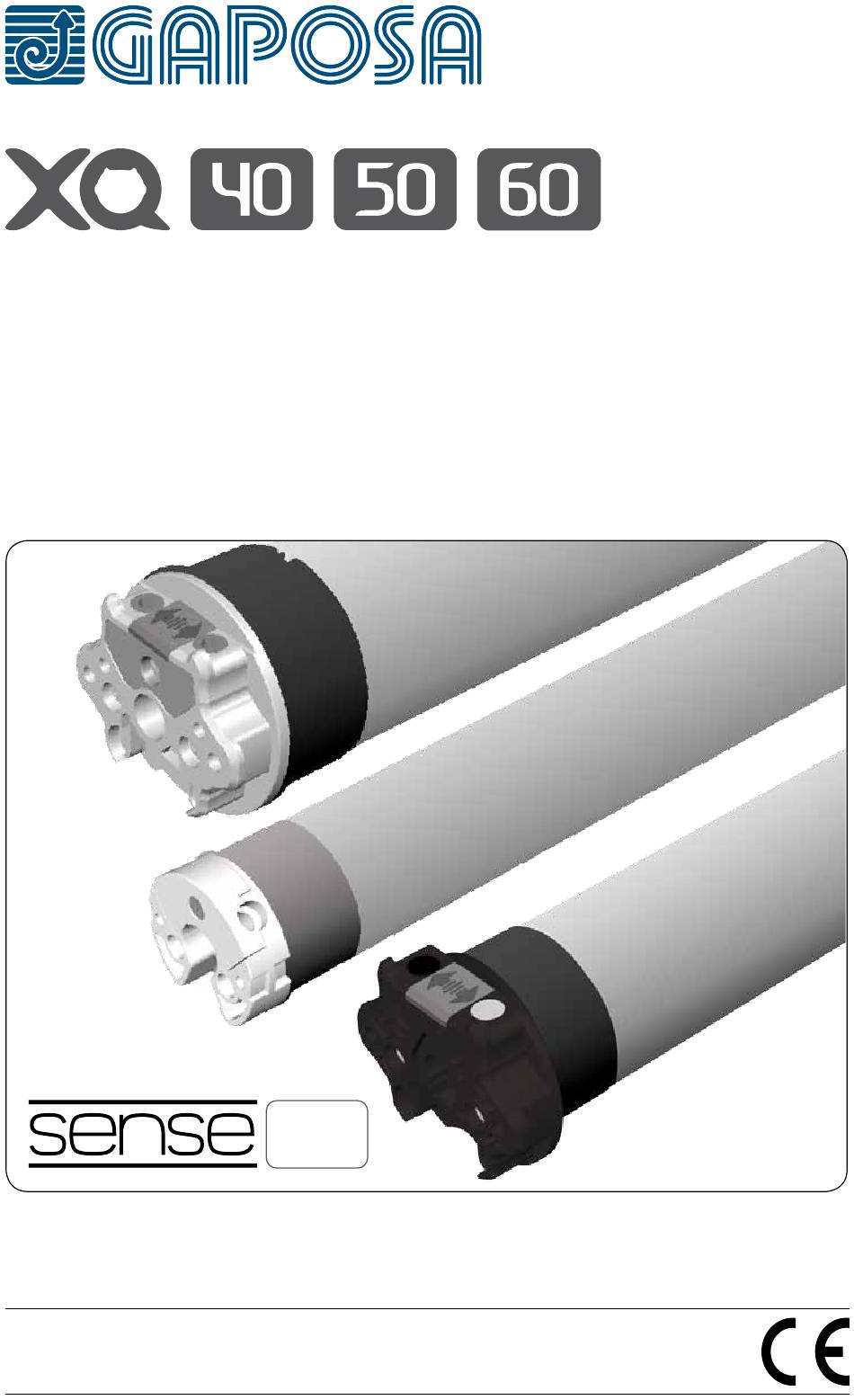

- Page 1 TUBULAR MOTORS WITH OBSTACLE DETECTION AND AUTOMATIC LIMIT SETTING Made in Italy...
- Page 2 INDEX SAFETY INSTALLATION ELECTRICAL CONNECTION PROGRAMMING AUTOMATIC LIMIT SETTING MANUAL LIMIT SETTING DEACTIVATING OBSTACLE SENSITIVITY ACTIVATING OBSTACLE SENSITIVITY...
- Page 3 SAFETY CAREFULLY FOLLOW THESE INSTRUCTIONS. IT IS VERY IMPORTANT FOR THE SAFETY OF PERSONS. SAVE THESE INSTRUCTIONS. IMPORTANT: • Check the shutter/awning in motion and keep persons far from it while in action. • Frequently check if any loss of balance, signs of wear or damaged wires are shown. • Do not use if any repairing or maintenance is needed. • In case of installation in awnings keep a distance of at least 0,4 m from it (completely open) and whatever fixed item in the nearby. • The device is not intended to be used by people (including children) whose physical, sensory or mental capabilities are reduced, or lacking experience or knowledge, unless they have been granted through the intermediary of a person responsible for their safety, supervision or instruction concerning the use of the device. • Children should be supervised to ensure they do not play with the device and / or with fix control devices. • The control devices installed in a fixed manner must be positioned in view.
-
Page 4: Installation
INSTALLATION To complete installation, the motor must be provided with a couple of adaptors (corresponding with the tube) and a fixing bracket. For a list of the available accessories, refer to the catalogue. WARNING: incorrect installation can cause serious injuries. Follow the installation instructions. - Page 5 INSTALLATION The fixing bracket must be fixed inside the box or on the awning frame so that the roller tube is perfectly horizontal and at a height not less than 1,8m. [FOR XQ50] Place the motor square pin on the bracket the cap at the opposite end of the tube on the fixing plate.
-
Page 6: Electrical Connection
ELECTRICAL CONNECTION Check that the mains voltage available on the system is as shown on the label. The motor mains connection should be executed according to the diagram on the next page, by qualified technicians able to operate in compliance with the rules. ATTENTION: The power supply must contemplate a switching device with an opening distance between contacts of at least 3mm. - Page 7 PROGRAMMING NOTE: For the auto limits setting it is required that the roller shutter features a botton bar capable to stops the screen at the up end position. OPTION 1 STOP STOP Use the setting switch device ACPRE/ACPRET ACPRE ACPRET Pressing and holding Up and STOP STOP...
- Page 8 PROGRAMMING OPTION 2 Use any standard push button Press the Up button and release it as soon as the motor starts running for 3 times Press the Down button and release it as soon as the motor starts running for 2 times Press and hold the Down button for the 3rd time till the...
- Page 9 AUTOMATIC LIMIT SETTING Press and hold the UP button for more than 2 seconds then release. The motor runs upward to the TOP limit, stops itself (because the bottom bar beats against the cassette) and sets the TOP limit. After few seconds it starts running automatically downwards to self-set the BOTTOM limit.
- Page 10 MANUAL LIMIT SETTING The setting switch device ACPRE/ACPRET is required (the UP and DOWN buttons can be pushed simultaneously). Push the UP and DOWN but- STOP STOP tons simultaneously till the motor makes a jog UP LIMIT POSITION OPTION 1 Keep pushing the UP button till the motor goes against the top stop setting the UP...
- Page 11 MANUAL LIMIT SETTING DOWN LIMIT POSITION Push the DOWN button and move the motor to the bottom end limit. Push the UP and DOWN buttons simultaneously till the motor makes a jog. the DOWN end limit position is set. To double check make a full TOP/BOTTOM cycle of the roller shutter...
- Page 12 DEACTIVATING OBSTACLE SENSITIVITY Press UP button As soon as the motor runs upward press DOWN button As soon as the motor runs downward press UP button As soon as the motor runs upward press DOWN button As soon as the motor runs downward press UP button When the motor runs upward press and hold DOWN button until...
- Page 13 As soon as the motor runs downward press UP button When the motor runs upward press and hold DOWN button until you get 2 jog as confirmation of activation. GAPOSA srl - via Ete, 90 63900 Fermo - Italy T. +39.0734.220701 - info@gaposa.com...
