5. Unpacking, Enclosed and Storage

5.1 Unpacking
Pay attention before unpacking:
Please be sure the package is complete firstly, the package should be put as mark "UP".
If possible, please put the transducer in the room for some time, and then unpack.
5.2 Enclosed
MPM380 Piezoresistive Pressure Transducer
Plug（only for plug connection type）
Cable（only for cable type, mount on sensor）
Product Qualification Certificate
Operation Manual
5.3 Storage
The transducer should be stored in the dry and ventilated room (room temperature range
-40℃~120℃, relative humidity no more than 85%. There should be no corrosive gas in the
room.

6. Installation

6.1 Check before installation
Please notice before installation:
（1） Please be sure the pressure at measured point is less than sensor upper limited
pressure range;
（2） Please be sure the measured media is compatible with construction material;
（3） Please be sure the measured media will not jam the pressure leading hole of the
transducer.
6.2 Installation
Generally, the transducer is mounted vertical down. If the environment is limited, the max
available slope angle between transducer and horizont is 30 angle.
Transducer with plug connection is not suitable for outdoor installation.
Please do not mount the transducer reversed.
MPM380 transducer's pressure port is M20 × 1.5 male with NBR rubber seal cushion;
flush diaphragm transducer's pressure port is G1/2 male column tube with seal cushion, this
could be mount on the flange connector directly. In order to easy installation and repair,

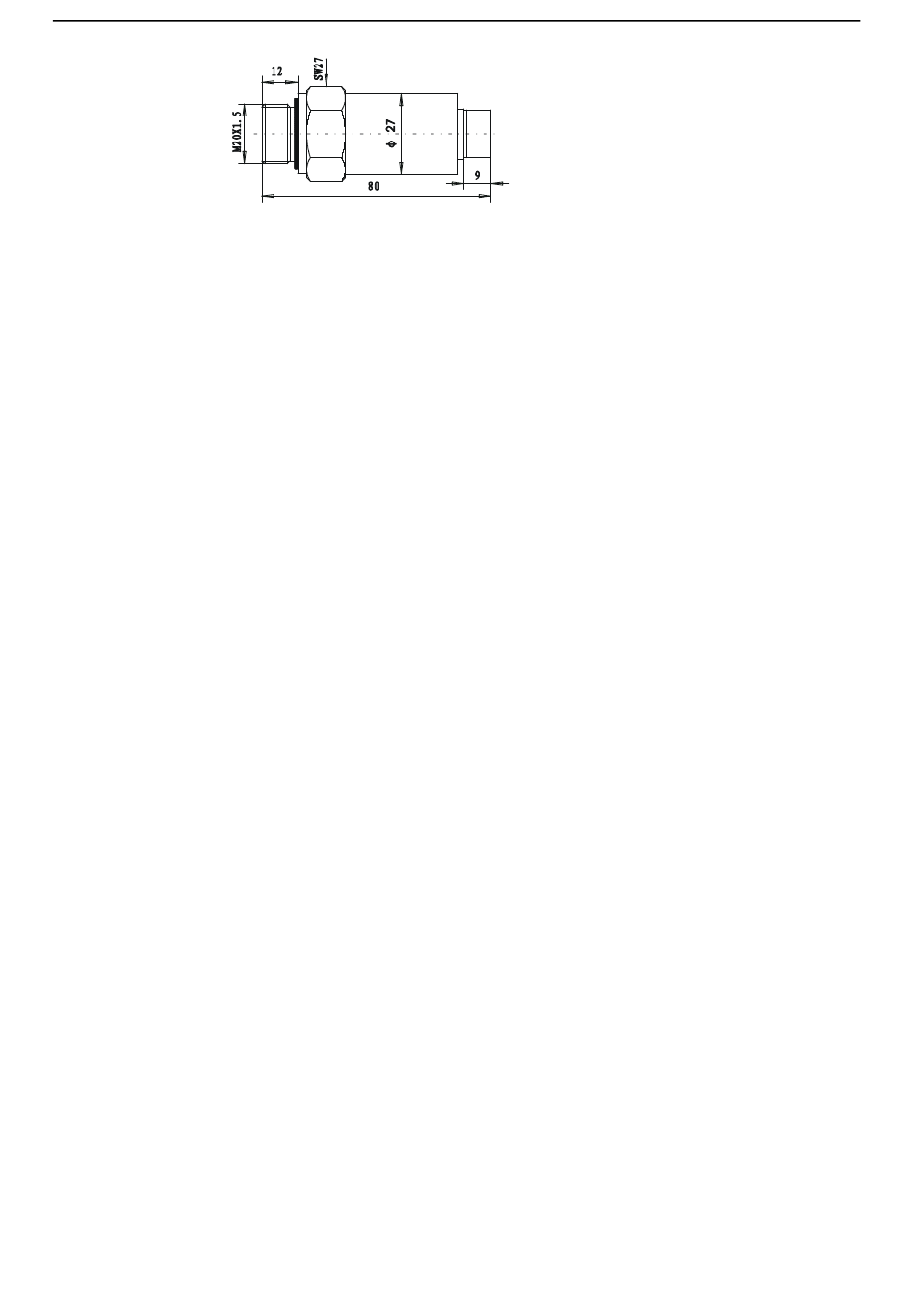

MPM380 Piezoresistive Pressure Transducer
Chart 2
3
1
1
2 meter or as ordered
1
1
