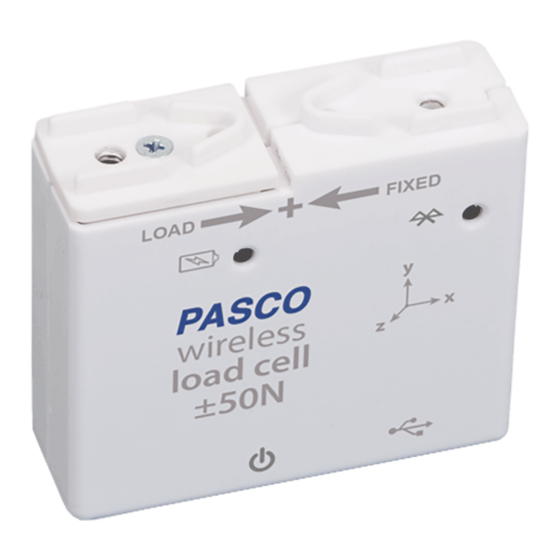

PS‐3216: Wireless Load Cell Battery Replacement Instructions
Reference:  Battery part number 540‐113; Li‐Poly 1000 mAH
Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)

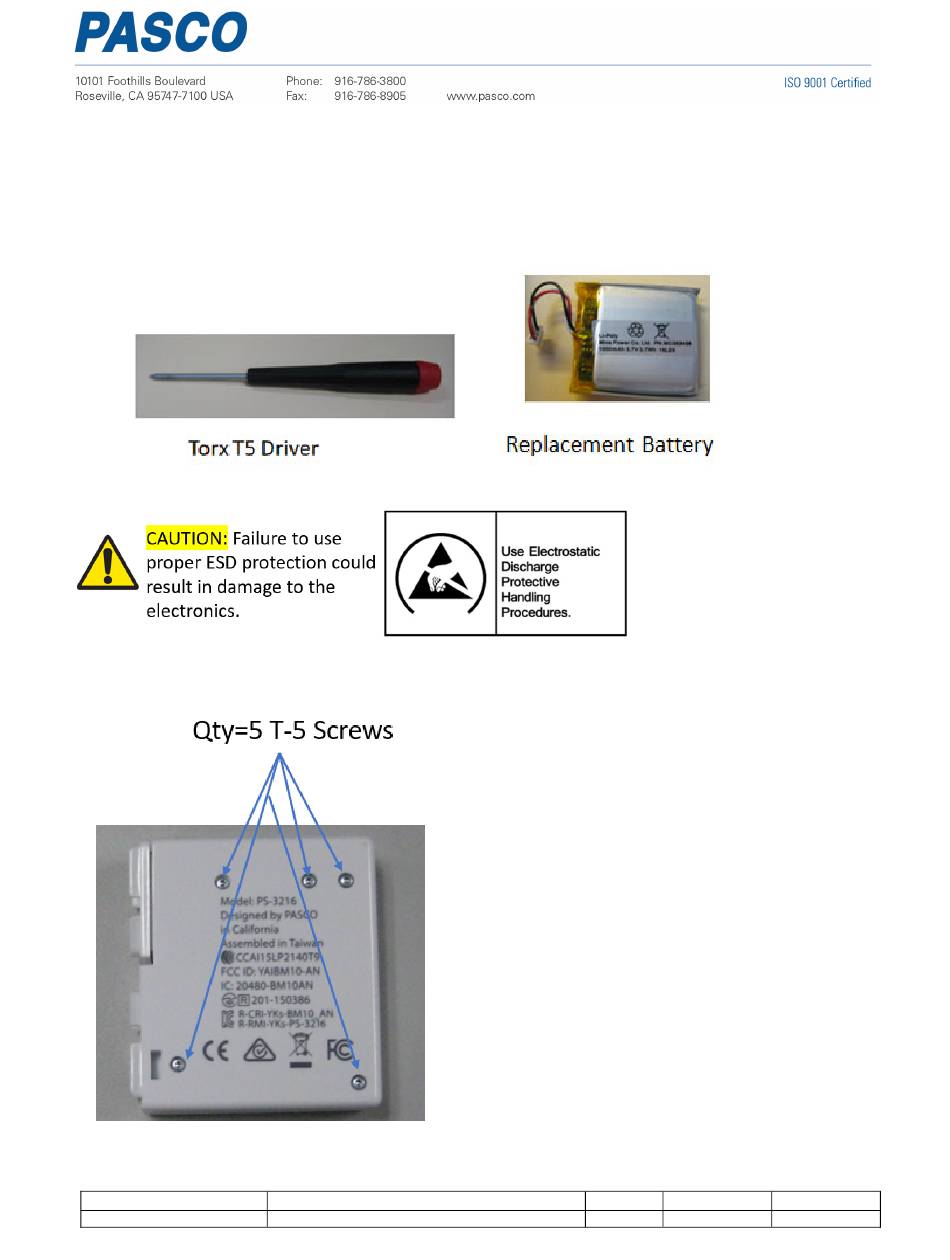

Step 1:
Unscrew and remove the Qty=5 screws with a Torx T5 Screwdriver.


PASCO Form Number
Description
Date
Revision
013-17356
PS-3216 Battery Replacement Instructions
05-05-22
Page 1 of 4
A


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-3216 and is the answer not in the manual?

Questions and answers

Related Manuals for PASCO PS-3216

Summary of Contents for PASCO PS-3216

  • Page 1     PS‐3216: Wireless Load Cell Battery Replacement Instructions   Reference:  Battery part number 540‐113; Li‐Poly 1000 mAH  Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)    Step 1:  Unscrew and remove the Qty=5 screws with a Torx T5 Screwdriver.                           PASCO Form Number Description Date Revision 013-17356 PS-3216 Battery Replacement Instructions 05-05-22 Page 1 of 4  ...
  • Page 2     Step 2:  Separate the two halves as shown.              Step 3:  Remove the Qty=1 screw (see above)  with a T5 Screwdriver and lift the PC board                     away from the battery. Unplug the battery connector from the PC Board.                               PASCO Form Number Description Date Revision 013-17356 PS-3216 Battery Replacement Instructions 05-05-22 Page 2 of 4  ...
  • Page 3     Step 4:   Remove the battery hold down by removing the Qty=2 screws with a Torx T5  screwdriver and set aside.       Step 5 : Replace the old battery with the replacement battery.                                       PASCO Form Number Description Date Revision 013-17356 PS-3216 Battery Replacement Instructions 05-05-22 Page 3 of 4  ...
  • Page 4     Step 6 : Reverse the steps above and reassemble the unit. Dispose of the battery properly per                    the instructions below.                              If you need further assistance, please contact Technical Support at support@pasco.com or  through www.pasco.com on chat.  To access chat through your browser, please enable all  cookies on our website.                        PASCO Form Number Description Date Revision 013-17356 PS-3216 Battery Replacement Instructions 05-05-22 Page 4 of 4  ...
