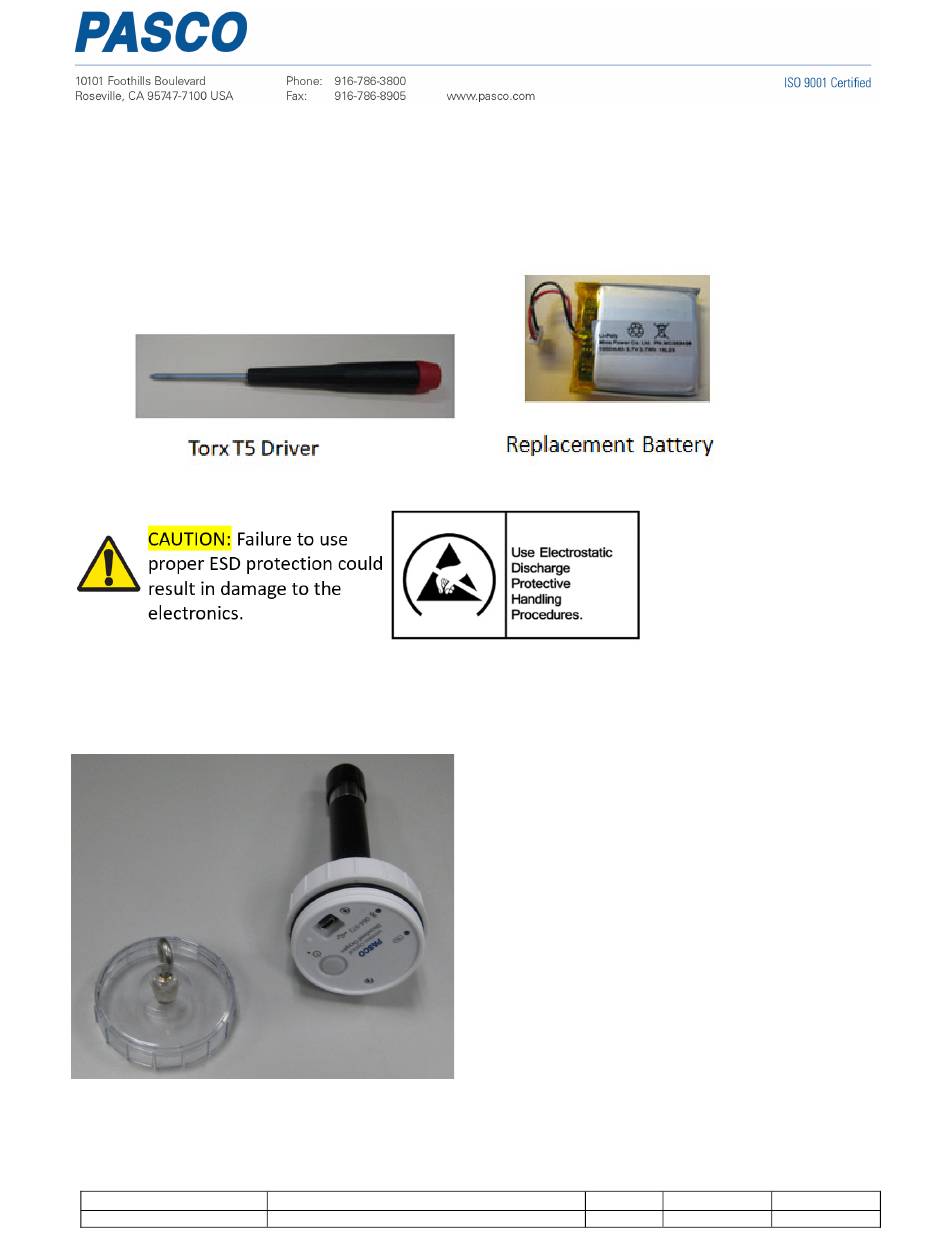

PS‐3224: Wireless ODO Battery Replacement Instructions
Reference: Battery part number 540‐113; Li‐Poly 1000 mAH
Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)
Step 1:
Unscrew the top clear plastic top and set aside.
PASCO Form Number
Description
Date
Revision
013-17362
PS-3224 Battery Replacement Instructions
05-05-22
Page 1 of 6
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PASCO PS-3224
Summary of Contents for PASCO PS-3224
- Page 1 PS‐3224: Wireless ODO Battery Replacement Instructions Reference: Battery part number 540‐113; Li‐Poly 1000 mAH Recommended Equipment: (PS‐3299; Battery Replacement Tool Set) Step 1: Unscrew the top clear plastic top and set aside. PASCO Form Number Description Date Revision 013-17362 PS-3224 Battery Replacement Instructions 05-05-22 Page 1 of 6 ...
- Page 2 Step 2: Locate and remove the Qty=2 Torx T5 Screws. Step 3: While holding the top and the bottom shaft, wiggle the two halves apart as shown. PASCO Form Number Description Date Revision 013-17362 PS-3224 Battery Replacement Instructions 05-05-22 Page 2 of 6 ...
- Page 3 Step 4: Unplug the two connectors to access the battery compartment. Step 5 : Unscrew the qty=2 T5 Torx battery strap screws where shown, and remove the battery strap. Remove the battery and replace with the new battery. Start Reversing the assembly steps per instructions below. PASCO Form Number Description Date Revision 013-17362 PS-3224 Battery Replacement Instructions 05-05-22 Page 3 of 6 ...
- Page 4 Step 6 : Secure the battery strap and plug in the connectors as shown. Step 7 : The two halves are keyed, and thus, you can visually align the keys and press down firmly to bottom out the assembly and add the mounting screws. PASCO Form Number Description Date Revision 013-17362 PS-3224 Battery Replacement Instructions 05-05-22 Page 4 of 6 ...
- Page 5 Step 7b : Alternatively, you can line up the assembly per the below instructions. Complete PASCO Form Number Description Date Revision 013-17362 PS-3224 Battery Replacement Instructions 05-05-22 Page 5 of 6 ...
- Page 6 Step 8 : Screw in the clear plastic top and dispose of the old battery properly per the instructions. If you need further assistance, please contact Technical Support at support@pasco.com or through www.pasco.com on chat. To access chat through your browser, please enable all cookies on our website. PASCO Form Number Description Date Revision 013-17362 PS-3224 Battery Replacement Instructions 05-05-22 Page 6 of 6 ...
