EP‐3560; Wireless Light Source Battery Replacement Instructions
Reference: Battery part number 540‐113; Li‐Poly 1000 mAH
Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)
Step 1

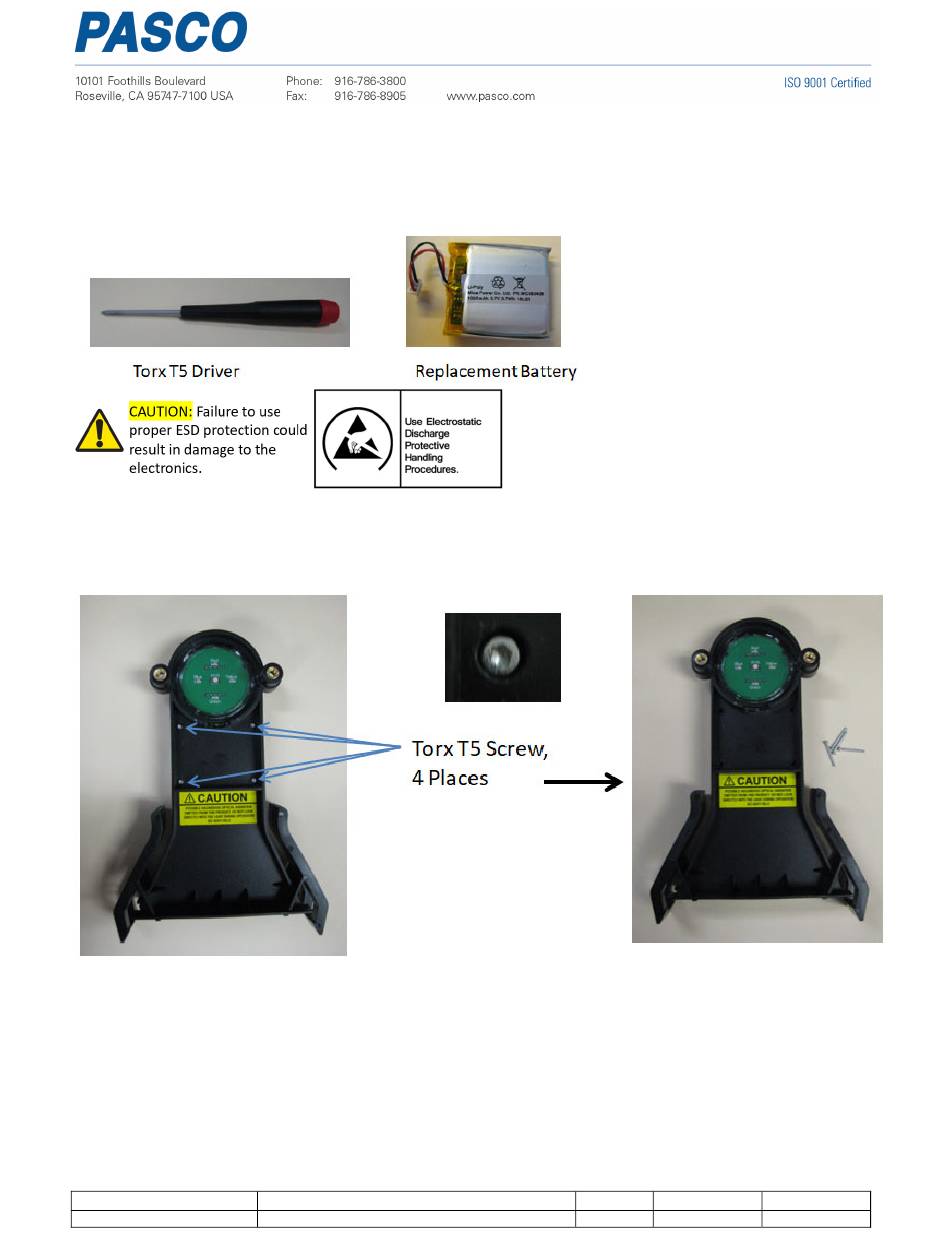

: Position the Sensor on a surface as shown. Note that there are (4) Torx T5 Screws.
Remove the 4 Screws with the Torx T5 Screwdriver.
PASCO Form Number
Description
Date
Revision
013-16101
EP-3560 Battery Replacement Instructions
05-05-22
Page 1 of 3
B
Advertisement
Table of Contents
Related Manuals for PASCO EP-3560
Summary of Contents for PASCO EP-3560
- Page 1 EP‐3560; Wireless Light Source Battery Replacement Instructions Reference: Battery part number 540‐113; Li‐Poly 1000 mAH Recommended Equipment: (PS‐3299; Battery Replacement Tool Set) Step 1 : Position the Sensor on a surface as shown. Note that there are (4) Torx T5 Screws. Remove the 4 Screws with the Torx T5 Screwdriver. PASCO Form Number Description Date Revision 013-16101 EP-3560 Battery Replacement Instructions 05-05-22 Page 1 of 3 ...
- Page 2 Step 2: While holding both halves together, flip the product over as shown looking at the front surface. Step 3: While holding the bottom with one hand, lift off the top cover assembly and position as shown. Step 4: Position a small flat blade screw driver between the battery connectors, and rotate gently back and forth to loosen the connection. Unplug the battery from its connector. PASCO Form Number Description Date Revision 013-16101 EP-3560 Battery Replacement Instructions 05-05-22 Page 2 of 3 ...
- Page 3 Step 5: Remove the battery and add the replacement battery at the location shown (see above picture) positioning the wiring similar to the routing shown above. Plug the battery into its mating connector and reverse the steps noted above to complete the reassembly. If you need further assistance, please contact Technical Support at support@pasco.com or through www.pasco.com on chat. To access chat through your browser, please enable all cookies on our website. PASCO Form Number Description Date Revision 013-16101 EP-3560 Battery Replacement Instructions 05-05-22 Page 3 of 3 ...
