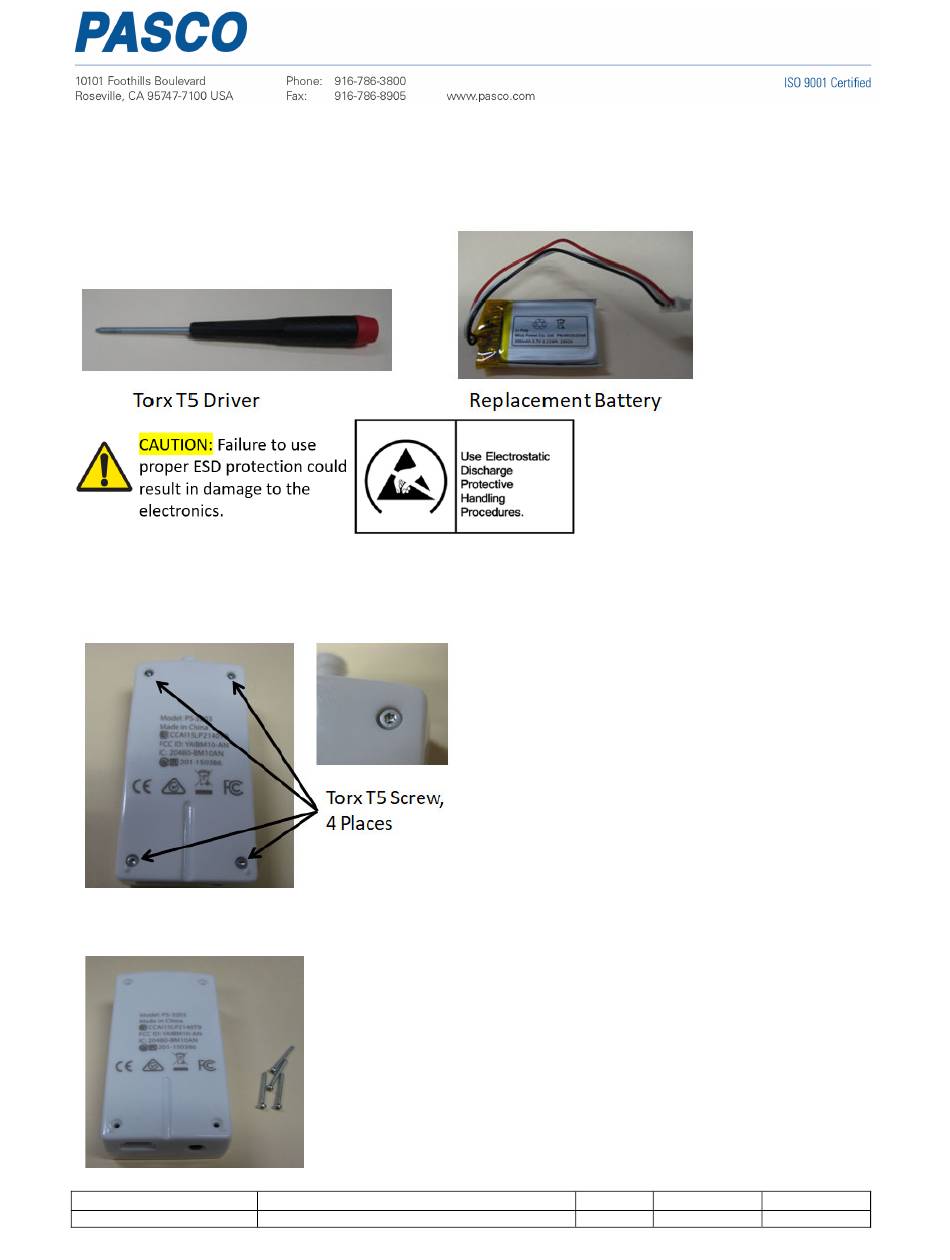

PS‐3203; Wireless Pressure Sensor Battery Replacement Instructions
Reference: Battery part number 540‐115; Li‐Poly 300 mAH
Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)
Step 1:
Position the Sensor on a surface as shown. Note the location of the (4) Torx T5
Screws.
Step 2:
Unscrew and remove the (4) Torx Screws with the T5 Screwdriver.
PASCO Form Number
013-16105
Description
PS-3203 Battery Replacement Instructions
Date
05-05-22
Page 1 of 3
Revision
B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PASCO PS-3203
Summary of Contents for PASCO PS-3203
- Page 1 PS‐3203; Wireless Pressure Sensor Battery Replacement Instructions Reference: Battery part number 540‐115; Li‐Poly 300 mAH Recommended Equipment: (PS‐3299; Battery Replacement Tool Set) Step 1: Position the Sensor on a surface as shown. Note the location of the (4) Torx T5 Screws. Step 2: Unscrew and remove the (4) Torx Screws with the T5 Screwdriver. PASCO Form Number Description Date Revision 013-16105 PS-3203 Battery Replacement Instructions 05-05-22 Page 1 of 3 ...
- Page 2 Step 3 While holding both halves together, flip the product over so that the front surface is facing up as shown. Step 4: While holding the bottom with one hand, lift and rotate the top cover. PASCO Form Number Description Date Revision 013-16105 PS-3203 Battery Replacement Instructions 05-05-22 Page 2 of 3 ...
- Page 3 Step 5: Remove the battery strap screws (2) with the T5 Screwdriver and remove the battery strap. Unplug the battery from its connector. Remove the battery and add the replacement battery at the location shown (see above picture) and position the wiring similar to the routing shown above. Plug the battery into its mating connector and reverse the steps noted above to complete the reassembly. If you need further assistance, please contact Technical Support at support@pasco.com or through www.pasco.com on chat. To access chat through your browser, please enable all cookies on our website. PASCO Form Number Description Date Revision 013-16105 PS-3203 Battery Replacement Instructions 05-05-22 Page 3 of 3 ...
