PS-2011; SPARKlink Air Battery Replacement Instructions
Battery Part Number: PS-2569; Li-Poly 2500 mAH
Recommended Equipment: (PS-3299; Battery Replacement Tool Set)

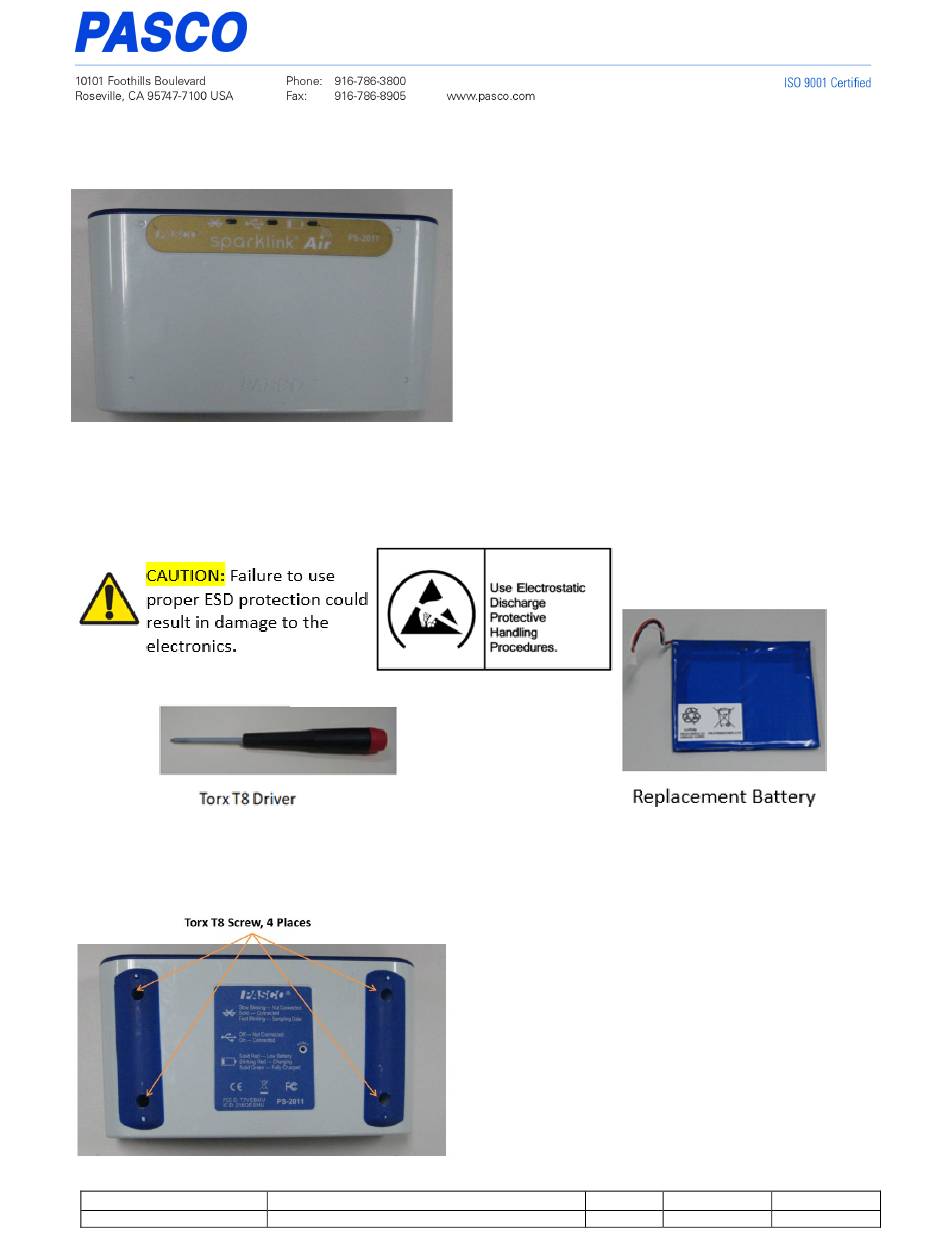

Step 1:
Position the SPARKlink Air looking at the back surface as shown below.
Note the location of the (4) T-8 Screws
PASCO Form Number
013-17442
Description
PS-2011 Battery Replacement Instructions
Date
08-16-22
Page 1 of 3
Revision
A
Advertisement
Table of Contents
Related Manuals for PASCO PS-2011
Summary of Contents for PASCO PS-2011
- Page 1 PS-2011; SPARKlink Air Battery Replacement Instructions Battery Part Number: PS-2569; Li-Poly 2500 mAH Recommended Equipment: (PS-3299; Battery Replacement Tool Set) Step 1: Position the SPARKlink Air looking at the back surface as shown below. Note the location of the (4) T-8 Screws...
- Page 2 Unit down on a flat surface. Put the screws off the side and lift off the top cover. Step 3: Unplug the old battery and plug in the new replacement battery at the location shown. PASCO Form Number Description Date Revision 013-17442 PS-2011 Battery Replacement Instructions 08-16-22 Page 2 of 3...
- Page 3 If you need further assistance, please contact Technical Support at support@pasco.com through www.pasco.com on chat. To access chat through your browser, please enable all cookies on our website. PASCO Form Number Description Date Revision 013-17442 PS-2011 Battery Replacement Instructions 08-16-22 Page 3 of 3...
