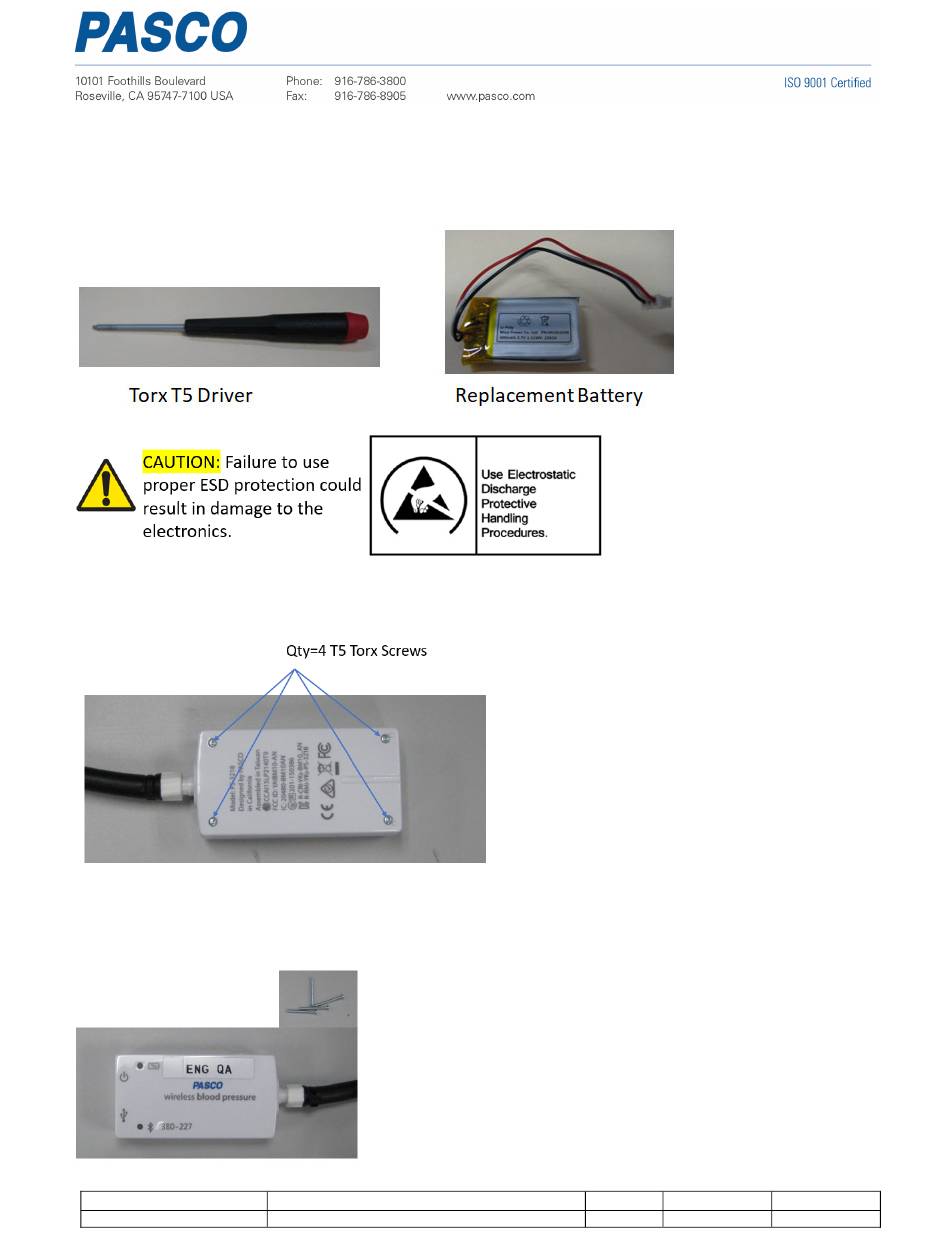

PS‐3218; Wireless Blood Pressure Battery Replacement Instructions
Reference:  Battery part number 540‐115; Li‐Poly 300 mAH
Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)
Step 1:
 Position the Sensor on a surface as shown. Note the location of the (4) Torx T5
Screws.
Step 2:
 Unscrew and remove the Qty= 4 T5 Screws with the T5 Screwdriver and flip the
Sensor over as shown below.

PASCO Form Number
013-17358


Description
PS-3218 Battery Replacement Instructions



Date
05-05-22

Revision
Page 1 of 3
A
