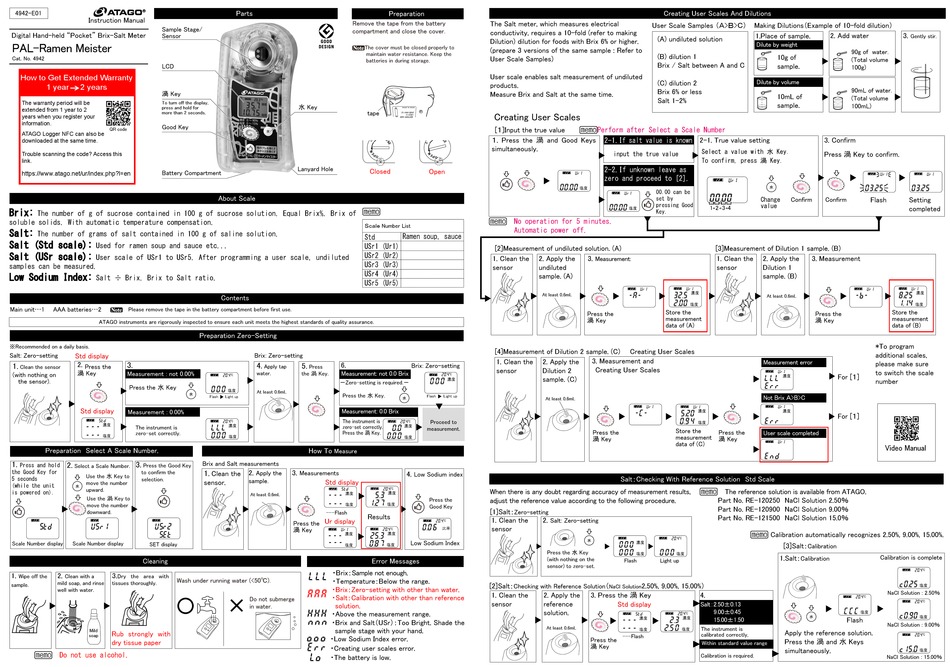

ATAGO PAL-Ramen Meister Instruction Manual

4942-E01 R
Instruction Manual
Sample Stage/

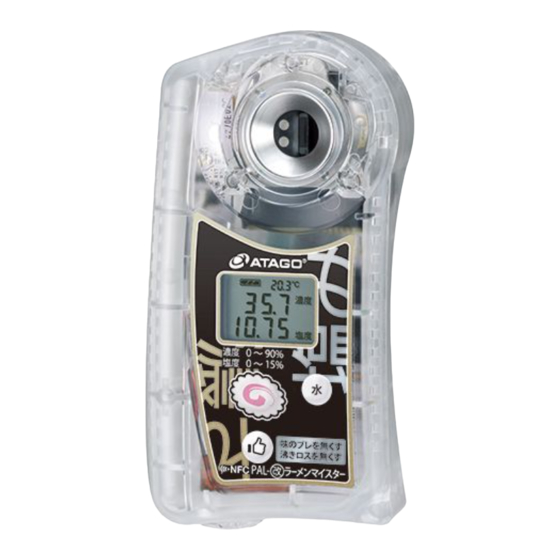

Digital Hand-held "Pocket" Brix-Salt Meter
Sensor
PAL-Ramen Meister
Cat. No. 4942
LCD
How to Get Extended Warranty
1 year 2 years
渦 Key
The warranty period will be
To turn off the display,
press and hold for
extended from 1 year to 2
more than 2 seconds.
years when you register your
information.
Good Key
QR code
ATAGO Logger NFC can also be
downloaded at the same time.
Trouble scanning the code? Access this
link.
https://www.atago.net/ur/index.php?l=en Battery Compartment
Brix:
The number of g of sucrose contained in 100 g of sucrose solution. Equal Brix%. Brix of
soluble solids. With automatic temperature compensation.
Salt:
The number of grams of salt contained in 100 g of saline solution.
Salt (Std scale):
Used for ramen soup and sauce etc...
Salt (USr scale):
User scale of USr1 to USr5. After programming a user scale, undiluted
samples can be measured.
Low Sodium Index:
Salt ÷ Brix. Brix to Salt ratio.
Main unit...1 AAA batteries...2 m Please remove the tape in the battery compartment before first use.
ATAGO instruments are rigorously inspected to ensure each unit meets the highest standards of quality assurance.
※Recommended on a daily basis.
Salt: Zero-setting
Std display
2. 3.
1.
Clean the sensor Press the
渦 Key
Measurement : not 0.00%
(with nothing on
the sensor).
Press the 水 Key
Std display
Measurement : 0.00%
Std
- - - 濃度
The instrument is
zero-set correctly.
- - -
塩度
Preparation Select A Scale Number.
1.
2. 3.
Press and hold Select a Scale Number. Press the Good Key
the Good Key for
to confirm the
Use the 水 Key to
5 seconds
selection.
move the number
(while the unit
upward.
is powered on).
Use the 渦 Key to
move the number
downward.
std USr1 Usr2
sEt
Scale Number display Scale Number display
SET display
Cleaning
1. 2. 3.
Wipe off the Clean with a Dry the area with
Wash under running water (<50℃).
mild soap, and rinse tissues thoroughly.
sample.
well with water.
Mild
Rub strongly with
soap
dry tissue paper
N Do not use alcohol.
Parts
Remove the tape from the battery
compartment and close the cover.
mThe cover must be closed properly to
maintain water resistance. Keep the
batteries in during storage.
水 Key
tape
Lanyard Hole
Closed
About Scale
N
Ｓｃａｌｅ Number List
Std
USr1 (Ur1)
USr2 (Ur2)
USr3 (Ur3)
USr4 (Ur4)
USr5 (Ur5)
Contents
Preparation Zero-Setting
Brix: Zero-setting
4. 5. 6.
Apply tap Press
water. the 渦 Key. Measurement: not 0.0 Brix
20.4 ℃
－Zero-setting is required.－
0 0 0
塩度
At least 0.6mL
Press the 水 Key.
Flash Light up
Measurement: 0.0 Brix
The instrument is
20.4 ℃
L L L 濃度 zero-set correctly.
Press the 渦 Key.
0.0 0
塩度
How To
Measure
Brix and Salt measurements
1. 2. 3.
Clean the Apply the Measurements
sample.
sensor. Std display
Std
At least 0.6mL - - - 濃度 5.3
1.2 7
- - -
塩度
---Flash
Results
Ur display
Press the
渦 Key
Ur1
- - - 濃度 25.3
- - -
0.8 7
塩度
Error Messages
・Brix：Sample not enough.
L L L
・Temperature：Below the range.
・Brix：Zero-setting with other than water.
A A A
・Salt：Calibration with other than reference
Do not submerge
solution.
in water.
H H H
・Above the measurement range.
n n n
・Brix and Salt（USr）：Too Bright. Shade the
sample stage with your hand.
o o o
・Low Sodium Index error.
E r r
・Creating user scales error.
Lo
・The battery is low.
Preparation
The Salt meter, which measures electrical
conductivity, requires a 10-fold (refer to making
Dilution) dilution for foods with Brix 6% or higher.
(prepare 3 versions of the same sample : Refer to
User Scale Samples)
User scale enables salt measurement of undiluted
products.
Measure Brix and Salt at the same time.
Creating User Scales
[１]Input the true value
１. Press the 渦 and Good Keys
simultaneously.
Open
00.00
N No operation for 5 minutes.
Automatic power off.
Ramen soup, sauce
[2]Measurement of undiluted solution. (A)
1. Clean the 2. Apply the
sensor undiluted
sample. (A)
At least 0.6mL
[4]Measurement of Dilution 2 sample. (C) Creating User Scales
1. Clean the 2. Apply the
Brix: Zero-setting
sensor Dilution 2
20.4 ℃
sample. (C)
0 0 0 濃度
Flash Light up
At least 0.6mL
Proceed to
20.4 ℃
濃度
0.0
measurement.
0.0 0
塩度
4.
Low Sodium index
20.4 ℃
When there is any doubt regarding accuracy of measurement results,
濃度
Press the adjust the reference value according to the following procedure.
塩度
Good Key
[1]Salt：
Zero-setting
1. Clean the 2. Salt: Zero-setting
20.4 ℃
0.0 6
sensor
℃ 比率
20.4
濃度
Low Sodium Index
塩度
Press the 水 Key
(with nothing on the
sensor) to zero-set.
[2]Salt：
Checking with Reference Solution
1. Clean the 2. Apply the
sensor reference
solution.
At least 0.6mL
Creating User Scales And Dilutions
User Scale Samples （Ａ>Ｂ>Ｃ） Making Dilutions（Example of 10-fold dilution）
(A) undiluted solution
(B) dilution 1
Brix / Salt between A and C
(C) dilution 2
Brix 6% or less
Salt 1-2%
NPerform after Select a Scale Number
2-1.If salt value is known 2-1. True value setting
Select a value with 水 Key.
input the true value
To confirm, press 渦 Key.
2-2.If unknown leave as
Ur1
zero and proceed to [2].
Ur1
塩度
00.00 can be
Ur1
00.00
set by
pressing Good
00.00
1 2 3 4
塩度
Key.
[3]Measurement of Dilution 1 sample. (B)
3. 1. Clean the
Measurement:
sensor
Ur1 Ur1
-A-
濃度
32.5
2.00
塩度
Store the
Press the
measurement
渦 Key
data of (A)
3. Measurement and
Creating User Scales
Ur1 Ur1
-C-
濃度
5.20
0.9 4
塩度
Store the
Press the Press the
measurement
渦 Key 渦 Key
data of (C)
Salt：Checking With Reference Solution Std Scale
N The reference solution is available from ATAGO.
Part No. RE-120250 NaCl Solution 2.50％
Part No. RE-120900 NaCl Solution 9.00％
Part No. RE-121500 NaCl Solution 15.0％
N Calibration automatically recognizes 2.50%, 9.00%, 15.00%.
℃
20.4
0 0 0 濃度
0 0 0 0 0 0
塩度 塩度
Flash Light up
（ 2.50%, 9.00%, 15.00%）
NaCl Solution
3. Press the 渦 Key 4.
Std display Salt：2.50±0.13
9.00±0.45
Std 20.4 ℃
濃度 2.3 濃度
- - - 15.00±1.50
2.5 0
- - -
The instrument is
塩度 塩度
calibrated correctly,
---Flash
Press the
Within standard value range
渦 Key
Calibration is required.
2. Add water 3.
1.Place of sample.
Gently stir.
Dilute by weight
90g of water.
10g of
(Total volume
sample.
100g)
Dilute by volume
90mL of water.
10mL of
(Total volume
sample.
100mL)
3. Confirm
Press 渦 Key to confirm.
Ur1 Ur1
03.25 03.25
Change Confirm Confirm Flash Setting
value
completed
2. Apply the 3. Measurement
Dilution 1
sample. (B)
Ur1 Ur1
-b-
濃度
8.25
At least 0.6mL
1.14
塩度
Store the
Press the
measurement
渦 Key
data of (B)
*To program
additional scales,
Measurement error
please make sure
to switch the scale
Ur1
For [１]
濃度
L L L
number
E r r
Not Brix Ａ>B>C
Ur1
濃度
For [１]
E r r
User scale completed
Ur1
Video Manual
E n d
[3]Salt：
Calibration
Calibration is complete
1.Salt： Calibration
20.4 ℃
c0.25
塩度
NaCl Solution : 2.50％
20.4 ℃
20.4 ℃
C C C
塩度
c0.90
塩度
Flash
NaCl Solution : 9.00％
Apply the reference solution.
20.4 ℃
Press the 渦 and 水 Keys
c15.0
simultaneously.
塩度
NaCl Solution : 15.00％
