3489-E11

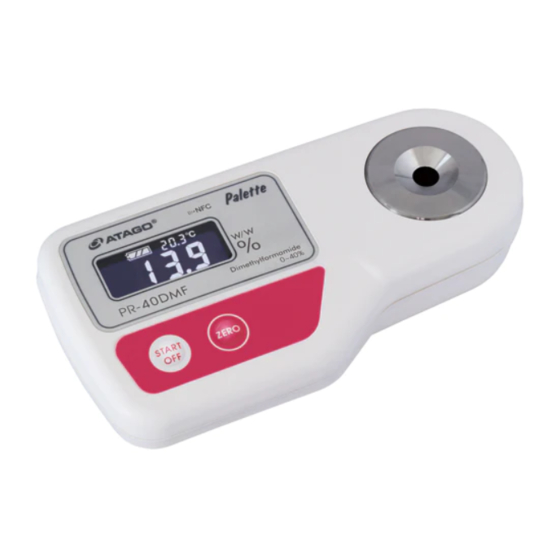

DIGITAL REFRACTOMETER
PR-40DMF
Instruction Manual
20.3 ℃
PRODUCT REGISTRATION & WARRANTY CARD
https://www.atago.net/registration/
english/registration.php
Cat. No. 3489
2 6.7
When a malfunction is suspected!
Malfunctions often come from low battery.
Check the battery first, and if the battery is low,
replace it with a new battery.
Advertisement
Related Manuals for ATAGO PALETTE Series
Summary of Contents for ATAGO PALETTE Series
- Page 1 20.3 ℃ 2 6.7 When a malfunction is suspected! Malfunctions often come from low battery. Check the battery first, and if the battery is low, PRODUCT REGISTRATION & WARRANTY CARD replace it with a new battery. https://www.atago.net/registration/ english/registration.php...
- Page 6 Handling of battery WARNING ◇Make sure to use a specified battery or that ◇Don't heat, shortcircuit, burn a battery or supplied with the refractometer as an accessory. take it apart. If done so, it may cause burst When loading the refractometer with a battery, or fire.
- Page 8 4. Inserting of battery CAUTION ●When loading the instrument with a new battery, carefully do it not to make a mistake in connection of the positive (+) and negative (-) poles of the battery. If they are wrongly connected, it causes a trouble or damage of the refractometer. ●Press the START/OFF button or ZERO setting button to power on the instrument.
- Page 9 20.4 n n n...
- Page 10 20.4 20.4 0 0 0 0 0 0...
- Page 11 7. Measurement on sample WARNING ●When measuring a substance harmful to the human body, be well aware of its properties and put on protective gloves, mask, etc. CAUTION ●Do not use any metallic implement for sampling because the metal tool possibly damages the prism surface.
- Page 12 8. About Data Transmission Function CAUTION ●When the history of measured data reaches 100, no further measurements can be taken unless all 100 records are deleted. ●The data transmission function can be set to ON / OFF. 8-1. Introduction This instrument stores maximum number of 100 measurement data.This instrument is equipped with NFC（Near Field Communication）...
- Page 13 Laptop or PC + USB NFC Reader/Writer Data history can be exported to Microsoft(R) Excel (R)(for Windows(R)) using a NFC software "ATAGO Logger (NFC)." * The app "ATAGO Logger (NFC)" is available for download : http://www.atago.net/ur/ Example of data history read out. 2017/8/17 9:30 20.5...
- Page 14 Laptop or PC + USB NFC Reader/Writer (1)Launch ATAGO Logger. (2)Bring the center part (where the 'Palette' logo is) of this instrument in contact with the NFC mark on the IC card reader/writer.
- Page 15 Full 20.4 12. 3 y _n E n d E n d...
- Page 16 20.4 A A A 20.4 L L L 20.4 H H H 1 2.3 1 2.3 20.4 n n n...
-
Page 17: Powering Off
10. Powering off The instrument will turn itself off after approximately 30 seconds of inactivity. To manually turn it off, hold down the START/OFF button for more than 2 seconds. The backlight stays on for 15 seconds after any button is pressed. 11. -
Page 18: Specifications
13. Specifications PR-40DMF Measurement range Concentration of dimethylformamide : 0.0 to 40.0%(w/w) Resolution Concentration of dimethylformamide : 0.1% Temperature : 0.1℃ Concentration of dimethylformamide :±0.3% Measurement accuracy Measurement temperature range 5 to 40℃ (Automatic Temperature Compensation) Ambient temperature range 5 to 40℃ Sample volume 0.1mL or more Measurement time... - Page 20 Headquarters : The Front Tower Shiba Koen 23rd Floor 2-6-3 Shiba-koen, Minato-ku Tokyo 105-0011, Japan TEL: 81-3-3431-1943 FAX: 81-3-3431-1945 overseas@atago.net http://www.atago.net/ TEL: 1-425-637-2107 customerservice@atago-usa.com TEL: 91-22-28544915 / 40713232 customerservice@atago-india.com TEL: 66-21948727-9 ,66-21171549 customerservice@atago-thailand.com TEL: 55 16 3913-8400 customerservice@atago-brasil.com TEL: 39 02 36557267 customerservice@atago-italia.com...
