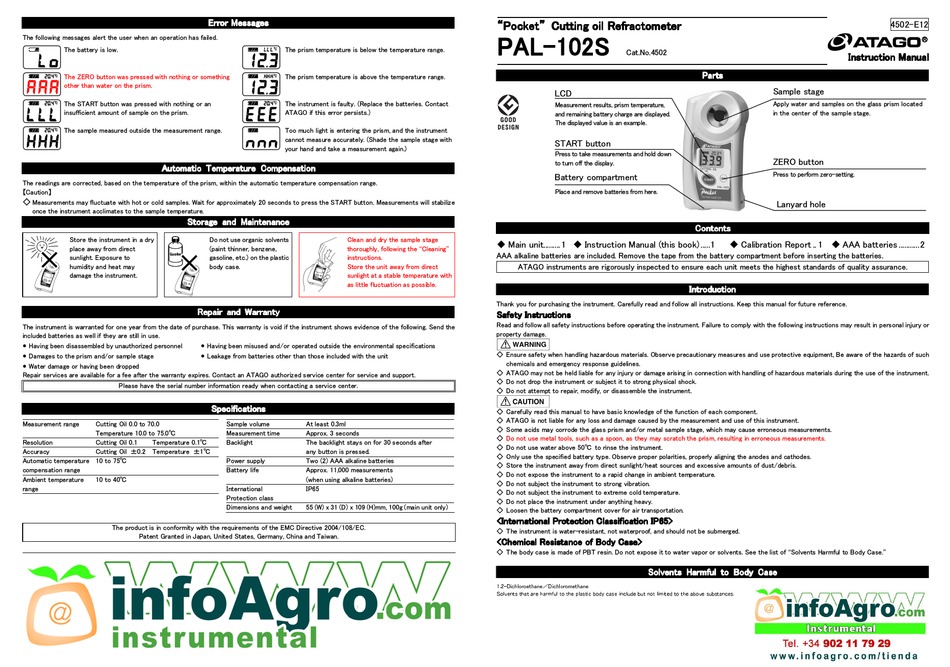

The following messages alert the user when an operation has failed.
The battery is low.
The ZERO button was pressed with nothing or something
other than water on the prism.
The START button was pressed with nothing or an
insufficient amount of sample on the prism.
The sample measured outside the measurement range.
Automatic Temperature Compensation
Automatic Temperature Compensation
Automatic Temperature Compensation
Automatic Temperature Compensation
The readings are corrected, based on the temperature of the prism, within the automatic temperature compensation range.
【Caution】
◇
Measurements may fluctuate with hot or cold samples. Wait for approximately 20 seconds to press the START button. Measurements will stabilize
once the instrument acclimates to the sample temperature.
Storage and Maintenance
Storage and Maintenance
Storage and Maintenance
Storage and Maintenance
Store the instrument in a dry
place away from direct
sunlight. Exposure to
humidity and heat may
damage the instrument.
Repair and Warranty
Repair and Warranty
Repair and Warranty
Repair and Warranty
The instrument is warranted for one year from the date of purchase. This warranty is void if the instrument shows evidence of the following. Send the
included batteries as well if they are still in use.
•
•
Having been disassembled by unauthorized personnel
•
•
Damages to the prism and/or sample stage
•
Water damage or having been dropped
Repair services are available for a fee after the warranty expires. Contact an ATAGO authorized service center for service and support.
Please have the serial number information ready when contacting a service center.
Measurement range
Cutting Oil 0.0 to 70.0
Temperature 10.0 to 75.0℃
Resolution
Cutting Oil 0.1
Temperature 0.1℃
Accuracy
Cutting Oil ±0.2 Temperature ±1℃
Automatic temperature 10 to 75℃
compensation range
Ambient temperature
10 to 40℃
range
The product is in conformity with the requirements of the EMC Directive 2004/108/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.
TEL: 91-22-2854-4915 / 4071-3232
Headquarters: The Front Tower Shiba Koen,
customerservice@atago-india.com
23rd Floor 2-6-3 Shiba-koen, Minato-ku,
Tokyo 105-0011, Japan
TEL: 81-3-3431-1943 overseas@atago.net
TEL: 66-21948727-9 ,66-21171549
http://www.atago.net/
customerservice@atago-thailand.com
TEL: 1-425-637-2107
TEL: 55 16 3913-8400
customerservice@atago-usa.com
customerservice@atago-brasil.com
Error Messages
Error Messages
Error Messages
Error Messages
The prism temperature is below the temperature range.
The prism temperature is above the temperature range.
The instrument is faulty. (Replace the batteries. Contact
ATAGO if this error persists.)
Too much light is entering the prism, and the instrument
cannot measure accurately. (Shade the sample stage with
your hand and take a measurement again.)
Do not use organic solvents
Clean and dry the sample stage
(paint thinner, benzene,
thoroughly, following the "Cleaning"
gasoline, etc.) on the plastic
instructions.
body case.
Store the unit away from direct
sunlight at a stable temperature with
as little fluctuation as possible.
Having been misused and/or operated outside the environmental specifications
Leakage from batteries other than those included with the unit
Specifications
Specifications
Specifications
Specifications
Sample volume
At least 0.3ml
Measurement time
Approx. 3 seconds
Backlight
The backlight stays on for 30 seconds after
any button is pressed.
Power supply
Two (2) AAA alkaline batteries
Battery life
Approx. 11,000 measurements
(when using alkaline batteries)
International
IP65
Protection class
Dimensions and weight
55 (W) x 31 (D) x 109 (H)mm, 100g (main unit only)
TEL: 39 02 36557267
customerservice@atago-italia.com
TEL: 86-20-38108256 info@atago-china.com
TEL: 7-812-777-96-96 info@atago-russia.com
TEL: 234-707-558-1552 atagonigeria@atago.net
1602WP Printed in Japan

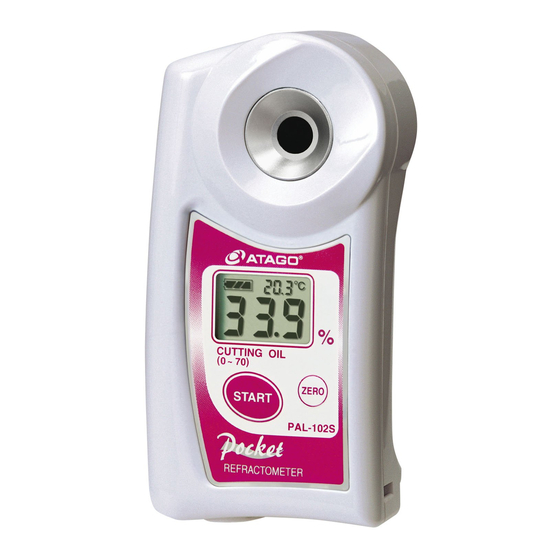

" " " " Pocket
Pocket" " " " Cutting
Pocket
Pocket
Cutting
Cutting o o o o il il il il Refractometer
Cutting
Refractometer
Refractometer
Refractometer
PAL- - - - 102S
PAL
PAL
PAL
102S
102S
102S
Cat.No.4502
LCD
Measurement results, prism temperature,
and remaining battery charge are displayed.
The displayed value is an example.
START button
Press to take measurements and hold dow n
to turn off the display.
Battery compartment
Place and remove batteries from here.
Main unit.........1
Instruction Manual (this book) .....1
AAA alkaline batteries are included. Remove the tape from the battery compartment before inserting the batteries.
ATAGO instruments are rigorously inspected to ensure each unit meets the highest standards of quality assurance.
Thank you for purchasing the instrument. Carefully read and follow all instructions. Keep this manual for future reference.
Safety Instructions
Safety
Safety
Safety
Instructions
Instructions
Instructions
Read and follow all safety instructions before operating the instrument. Failure to comply with the following instructions may result in personal injury or
property damage.
◇ Ensure safety when handling hazardous materials. Observe precautionary measures and use protective equipment, Be aware of the hazards of such
chemicals and emergency response guidelines.
◇ ATAGO may not be held liable for any injury or damage arising in connection with handling of hazardous materials during the use of the instrument.
◇ Do not drop the instrument or subject it to strong physical shock.
◇ Do not attempt to repair, modify, or disassemble the instrument.
◇ Carefully read this manual to have basic knowledge of the function of each component.
◇ ATAGO is not liable for any loss and damage caused by the measurement and use of this instrument.
◇ Some acids may corrode the glass prism and/or metal sample stage, which may cause erroneous measurements.
◇
Do not use metal tools, such as a spoon, as they may scratch the prism, resulting in erroneous measurements.
◇ Do not use water above 50℃ to rinse the instrument.
◇ Only use the specified battery type. Observe proper polarities, properly aligning the anodes and cathodes.
◇ Store the instrument away from direct sunlight/heat sources and excessive amounts of dust/debris.
◇ Do not expose the instrument to a rapid change in ambient temperature.
◇ Do not subject the instrument to strong vibration.
◇ Do not subject the instrument to extreme cold temperature.
◇ Do not place the instrument under anything heavy.
◇ Loosen the battery compartment cover for air transportation.
< < < < International Protection Classification IP65
International Protection Classification IP65
International Protection Classification IP65
International Protection Classification IP65> > > >
◇ The instrument is water-resistant, not waterproof, and should not be submerged.
< < < < Chemical Resistance of Body Case
Chemical Resistance of Body Case
Chemical Resistance of Body Case
Chemical Resistance of Body Case> > > >
◇ The body case is made of PBT resin. Do not expose it to water vapor or solvents. See the list of "Solvents Harmful to Body Case."
Solvents Harmful to Body Case
Solvents Harmful to Body Case
Solvents Harmful to Body Case
Solvents Harmful to Body Case
1 , 2 - D i c h l o r o e t h a n e / D i c h l o r o m e t h a n e
S o l v e n t s t h a t a r e h a r m f u l t o t h e p l a s t i c b o d y c a s e i n c l u d e b u t n o t l i m i t e d t o t h e a b o v e s u b s t a n c e s .
Instruction Manual l l l
Instruction Manua
Instruction Manua
Instruction Manua
Parts
Parts
Parts
Parts
Sample stage
Apply water and samples on the glass prism located
in the center of the sample stage.
ZERO button
Press to perform zero-setting.
Lanyard hole
Contents
Contents
Contents
Contents
Calibration Report .. 1
AAA batteries ...........2
Introduction
Introduction
Introduction
Introduction
4502-E12
