ATAGO PR-BUTYRO Instruction Manual

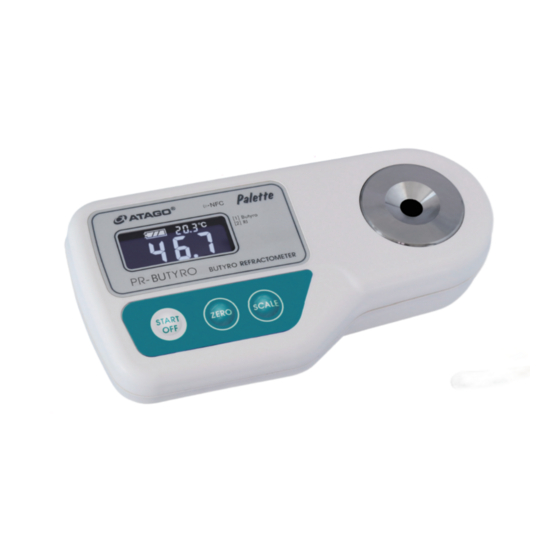

Digital butyro refractometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

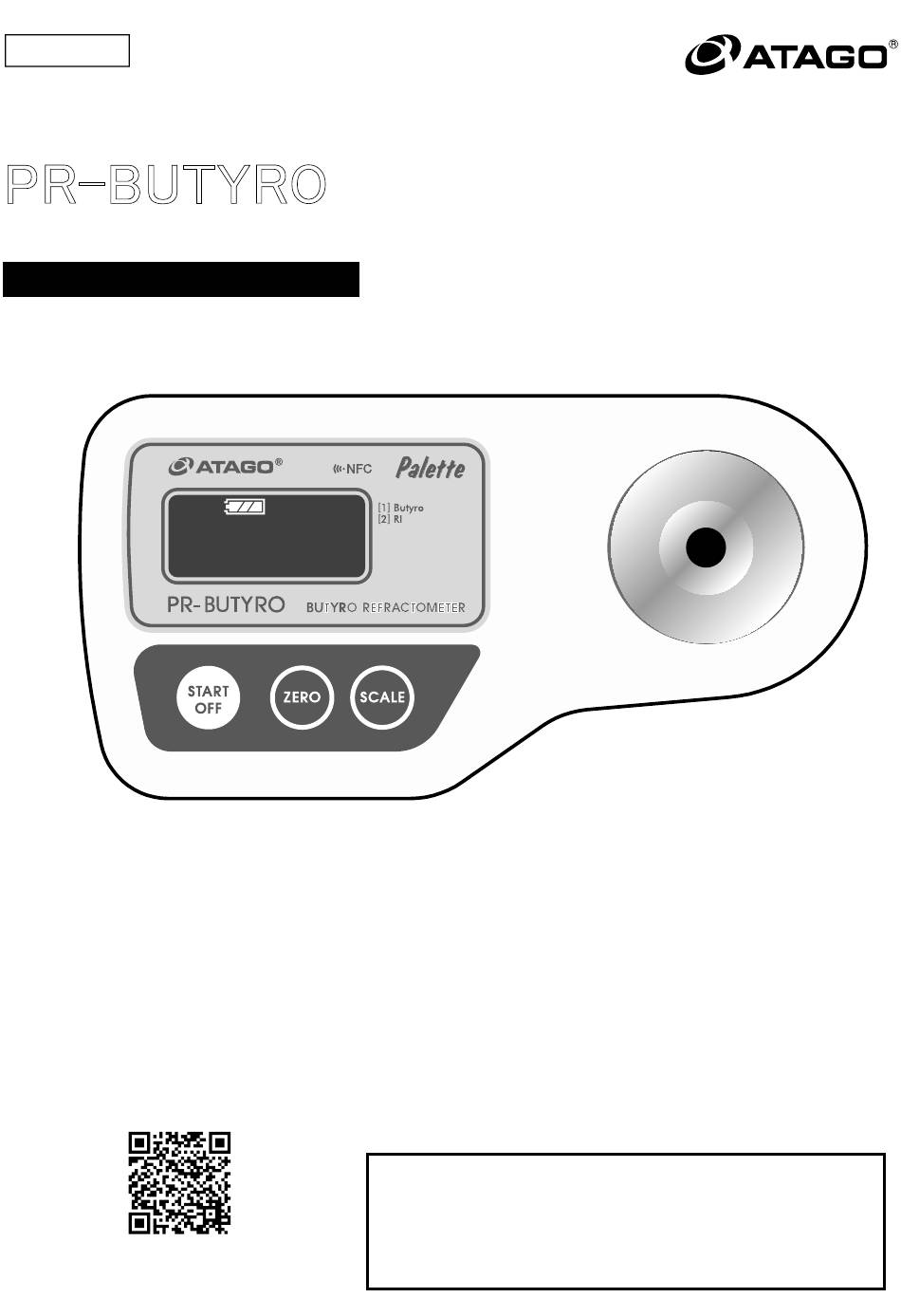

3454-E07
DIGITAL BUTYRO REFRACTOMETER
PR-BUTYRO
Cat.No.3454
INSTRUCTION MANUAL
PRODUCT REGISTRATION & WARRANTY CARD
https://www.atago.net/registration/
english/registration.php
　　　　 20.3 ℃
4 6.7
When a malfunction is suspected!
Malfunctions often come from low battery.
Check the battery first, and if the battery is low,
replace it with a new battery.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-BUTYRO and is the answer not in the manual?

Questions and answers

Related Manuals for ATAGO PR-BUTYRO

Summary of Contents for ATAGO PR-BUTYRO

  • Page 1 3454-E07 DIGITAL BUTYRO REFRACTOMETER PR-BUTYRO Cat.No.3454 INSTRUCTION MANUAL 　　　　 20.3 ℃ 4 6.7 When a malfunction is suspected! Malfunctions often come from low battery. Check the battery first, and if the battery is low, PRODUCT REGISTRATION & WARRANTY CARD replace it with a new battery.

  • Page 3: Table Of Contents

    CONTENTS 1. Precaution for use 　…………………………………………　P.2 2. Confirmation of package 　…………………………………… P.5 3. Names and roles of each part 　　　………………………… P.5 4. Inserting of battery 　………………………………………… P.6 5. ELI function 　………………………………………………… P.6 6. Standardization （Zero setting） ……………………………… P.7 7. Measurement on sample 　…………………………………… P.8 8.
  • Page 6 Handling of battery　　　　　　　　　　 WARNING ◇Make sure to use a specified battery or that ◇Don't heat, shortcircuit, burn a battery or supplied with the refractometer as an accessory. take it apart. If done so, it may cause burst When loading the refractometer with a battery, or fire.

  • Page 7: Confirmation Of Package

    ●006P Alkaline Battery 　………………………………………………………………………1 ●Standard liquid 　……………………………………………………………………………1 ●Instruction Manual 　……………………………………………………………………………1 ATAGO's instruments are rigorously inspected to ensure each unit meets the highest standards of quality assurance. 3. Names and roles of each part (1) Liquid Crystal Display (LCD) (2) Sample Stage...

  • Page 8: Inserting Of Battery

    4. Inserting of battery CAUTION ●When loading the instrument with a new battery, carefully do it not to make a mistake in connection of the positive (+) and negative (-) poles of the battery. If they are wrongly connected, it causes a trouble or damage of the refractometer. ●Press the START/OFF button, ZERO setting button or SCALE button to power on the instrument.

  • Page 9: Standardization （Zero Setting

    6. Standardization （Zero setting） CAUTION ●Perform standardization with a standard liquid in a 18 to 25℃ environment. ●When the refractometer is used for the first time after purchase or the battery is replaced, make sure to perform the "standardization"(zero setting) for the refractometer. ●Do not use any metallic implement for dropping the standard liquid on the prism because the metal tool possibly damages the prism surface.

  • Page 10: Measurement On Sample

    7. Measurement on sample WARNING ●When measuring a substance harmful to the human body, be well aware of its properties and put on protective gloves, mask, etc. CAUTION ●Do not use any metallic implement for sampling because the metal tool possibly damages the prism surface.
  • Page 11 How to select the scale Press the SCALE button until the desired scale number is shown. -1 - -2 - 1 : BUTYRO 2 : Refractive Index How to lock the scale Select the scale. Press the ZERO setting (Standardization) button and START/OFF button simultaneously. -2 - [ 2 ] Example:...

  • Page 12: About Data Transmission Function

    8. About Data Transmission Function CAUTION ●When the history of measured data reaches 100, no further measurements can be taken unless all 100 records are deleted. ●The data transmission function can be set to ON / OFF. 8-1. Introduction This instrument stores maximum number of 100 measurement data.This instrument is equipped with NFC（Near Field Communication）...

  • Page 13: Software Installation

    Laptop or PC + USB NFC Reader/Writer Data history can be exported to Microsoft(R) Excel (R)(for Windows(R)) using a NFC software "ATAGO Logger (NFC)." * The app "ATAGO Logger (NFC)" is available for download : http://www.atago.net/ur/ Example of data history read out.

  • Page 14: Data History Readout

    Laptop or PC + USB NFC Reader/Writer (1)Launch ATAGO Logger. (2)Bring the center part (where the 'NFC' logo is) of this instrument in contact with the NFC mark on the IC card reader/writer.

  • Page 15: Delete Data History

    8-6. Delete data history All data history will be deleted from this instrument. CAUTION ●Deleted data history can not be restored. ●When the history of measured data reaches 100, no further measurements Full can be taken unless all 100 records are deleted. ●A data history can not be selected.

  • Page 16: Error Massages

    9. Error messages This instrument alarms erroneous or incomplete operation by error messages. The followings are kinds of error messages. Standardization (Zero setting) error ●Standard liquid is not dripped on the prism surface and Standardization 20.4 (Zero setting) is made in a state of the prism surface being exposed to A A A the air.

  • Page 17: Powering Off

    10. Powering off The instrument will turn itself off after approximately 30 seconds of inactivity. To manually turn it off, hold down the START/OFF button for more than 2 seconds. The backlight stays on for 15 seconds after any button is pressed. 11.

  • Page 18: Specifications

    12. Specifications PR-BUTYRO Butyro 30.0 to 90.0 （Automatic Temperature Compensation） RI 1.4450 to 1.4850 Measurement range （Converted at 40℃、Automatic Temperature Compensation） Butyro 0.1 RI 0.0001 Resolution Temperature 0.1　℃ Butyro ±0.5 (at 40℃) RI ±0.0003 (at 40℃) Measurement accuracy Temperature ±1　℃...

  • Page 19: Repair And Warranty

    ATAGO Service Center or the original seller for details. ● Performance parts for repair ATAGO will endeavor to secure the performance parts for repair up to seven years after manufacturing of this instrument is discontinued. Performance parts are those which are necessary to maintain the operation of this instrument.
  • Page 20 Headquarters : The Front Tower Shiba Koen 23rd Floor 2-6-3 Shiba-koen, Minato-ku Tokyo 105-0011, Japan TEL: 81-3-3431-1943 FAX: 81-3-3431-1945 overseas@atago.net http://www.atago.net/ TEL: 1-425-637-2107 customerservice@atago-usa.com TEL: 91-22-28544915 / 40713232 customerservice@atago-india.com TEL: 66-21948727-9 ,66-21171549 customerservice@atago-thailand.com TEL: 55 16 3913-8400 customerservice@atago-brasil.com TEL: 39 02 36557267 customerservice@atago-italia.com...
