SEON CHQ8PD Quick Installation Manual

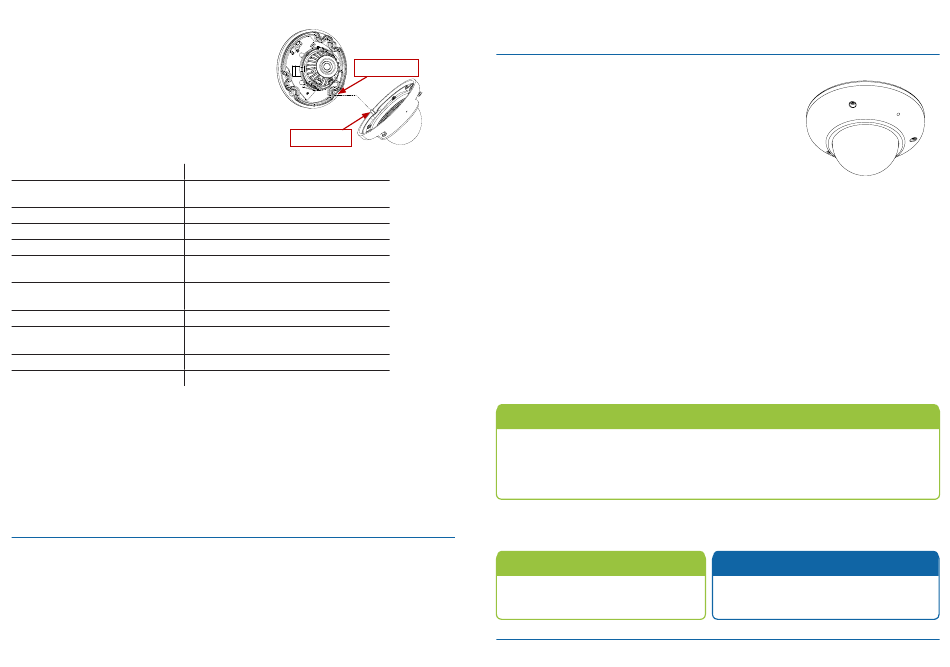

Step 7: Replace Camera Dome

1. Fit the dome onto the base, ensuring the pin on
the dome is aligned with the slot on the base
before tightening the security screws.
2. Ensure the rubber IR boot around the camera lens is
firmly pressed against the inside of the dome.
3. Use the security key to tighten the captive screws.

Specifications

Power Consumption
4 W (IR off); 5.5 W (IR on)
Operating Voltage Range 802.3af (powered by recorder or supported PoE
switch)
Operating Temperature Range -4 to 122°F (-20 to 50°C)
Resolution NX/HX16: 1080p/720p (R1); 320 x 184 (R2)
Infrared LED Lamps 2 high efficiency LEDs
Minimum Illumination
Color: 0.88 lux (F1.6)
B&W, IR LED on: 0 lux
Enclosure Size Diameter: 4.14" (105 mm)
Height: 2.6" (66 mm)
Enclosure Material Solid aluminum alloy
Dome Impact-resistant polycarbonate, anti-glare,
scratch-resistant hard coating, UV protected
Camera Pigtail Connector Length
9.5" (24 cm)
Weight
0.8 lbs (0.35 kg)

Routine Maintenance

Most liquid cleaners or graffiti gel can be used to clean your camera enclosure. Do not use abrasive cleaners
that can scratch the window and reduce visibility of the camera.

Replacing Damaged Housing

If the camera housing or dome is damaged or scratched, order a replacement housing from your camera
distributor.
To remove and replace the housing, follow Step 3 Open the Camera and Step 7 Replace Camera Dome.
Service & Support
If your CHQ8PD dome camera is to be returned for service, please
contact the Seon technical support team (service@seon.com/
1.844.899.7366), provide the model and/or serial# of your unit, and ask
for a Return Merchandise Authorization (RMA) number. An RMA#
allows the support team to better track your product when it comes in for
service. Please show the RMA# on the outside of the package.
ANY PRODUCT SENT WITHOUT AN RMA# MAY BE REFUSED!
Alignment Slot
Alignment Pin
Documentation
Additional copies of this
guide, along with other
supporting documentation
can be found on the
SafeFleet Community (https://
community.seon.com/
documents/)
The CHQ8PD camera with IR is designed for interior use only.

Installation Kit Contents

• 1 CHQ8PD camera, including dome, gasket, local video connector
cable (RCA output jack)
• Weatherproof cap kit
• 2 #10 1" screws with washers
• 1 Security key
• 1 Drilling template

Step 1: Choose Camera Location

1. Determine the location for mounting the camera:
• choose a solid surface to minimize vibration
• choose a location away from access panels, hatches, or doors which may block the camera view
• choose a location away from heat sources
Cameras are usually installed with the cabling running inside the wall panels.
2. Use the supplied drilling guide template to mark the cable (7/8") and screw (5/32") holes on the panel.
3. Use a step-bit to drill the cable hole, and regular bits for the screw holes.
4. Connect the camera harness's RJ45 connector to an NX/HX16 recorder's POE HD CAM port (or a
PoE switch, if applicable).
5. Thread the camera harness from the recorder to the camera location through the panel cable hole.
Tip: RJ45 Protective Cover
The camera harness ships with a protective plastic cover placed over the RJ45 jack to prevent damage to
the connector and the locking tab during installation.
Leave the protective cover in place while routing the cable from the recorder to the camera location.
Remove the cover when you're ready to connect the harness to the camera pigtail.

Step 2: Install Weatherproof Cap and Connect Camera

Tip: Install Weatherproof Cap
We highly recommend installing the supplied
weatherproof cap.
CHQ8PD Dome Camera
Quick Installation Guide
Important: Do not cut or re-crimp cable
Installing the weatherproof cap does not require
cutting the camera harness or re-crimping the cable.
© Safe Fleet | Oct. 2018 | All rights reserved | Part #: 700-1056 R4
