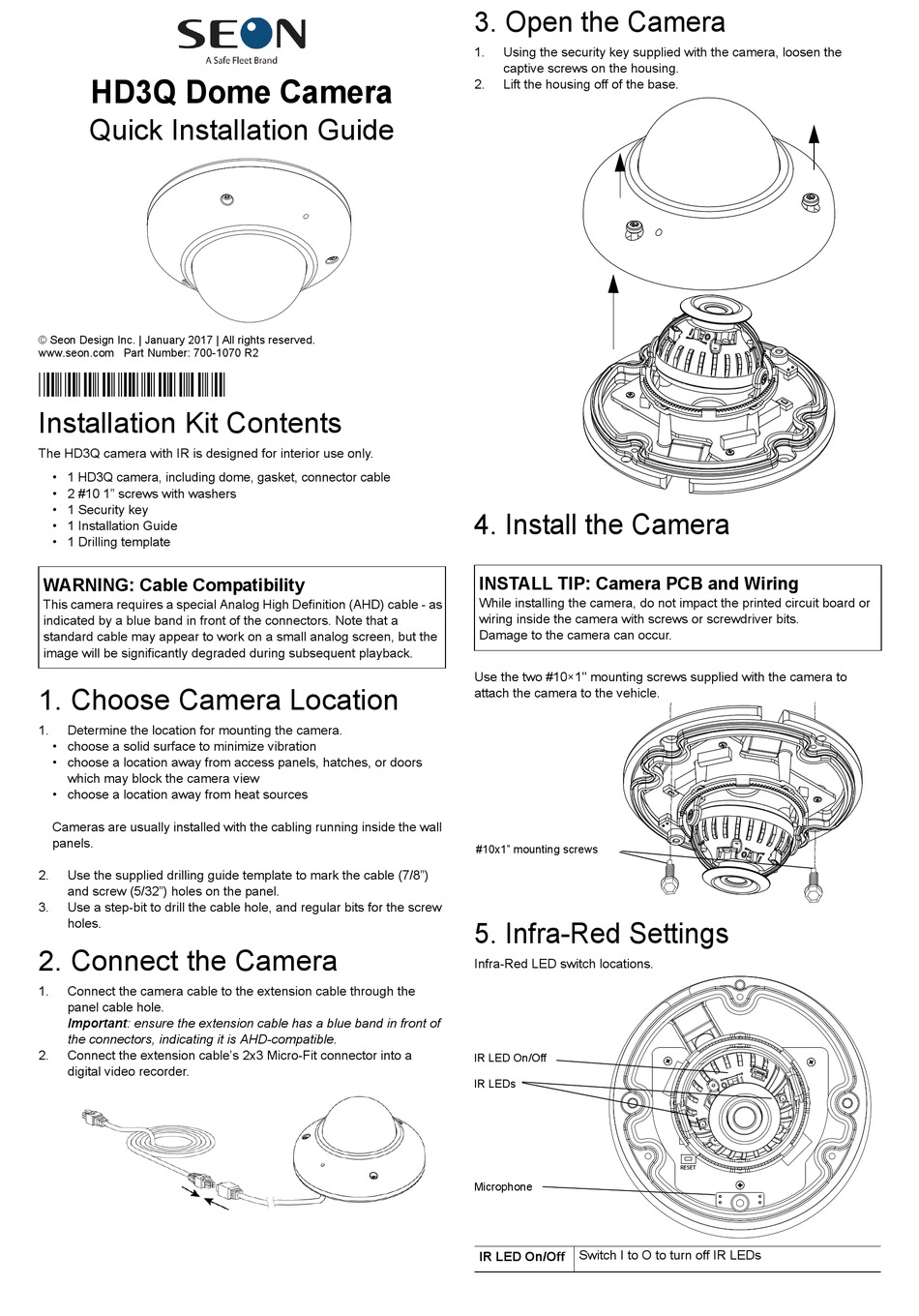

SEON HD3Q Quick Installation Manual

HD3Q Dome Camera
Quick Installation Guide
© Seon Design Inc. | January 2017 | All rights reserved.
www.seon.com Part Number: 700-1070 R2
*700-1056*
Installation Kit Contents
The HD3Q camera with IR is designed for interior use only.
• 1 HD3Q camera, including dome, gasket, connector cable
• 2 #10 1" screws with washers
• 1 Security key
• 1 Installation Guide
• 1 Drilling template
WARNING: Cable Compatibility
This camera requires a special Analog High Definition (AHD) cable - as
indicated by a blue band in front of the connectors. Note that a
standard cable may appear to work on a small analog screen, but the
image will be significantly degraded during subsequent playback.
1. Choose Camera Location
1. Determine the location for mounting the camera.
• choose a solid surface to minimize vibration
• choose a location away from access panels, hatches, or doors
which may block the camera view
• choose a location away from heat sources
Cameras are usually installed with the cabling running inside the wall
panels.
2. Use the supplied drilling guide template to mark the cable (7/8")
and screw (5/32") holes on the panel.
3. Use a step-bit to drill the cable hole, and regular bits for the screw
holes.
2. Connect the Camera
1. Connect the camera cable to the extension cable through the
panel cable hole.
Important: ensure the extension cable has a blue band in front of
the connectors, indicating it is AHD-compatible.
2. Connect the extension cable's 2x3 Micro-Fit connector into a
digital video recorder.
3. Open the Camera
1. Using the security key supplied with the camera, loosen the
captive screws on the housing.
2. Lift the housing off of the base.
4. Install the Camera
INSTALL TIP: Camera PCB and Wiring
While installing the camera, do not impact the printed circuit board or
wiring inside the camera with screws or screwdriver bits.
Damage to the camera can occur.
Use the two #10×1" mounting screws supplied with the camera to
attach the camera to the vehicle.
#10x1" mounting screws
5. Infra-Red Settings
Infra-Red LED switch locations.
IR LED On/Off
IR LEDs
Microphone
Switch I to O to turn off IR LEDs
IR LED On/Off
