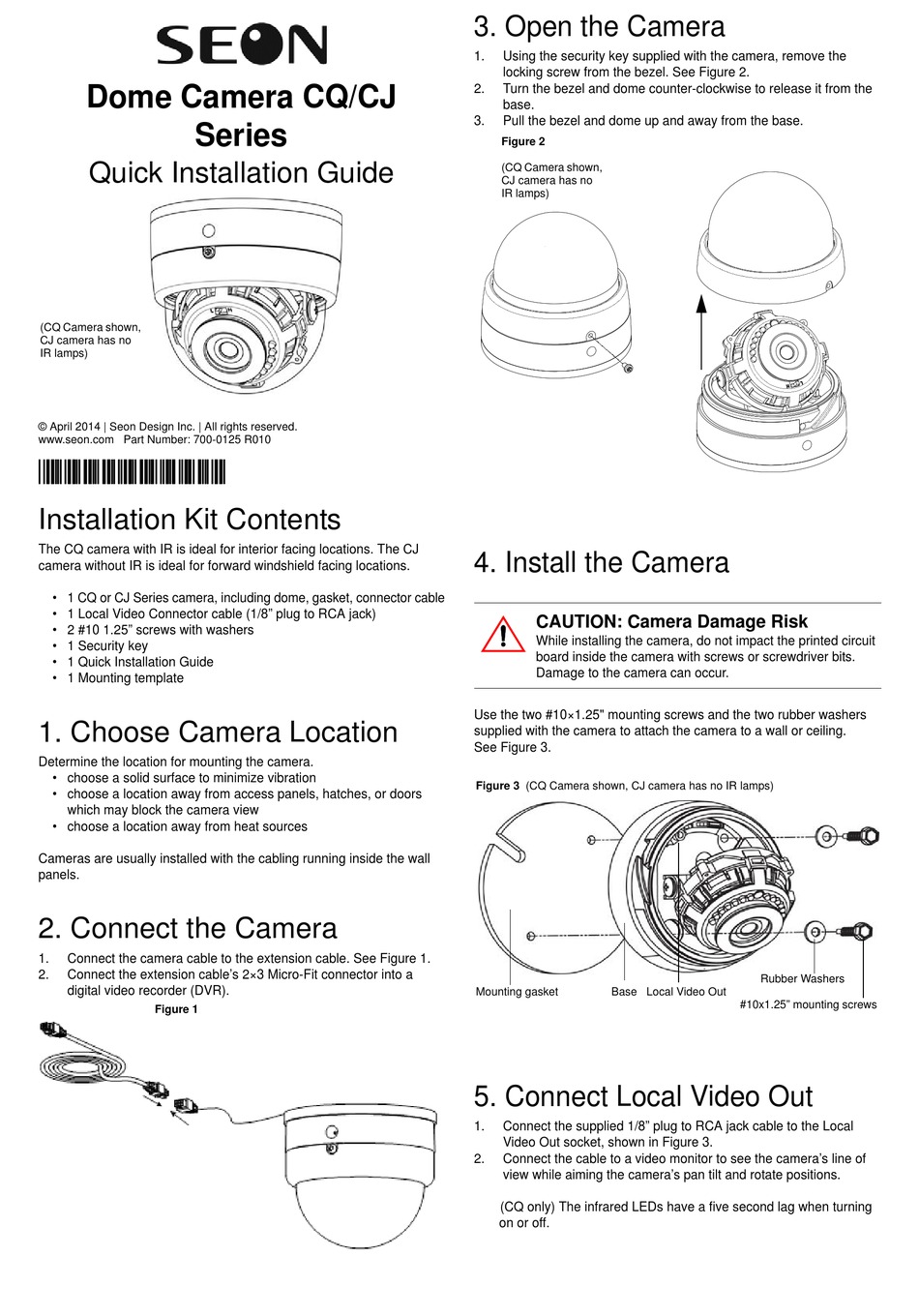

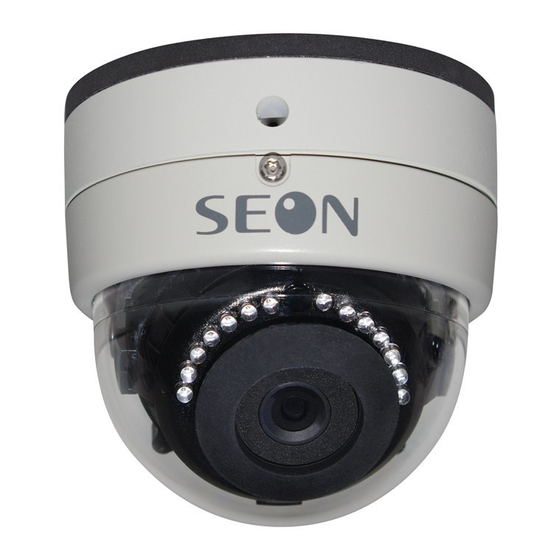

SEON CQ Series Quick Installation Manual

Dome Camera CQ/CJ
Series
Quick Installation Guide
(CQ Camera shown,
CJ camera has no
IR lamps)
© April 2014 | Seon Design Inc. | All rights reserved.
www.seon.com Part Number: 700-0125 R010
*700-0125*

Installation Kit Contents

The CQ camera with IR is ideal for interior facing locations. The CJ
camera without IR is ideal for forward windshield facing locations.
• 1 CQ or CJ Series camera, including dome, gasket, connector cable
• 1 Local Video Connector cable (1/8" plug to RCA jack)
• 2 #10 1.25" screws with washers
• 1 Security key
• 1 Quick Installation Guide
• 1 Mounting template

1. Choose Camera Location

Determine the location for mounting the camera.
• choose a solid surface to minimize vibration
• choose a location away from access panels, hatches, or doors
which may block the camera view
• choose a location away from heat sources
Cameras are usually installed with the cabling running inside the wall
panels.

2. Connect the Camera

1. Connect the camera cable to the extension cable. See Figure 1.
2. Connect the extension cable's 2×3 Micro-Fit connector into a
digital video recorder (DVR).
Figure 1

3. Open the Camera

1. Using the security key supplied with the camera, remove the
locking screw from the bezel. See Figure 2.
2. Turn the bezel and dome counter-clockwise to release it from the
base.
3. Pull the bezel and dome up and away from the base.
Figure 2
(CQ Camera shown,
CJ camera has no
IR lamps)

4. Install the Camera

CAUTION: Camera Damage Risk
While installing the camera, do not impact the printed circuit
board inside the camera with screws or screwdriver bits.
Damage to the camera can occur.
Use the two #10×1.25" mounting screws and the two rubber washers
supplied with the camera to attach the camera to a wall or ceiling.
See Figure 3.
Figure 3 (CQ Camera shown, CJ camera has no IR lamps)
Mounting gasket Base Local Video Out

5. Connect Local Video Out

1. Connect the supplied 1/8" plug to RCA jack cable to the Local
Video Out socket, shown in Figure 3.
2. Connect the cable to a video monitor to see the camera's line of
view while aiming the camera's pan tilt and rotate positions.
(CQ only) The infrared LEDs have a five second lag when turning
on or off.
Rubber Washers
#10x1.25" mounting screws
