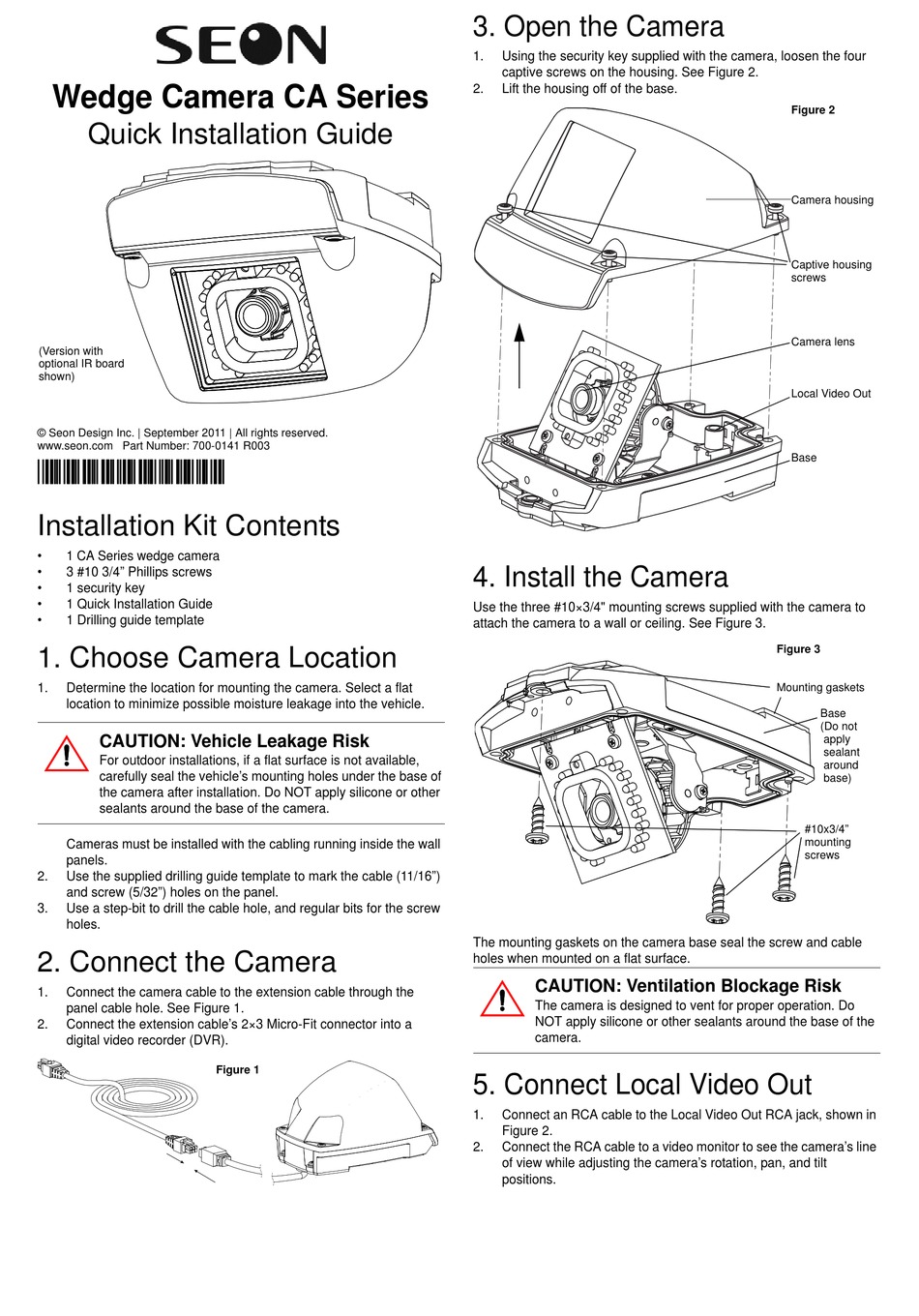

SEON CA Series Quick Installation Manual

Wedge Camera CA Series
Quick Installation Guide
(Version with
optional IR board
shown)
© Seon Design Inc. | September 2011 | All rights reserved.
www.seon.com Part Number: 700-0141 R003
*700-0141*
Installation Kit Contents
• 1 CA Series wedge camera
• 3 #10 3/4" Phillips screws
• 1 security key
• 1 Quick Installation Guide
• 1 Drilling guide template
1. Choose Camera Location
1. Determine the location for mounting the camera. Select a flat
location to minimize possible moisture leakage into the vehicle.
CAUTION: Vehicle Leakage Risk
For outdoor installations, if a flat surface is not available,
carefully seal the vehicle's mounting holes under the base of
the camera after installation. Do NOT apply silicone or other
sealants around the base of the camera.
Cameras must be installed with the cabling running inside the wall
panels.
2. Use the supplied drilling guide template to mark the cable (11/16")
and screw (5/32") holes on the panel.
3. Use a step-bit to drill the cable hole, and regular bits for the screw
holes.
2. Connect the Camera
1. Connect the camera cable to the extension cable through the
panel cable hole. See Figure 1.
2. Connect the extension cable's 2×3 Micro-Fit connector into a
digital video recorder (DVR).
Figure 1
3. Open the Camera
1. Using the security key supplied with the camera, loosen the four
captive screws on the housing. See Figure 2.
2. Lift the housing off of the base.
4. Install the Camera
Use the three #10×3/4" mounting screws supplied with the camera to
attach the camera to a wall or ceiling. See Figure 3.
The mounting gaskets on the camera base seal the screw and cable
holes when mounted on a flat surface.
CAUTION: Ventilation Blockage Risk
The camera is designed to vent for proper operation. Do
NOT apply silicone or other sealants around the base of the
camera.
5. Connect Local Video Out
1. Connect an RCA cable to the Local Video Out RCA jack, shown in
Figure 2.
2. Connect the RCA cable to a video monitor to see the camera's line
of view while adjusting the camera's rotation, pan, and tilt
positions.
Figure 2
Camera housing
Captive housing
screws
Camera lens
Local Video Out
Base
Figure 3
Mounting gaskets
Base
(Do not
apply
sealant
around
base)
#10x3/4"
mounting
screws
