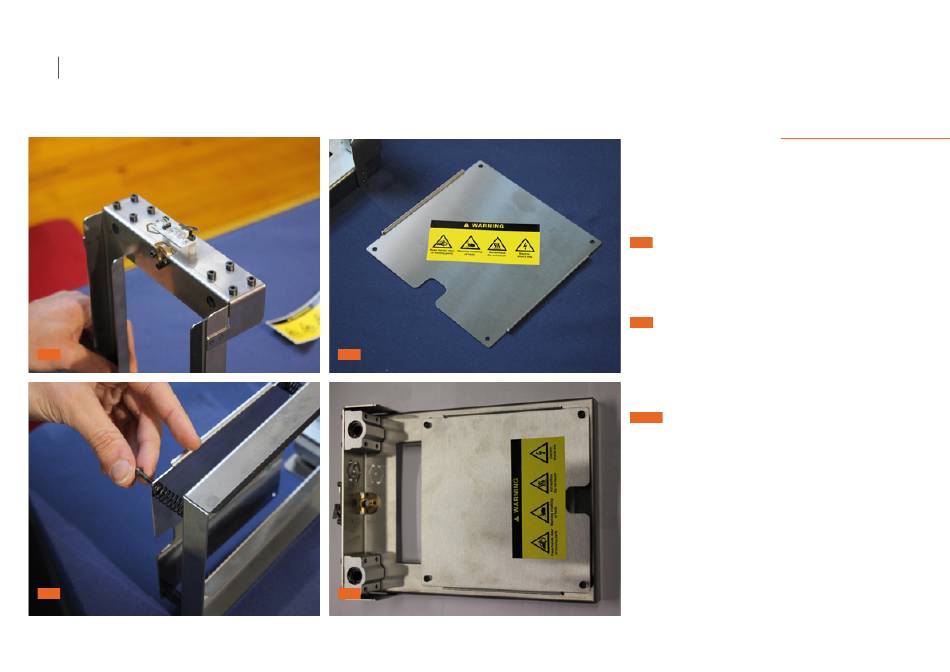

assEmBlyINg ThE pRINTINg BED
Fig. 5
Fasten the end-stop to the two nylon
stand-offs using M3x6 bolts (2): the
lever must be facing upwards.
Fig. 6
Attach the security sticker to the
plate. The cut out must be pointed
in your direction and the two tabs
should face upwards.
Fig. 7- 8
Now insert M3x25 bolts (4) into the
printing bed, as pictured, then place
the D10 springs on the bolts and fasten
the print bed to the Z carriage. Leave
the printing bed's cut out at one end of
the shoulder with the Z axis bearings.
You may need to use just a bit of
threadlocker between the printing bed
and the Z carriage.
