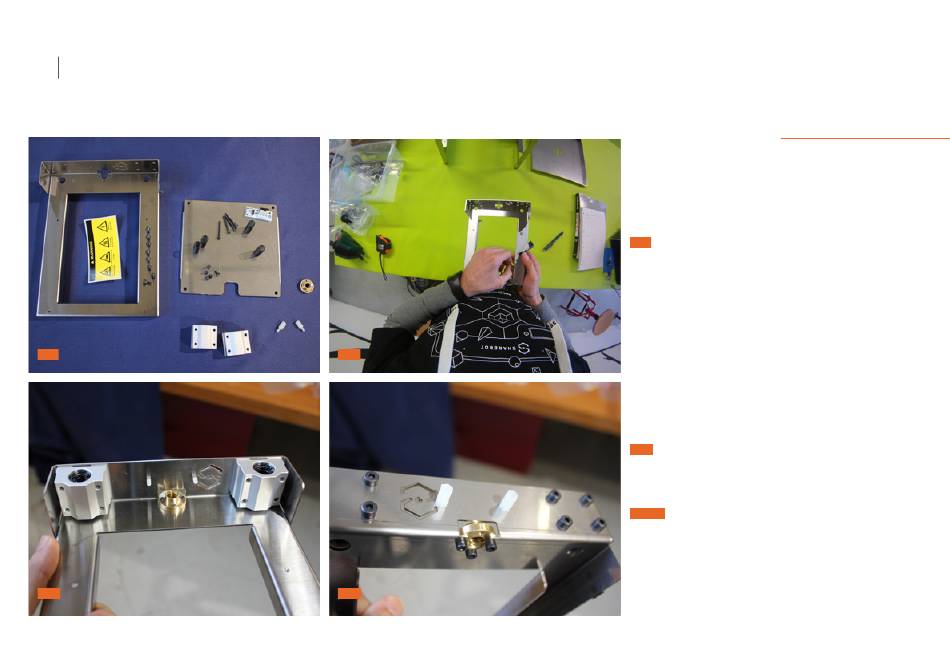

assEmBlyINg ThE pRINTINg BED
Fig. 1 Be very careful since they are plastic.
Z carriage Take the brass nut block from the Z
—
D8 linear bearings (2) motor and tightly secure with M3x6
—
M4x8 bolts (8) bolts (3) to the Z carriage.
—
M3x25 bolts (4)
—
D10 springs (4)
—
Printing bed
—
Security sticker
—
M3x10 nylon stand-offs (2)
—
M3x6 bolts (5)
—
End-stop sensor
—
Z nut brass journal box
—
Fig. 2
Remove the plastic wrapping from
the Z carriage.
Fig. 3 - 4
Place the bearings on the carriage's
print bed side and use M4x8 bolts (4)
to secure it, as in the picture. Tighten
the M3x10 nylon stand-offs (2) on
back part (opposite to the bearings).
