BasE assEmBly

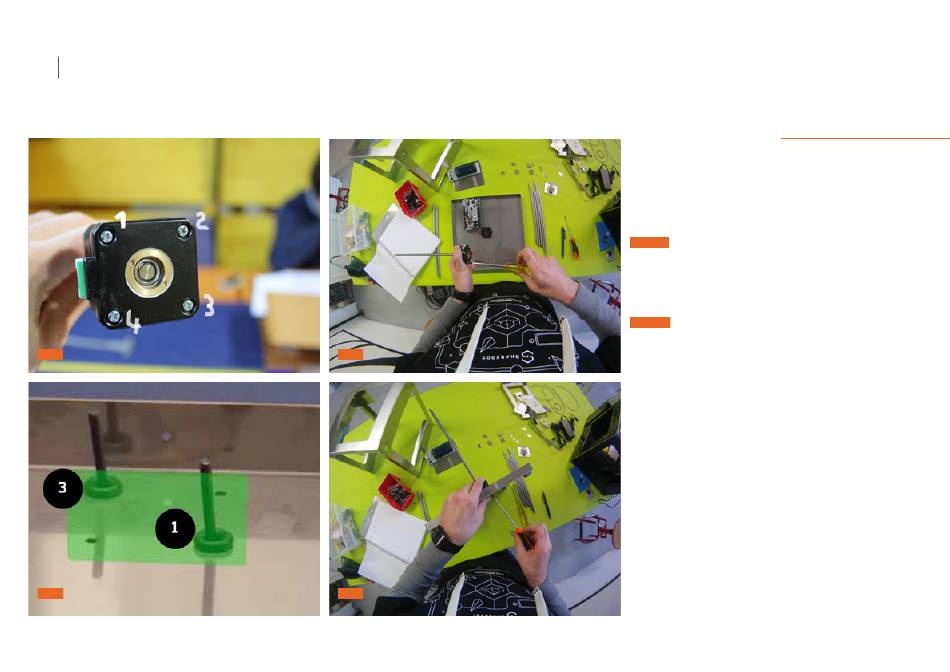

Fig. 12 - 13
Remove screw no. 1 and 3 with a
crosshead screwdriver (fig. 12) from
the bottom of the tray (fig. 13).
Fig. 14 - 15
Secure the Z motor. You need M3x35
bolts (2) and o-rings (2). O-rings
are necessary to soften the motor
vibrations. Put M3x35 bolts in
position 1 and 3 from the rubber feet
side. From the other side of the tray,
place o-rings on the bolts then tightly
secure the Z motor to the bolts. The
o-rings must lie under the motor.
Remove the bar cover and unscrew
the brass nut block from the Z screw.
