Packing List

In addition to this guide, the package includes the following items:

I-7540D-MTCP

I-7540DM-MTCP

Technical Support

service@icpdas.com

www.icpdas.com

 For Desktop Web

I-7540D(M)-MTCP Quick Start

Plastic Rail

Resources

How to search for drivers, manuals and

spec information on ICP DAS website.

 For Mobile Web

I-7540D-MTCP

v1.10, Jul 2022

Screw Driver

CA-0910

Need help?

Do you have a question about the I-7540D-MTCP and is the answer not in the manual?

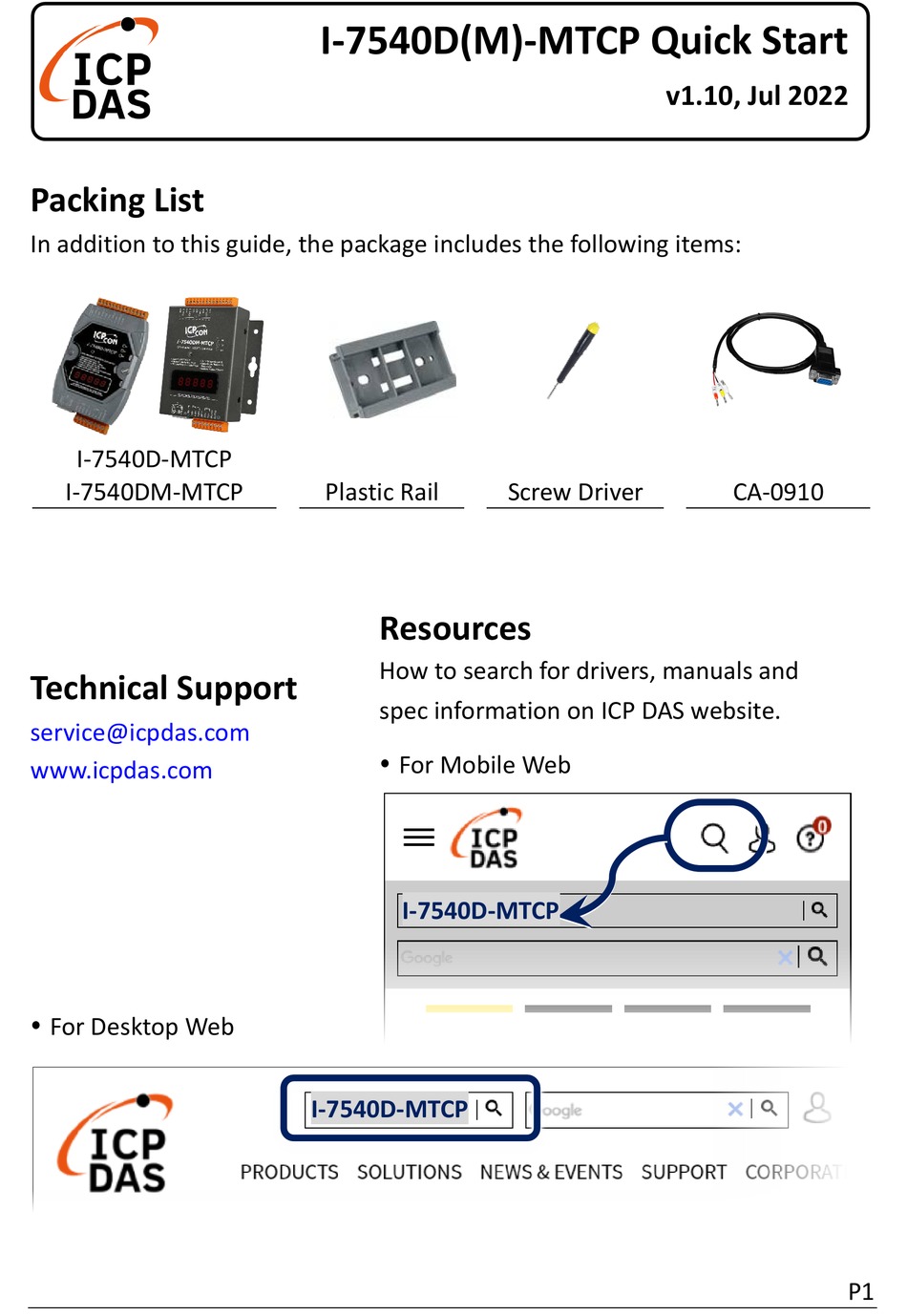

Page 1 I-7540D(M)-MTCP Quick Start v1.10, Jul 2022 Packing List In addition to this guide, the package includes the following items: I-7540D-MTCP I-7540DM-MTCP Plastic Rail Screw Driver CA-0910 Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website.
Page 2 I-7540D(M)-MTCP. I-7540D(M)-MTCP default IP information： IP: 192.168.255.1 Gateway: 192.168.0.1 Mask: 255.255.0.0 2 Download I-7540D-MTCP Utility Utility download link: https://www.icpdas.com/en/download/show.php?num=926&mod el=I-7540D-MTCP-G The utility file name is I7540D-MTCP_vx.xx.exe (vx.xx is version number). The utility execute file can be executed directly.
Page 3 3 I7540D-MTCP Utility Connection Click Connect icon to open connection dialog. Input IP address of I-7540D(M)-MTCP and then click “Connect” button to connect with I-7540D(M)-MTCP. 4 Configure I-7540D(M)-MTCP After connect to I-7540D(M)-MTCP, please select to “Setting” page and set “CAN Specification” and “CAN Bus Baudrate”...
Page 4 Step4. If I-7540D(M)-MTCP had received CAN message, it will be show at “Receive” list box below the utility. Step5. Select function code 16 and fill in CAN message that want be send. The I-7540D(M)-MTCP will send the CAN message after click “Send” button. CAN device receive message...
