ICP DAS USA I-7540D-MTCP Quick Start User Manual

Ethernet/Modbus TCP/Modbus RTU to CAN Converter
1. Introduction
This manual introduces the user to the methods used to implement the
I-7540D-MTCP module into their applications in a quick and easy way. This
will only provide with the basic instructions. For more detailed information,
please refer to the I-7540D-MTCP user manual located on the ICPDAS
CD-ROM or download it from the ICPDAS web site:
Fieldbus_CD:\CAN\Converter\I-7540D-MTCP\
http://www.icpdas.com/products/Remote_IO/can_bus/I-7540-MTCP.htm
The goal of this manual is focused on helping users to quickly familiarize
themselves with the I-7540D-MTCP module and the CAN-Modbus TCP
/Modbus RTU communication converter. Here, we use two I-7540D-MTCP
modules (called the I-7540D-MTCP_A and the I-7540D-MTCP_B) as the
example will demonstrate how to use the I-7540D-MTCP modules. The

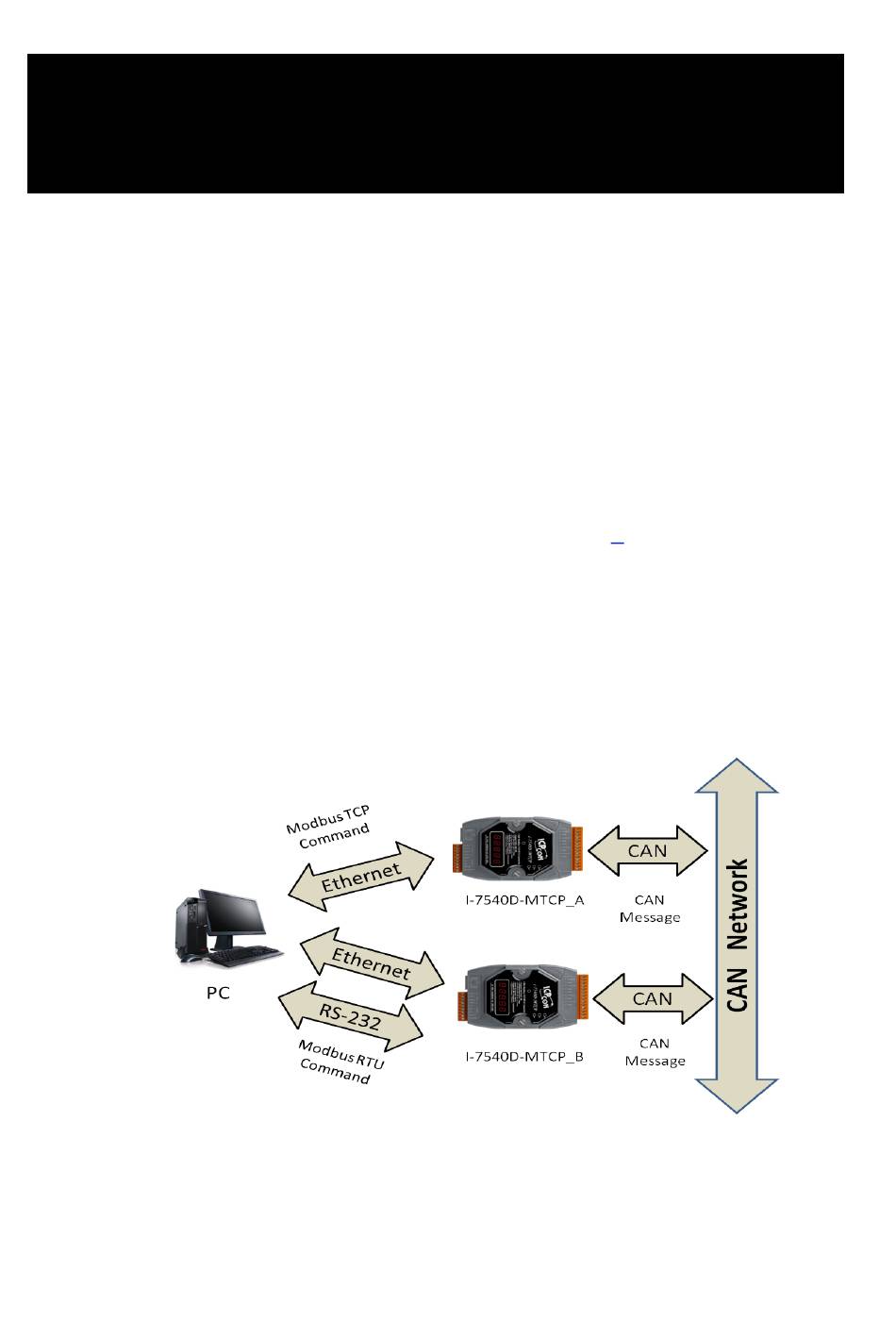

architecture of this example is depicted below.
When the I-7540D-MTCP receives a valid Modbus TCP command, it can
convert this command into a CAN message and transmits it into the CAN
network. Another I-7540D-MTCP will receive the CAN message then store it
into the buffer. Meanwhile, user can use Modbus RTU command to get the
message back.
