Iron King S-1.8M Assembly

Portable squat stand
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

S-1.
PORTABLE
8M
SQUAT STAND
# t ra i n i n c o l o u r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-1.8M and is the answer not in the manual?

Questions and answers

Related Manuals for Iron King S-1.8M

Summary of Contents for Iron King S-1.8M

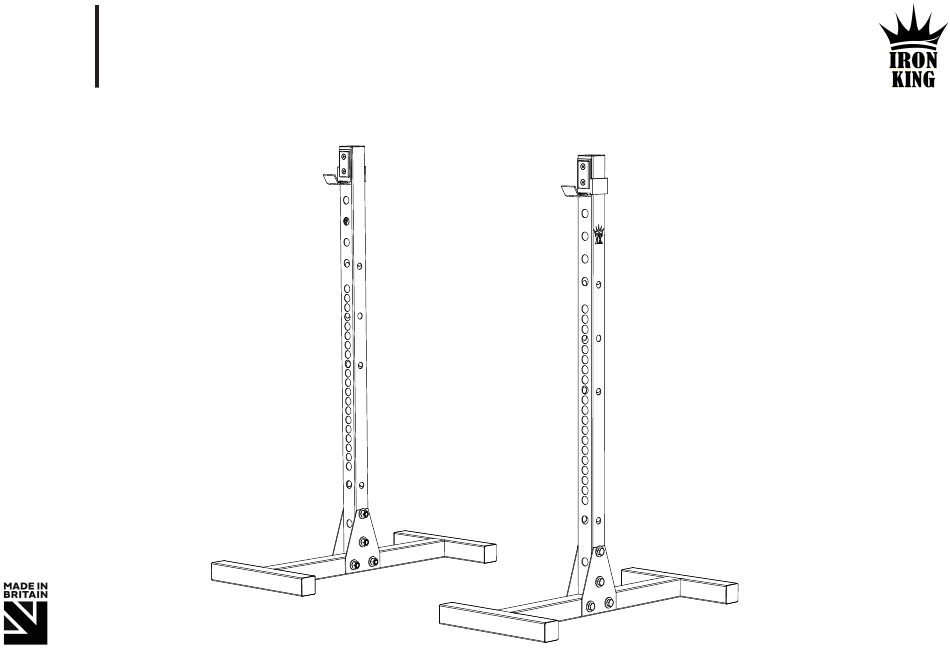

  • Page 1 S-1. PORTABLE SQUAT STAND # t ra i n i n c o l o u r...
  • Page 2 S-1.8M PRODUCT SPECIFICATION WARNING TO AVOID POSSIBLE HARM, READ AND FOLLOW MAX TRAINING WEIGHT 400KG THIS ADVICE AND THE FOLLOWING INSTRUCTIONS. MISUSE OF THE EQUIPMENT OR INCORRECT PRODUCT WEIGHT 80KG ASSEMBLY MAY RESULT IN SERIOUS OR FATAL INJURY. ENSURE THAT ALL PARTS ARE UNDAMAGED...
  • Page 3 S-1.8M PARTS LIST TOOLING 19MM SPANNER STEP LADDER x2 UPRIGHTS [1] x2 BASE FEET [2] x2 ‘ J ‘ HOOKS [3] x4 BRACE PLATE [4] x8 M12 BOLT [5] x8 M12 NUT [6] x16 M12 WASHER [7]...
  • Page 4 STEP 1 ASSEMBLY ATTACH x2 UPRIGHTS [1] TO APPROX THE MIDDLE OF THE BASE FEET [2]. ENSURE THAT THE IRON KING LOGOS ARE AT THE TOP END AND FACING OUTWARD FROM THE RACK. FASTEN TOGETHER USING x4 BRACE PLATES [4], x8 BOLTS [5], x8 NUTS [6] AND x16 WASHERS [7].
  • Page 5 STEP 2 ASSEMBLY ATTACH THE x2 ‘ J ’ HOOKS [3] TO THE UPRIGHTS. HOLD THE ‘ J ’ HOOK UPRIGHT SO THAT IT LOOKS LIKE 90° A ‘ J ’. TURN THE ‘ J ’ HOOKS TO THE SIDE AND PLACE THE PIN INTO A HOLE ON THE FRONT OF THE RACK.
  • Page 6 FOLLOW Iron King @iron_king_gym equipment #trainincolour REVIEW www.ironking.uk. c om CONTACT sales@ironking.uk. c om 0121 326 9902...
