Iron King SR-70 Assembly

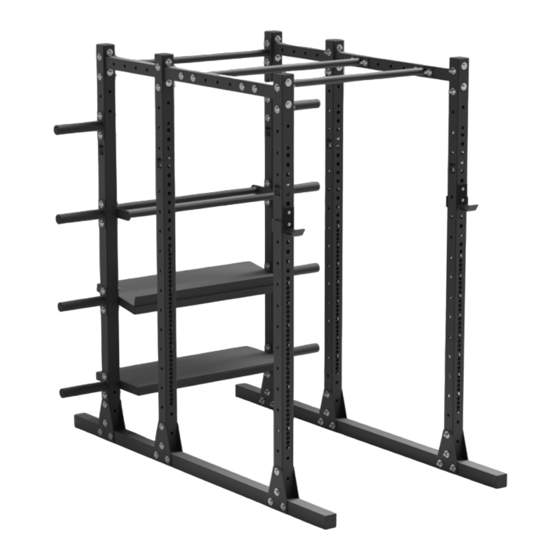

Classic squat rack with weight storage
Hide thumbs
Also See for SR-70:
- Instruction manual (11 pages) ,
- Assembly instructions manual (10 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Iron King SR-70
Summary of Contents for Iron King SR-70
- Page 1 CLASSIC SQUAT RACK WITH WEIGHT STORAGE # t ra i n i n c o l o u r...
-
Page 2: Product Specification
SR-70 PRODUCT SPECIFICATION WARNING MAX TRAINING WEIGHT TO AVOID POSSIBLE HARM, READ AND FOLLOW 450KG THIS ADVICE AND THE FOLLOWING INSTRUCTIONS. MISUSE OF THE EQUIPMENT OR INCORRECT PRODUCT WEIGHT 120KG ASSEMBLY MAY RESULT IN SERIOUS OR FATAL INJURY. ENSURE THAT ALL PARTS ARE UNDAMAGED... -
Page 3: Parts List

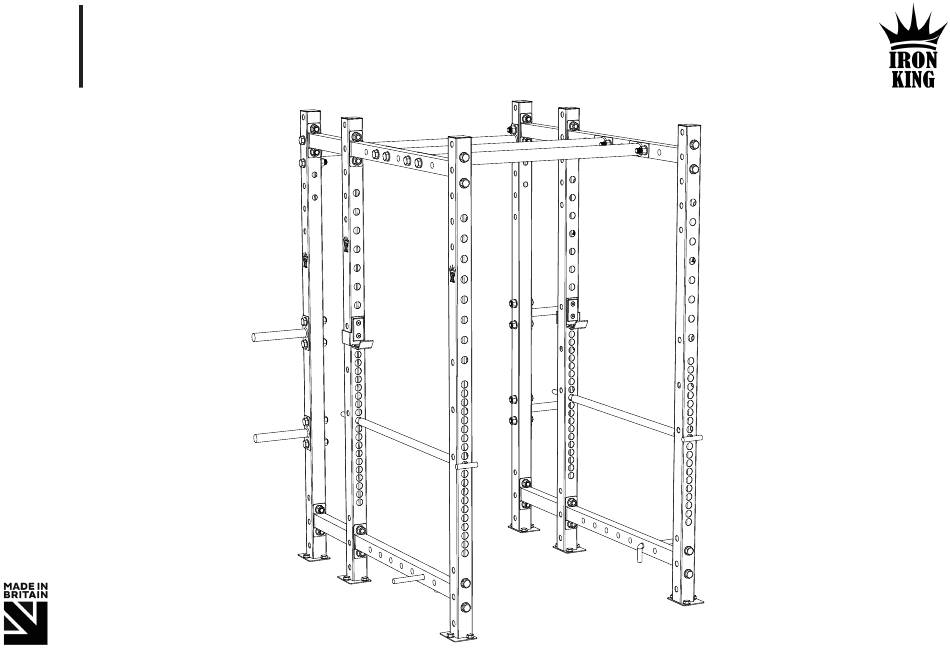

SR-70 PARTS LIST TOOLING M8 FLOOR FIXINGS 19MM SPANNER STEP LADDER DRILL DRIVER SPIRIT LEVEL x4 UPRIGHTS [1] x4 HORIZONTAL BRACES [2] x3 PULL UP BAR [3] x2 ‘ J ‘ HOOKS [4] x2 BAND PEGS [5] x2 SAFETY PINS [6]... - Page 4 FOLLOW THE ADJACENT IMAGE TO FIX TOGETHER THE x2 UPRIGHTS [1] AND x1 STORAGE UPRIGHT [11], USING x2 HORIZONTAL BRACES [2] FOR THE UPRIGHTS AND STORAGE HORIZONTALS [12] FOR THE STORAGE UPRIGHTS. ENSURE THAT THE IRON KING LOGOS ARE FACING UPWARDS. BOLTS [8], NUTS...
- Page 5 STEP 2 ASSEMBLY ATTACH x2 PULL UP BARS [3] TO THE HOLES ON ONE OF THE TOP UPRIGHT BRACES AND THE REMAINING PULL UP BAR TO ANY OF THE TWO HOLES ON THE INSIDE OF THE STORAGE UPRIGHT. ENSURE THAT IRON KING LOGO...
- Page 6 STEP 3 ASSEMBLY OFFER BOTH HALVES OF THE RACK UP TO EACH OTHER, LINING THE PULL UP BARS UP TO THE CORRESPONDING HOLES ON THE OTHER HALF. BOLTS [8], NUTS WASHERS [10] FASTEN. REQUIRED x12 [10] x6 [8] x6 [9]...
- Page 7 STEP 4 ASSEMBLY WEIGHT HOLDERS [13] ANY OF THE HOLES ON THE OUTSIDE FACES STORAGE UPRIGHTS. BOLTS [8], NUTS WASHERS [10] FASTEN. REQUIRED x8 [8] x8 [9] x16 [10] x4 [13]...
- Page 8 DO THIS IN A MANNER WHICH IS APPROPRIATE SPECIFIC FLOOR BEING USED. ENSURE THAT FIRST PLUM WITH FLOOR USING SPIRIT LEVEL. DISCLAIMER OWNER’S DISCRETION IS REQUIRED FOR THIS STEP AND IRON KING ARE NOT RESPONSIBLE FOR ANY DAMAGE INJURY CAUSED.
- Page 9 STEP 6 ASSEMBLY ATTACH THE x2 SAFETY PIN AND PIPES [6/7]. HOLD THE x2 PIN PIPES BETWEEN THE HOLES ON THE UPRIGHTS (AT PREFERRED HEIGHT) AND THEN PASS THE PIN THROUGH ALL CORRESPONDING HOLES PIPE UNTIL IT IS ALL THE WAY THROUGH. THIS HEIGHT ADJUSTED...
- Page 10 STEP 7 ASSEMBLY ATTACH THE x2 J HOOKS [4] TO THE UPRIGHTS. HOLD THE J HOOK UPRIGHT SO THAT IT LOOKS LIKE A ‘ J ’. TURN THE J HOOKS 90° TO THE SIDE AND 90° PLACE THE PIN INTO ANY OF THE UPRIGHT HOLES. THE HOOK CAN NOW BE TURNED BACK UPRIGHT SO IT SITS FLUSH WITH THE RACK UPRIGHT.
- Page 11 STEP 8 ASSEMBLY x2 BAND PEGS [5] CAN BE PLACED IN BOTH SIDES BOTTOM HORIZONTALS. PLACE THEM THROUGH ANY OF THE HOLES FROM THE INSIDE OF THE RACK, SO THAT THE LONGEST END OF THE PEGS ARE PROTRUDING OUTWARDS. ENSURE THAT BOTH PEGS...
- Page 12 FOLLOW Iron King @iron_king_gym equipment #trainincolour REVIEW www.ironking.uk. c om CONTACT sales@ironking.uk. c om 0121 326 9902...
