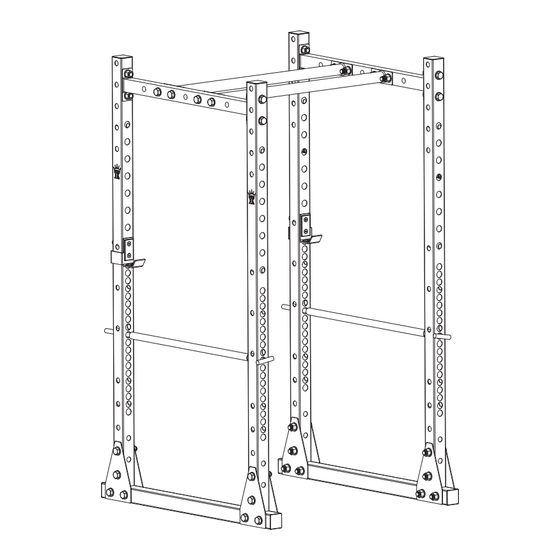

- Page 1 CLASSIC SQUAT RACK W/ SKID BASE # t ra i n i n c o l o u r...
-
Page 2: Product Specification

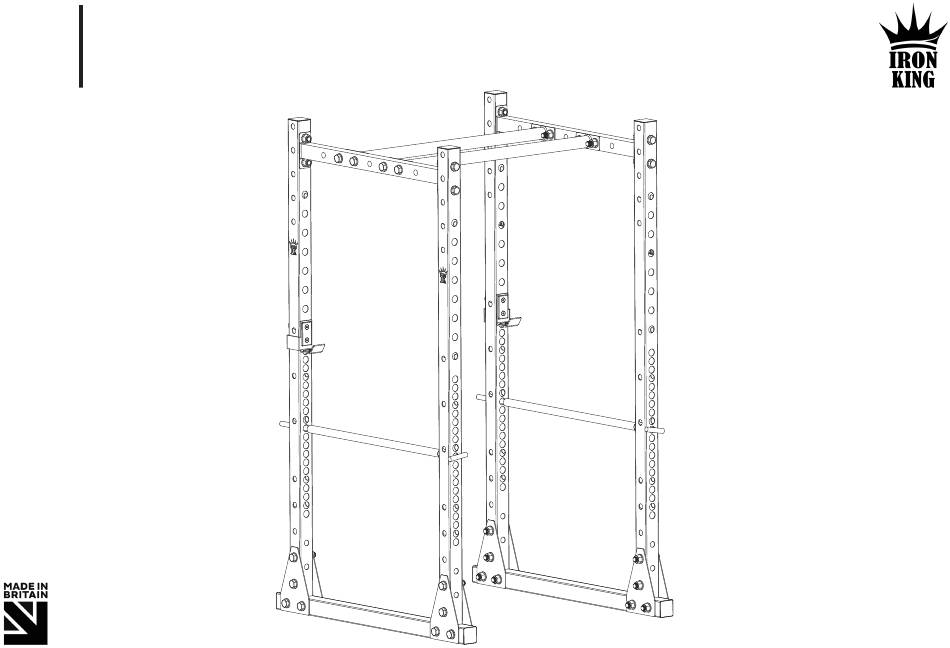

SR-70 PRODUCT SPECIFICATION WARNING MAX TRAINING WEIGHT TO AVOID POSSIBLE HARM, READ AND FOLLOW 450KG THIS ADVICE AND THE FOLLOWING INSTRUCTIONS. MISUSE OF THE EQUIPMENT OR INCORRECT PRODUCT WEIGHT 100KG ASSEMBLY MAY RESULT IN SERIOUS OR FATAL INJURY. ENSURE THAT ALL PARTS ARE UNDAMAGED... -
Page 3: Parts List
SR-70 PARTS LIST TOOLING 19MM SPANNER STEP LADDER SPIRIT LEVEL x4 UPRIGHTS [1] x2 SKID FEET [2] x8 BRACE PLATES [3] x32 M12 BOLT [6] x2 HORIZONTAL BRACES [4] x2 PULL UP BAR [5] x32 M12 NUT [7] x64 M12 WASHER [8]... - Page 4 BASE FOOT [2] USING x4 BRACE PLATES [3], x8 BOLTS [6], x8 NUTS [7] AND x16 WASHERS [8]. ENSURE THAT THE IRON KING LOGOS ON THE UPRIGHTS ARE FACING THE SAME DIRECTION AS ONE OF THE LONGEST EDGES OF THE FEET.
- Page 5 STEP 2 ASSEMBLY ATTACH x2 HORIZONTAL BRACES [4] TO THE TWO TOP MOST HOLES ON THE URRIGHTS, SO THAT THEY ARE PARALLEL WITH THE BASE FEET. USE x8 BOLTS [6], x8 NUTS [7] AND x16 WASHERS [8]. REQUIRED x2 [4] x8 [6] x8 [7] x16 [8]...
- Page 6 STEP 3 ASSEMBLY ATTACH x2 PULL UP BARS [5] TO THE HOLES ON ONE OF THE TOP HORIZONTAL BRACES. ENSURE THAT THE IRON KING LOGOS ON UPRIGHTS FACING OUTWARDS. USE x4 BOLTS [6], x4 NUTS [7] AND x8 WASHERS [8].
- Page 7 STEP 4 ASSEMBLY OFFER BOTH HALVES OF THE RACK UP EACH OTHER, LINING HOLES ON THE HORIZONAL BRACE UP TO THE CORRESPONDING HOLES ON THE PULL UP BAR. BOLTS [6], NUTS WASHERS FASTEN. REQUIRED x8 [8] x4 [6] x4 [7]...
- Page 8 STEP 5 ASSEMBLY ATTACH THE x2 SAFETY PIN AND PIPES [9/10]. HOLD THE x2 PIN PIPES BETWEEN THE HOLES ON THE UPRIGHTS (AT PREFERRED HEIGHT) AND THEN PASS THE PIN THROUGH ALL CORRESPONDING HOLES PIPE UNTIL IT IS ALL THE WAY THROUGH. THIS HEIGHT ADJUSTED...
- Page 9 STEP 6 ASSEMBLY ATTACH THE x2 J HOOKS [11] TO THE UPRIGHTS. HOLD THE J HOOK UPRIGHT SO THAT IT LOOKS LIKE A ‘ J ’. TURN THE J HOOKS 90° TO THE SIDE AND PLACE THE PIN INTO A HOLE ON THE FRONT OF THE RACK. 90°...
