Summary of Contents for Iron King S-1.8M

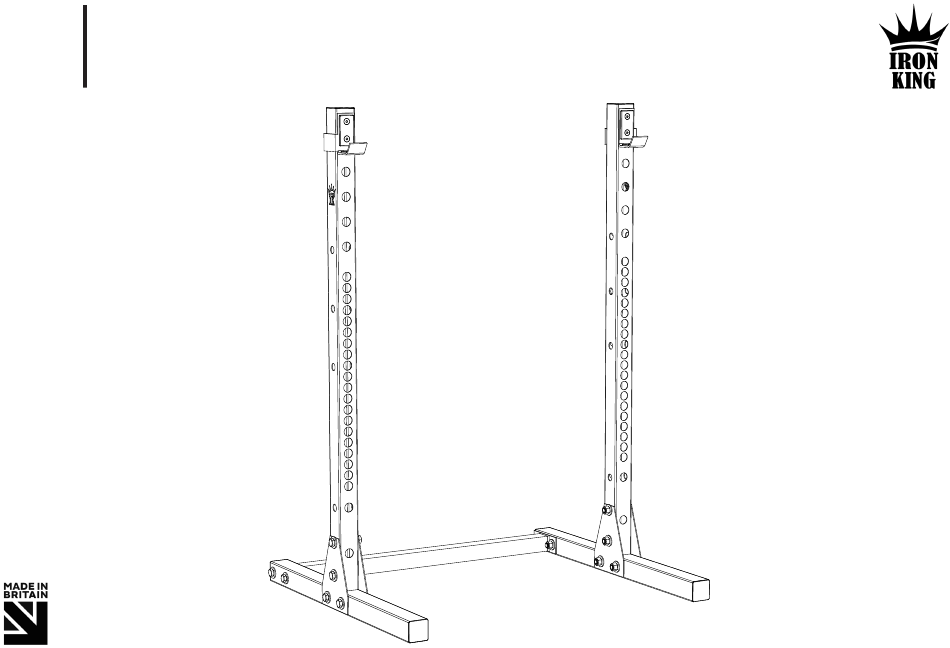

- Page 1 S-1. SQUAT STAND # t ra i n i n c o l o u r...
- Page 2 S-1.8M PRODUCT SPECIFICATION WARNING TO AVOID POSSIBLE HARM, READ AND FOLLOW MAX TRAINING WEIGHT 350KG THIS ADVICE AND THE FOLLOWING INSTRUCTIONS. MISUSE OF THE EQUIPMENT OR INCORRECT PRODUCT WEIGHT 55KG ASSEMBLY MAY RESULT IN SERIOUS OR FATAL INJURY. ENSURE THAT ALL PARTS ARE UNDAMAGED...
- Page 3 S-1.8M PARTS LIST TOOLING 19MM SPANNER STEP LADDER x2 UPRIGHTS [1] x2 BASE FEET [2] x4 BRACE PLATE [5] x1 BASE HORIZONTAL [3] x2 ‘ J ‘ HOOKS [4] x12 M12 BOLT [8] x12 M12 NUT [6] x24 M12 WASHER [7]...
- Page 4 STEP 1 ASSEMBLY PLACE x2 BASE LEGS [2] ON THE GROUND, PARALLEL EACH OTHER WITH BASE HORIZONTAL [3] IN BETWEEN AND PERPENDICULAR TO THEM. LINE BASE HORIZONTAL WITH HOLES BASE LEGS. BOLTS [8], NUTS WASHERS ATTACH TOGETHER. REQUIRED x2 [2] x1 [3] x4 [6] x8 [7]...
- Page 5 STEP 2 ASSEMBLY ATTACH x2 UPRIGHTS [1] TO APPROX THE MIDDLE OF THE BASE FEET. ENSURE THAT THE IRON KING LOGOS ARE AT THE TOP END AND FACING OUTWARD FROM THE RACK. FASTEN TOGETHER USING x4 BRACE PLATES [5], x8 BOLTS [8], x8 NUTS [6] AND x16 WASHERS [7].
- Page 6 STEP 3 ASSEMBLY ATTACH THE x2 ‘ J ’ HOOKS [4] TO THE UPRIGHTS. HOLD THE ‘ J ’ HOOK UPRIGHT SO THAT IT LOOKS LIKE 90° A ‘ J ’. TURN THE ‘ J ’ HOOKS TO THE SIDE AND PLACE THE PIN INTO A HOLE ON THE FRONT OF THE RACK.
- Page 7 FOLLOW Iron King @iron_king_gym equipment #trainincolour REVIEW www.ironking.uk. c om CONTACT sales@ironking.uk. c om 0121 326 9902...
