Iron King WM-70 Quick User Manual

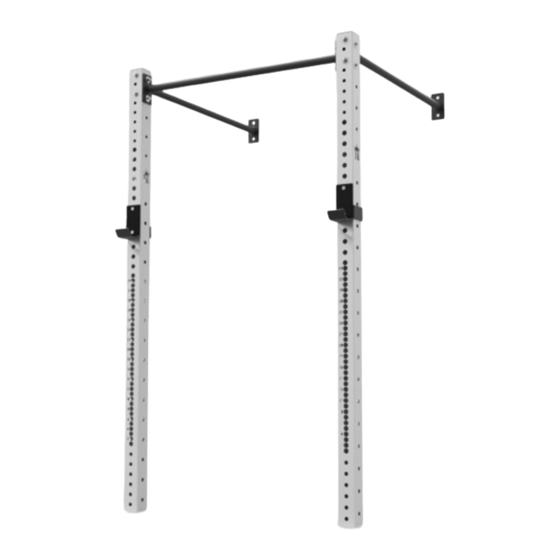

Wall mounted squat rack
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
WM
WALL MOUNTED
-70
SQUAT RACK
# t ra i n i n c o l o u r

Advertisement

loading
Need help?

Need help?

Do you have a question about the WM-70 and is the answer not in the manual?

Questions and answers

Related Manuals for Iron King WM-70

Summary of Contents for Iron King WM-70

  • Page 1 WALL MOUNTED SQUAT RACK # t ra i n i n c o l o u r...

  • Page 2: Product Specification

    WM-70 PRODUCT SPECIFICATION WARNING TO AVOID POSSIBLE HARM, READ AND FOLLOW MAX TRAINING WEIGHT 400KG THIS ADVICE AND THE FOLLOWING INSTRUCTIONS. MISUSE OF THE EQUIPMENT OR INCORRECT PRODUCT WEIGHT 55KG ASSEMBLY MAY RESULT IN SERIOUS OR FATAL INJURY. ENSURE THAT ALL PARTS ARE UNDAMAGED...

  • Page 3: Parts List

    WM-70 PARTS LIST TOOLING M8 WALL/FLOOR FIXINGS 19MM SPANNER STEP LADDER DRILL DRIVER SPIRIT LEVEL x2 UPRIGHTS [1] x3 PULL UP BAR/WALL BRACES [2] x8 M12 NUT [4] x2 ‘ J ‘ HOOKS [3] x16 M12 WASHER [5] x8 M12 BOLT [6]...
  • Page 4 STEP 1 ASSEMBLY FIX THE PULL UP BAR [2] TO ANY OF THE TWO HOLES AT THE TOP OF THE x2 UPRIGHTS [1], ENSURING THAT THE IRON KINGS LOGO IS FACING OUTWARDS. FASTEN TOGETHER USING BOLTS [4], NUTS WASHERS [6]. REQUIRED x4 [4] x4 [5]...
  • Page 5 STEP 2 ASSEMBLY FIX THE x2 WALL BRACES [2] TO THE TWO MOST HOLES UPRIGHTS, PERPENDICULAR PULL BAR. FASTEN TOGETHER USING BOLTS [4], NUTS WASHERS [6]. REQUIRED x2 [2] x4 [4] x4 [5] x8 [6]...
  • Page 6 FIX USING THE FOUR HOLES ON THE WALL BRACES. DO THIS IN A MANNER WHICH IS APPROPRIATE TO THE SPECIFIC WALL BEING USED. DISCLAIMER OWNER’S DISCRETION IS REQUIRED FOR THIS STEP AND IRON KING ARE NOT RESPONSIBLE FOR ANY DAMAGE INJURY CAUSED.
  • Page 7 ENSURE THAT FIRST PLUM WITH FLOOR USING SPIRIT LEVEL. DO THIS IN A MANNER WHICH IS APPROPRIATE SPECIFIC FLOOR BEING USED. DISCLAIMER OWNER’S DISCRETION IS REQUIRED FOR THIS STEP AND IRON KING ARE NOT RESPONSIBLE FOR ANY DAMAGE INJURY CAUSED.
  • Page 8 STEP 5 ASSEMBLY ATTACH THE x2 J HOOKS [3] TO THE UPRIGHTS. HOLD THE J HOOK UPRIGHT SO THAT IT LOOKS 90° LIKE A ‘ J ’. TURN THE J HOOKS 90° TO THE SIDE AND PLACE THE PIN INTO A HOLE ON THE FRONT OF THE RACK. THE HOOK CAN NOW BE TURNED BACK UPRIGHT SO THAT SITS FLUSH WITH THE RACK UPRIGHTS.
  • Page 9 FOLLOW Iron King @iron_king_gym equipment #trainincolour REVIEW www.ironking.uk. c om CONTACT sales@ironking.uk. c om 0121 326 9902...
