Introduction
The RB-25/RB-25S builds on the success of the previous trusted Redundancy Bus Series by adding new
advanced features combined with a compact new design which meets the needs of users who want a flight-safe
system built in a smaller size unit.
Triple Receiver Redundancy & Dual Power Input
RB-25/RB-25S has been designed to offer both dual-power and triple-receiver redundancy. This provides the
user triple receiver signal and telemetry redundancy by adding multiplex ports (RX1-3 IN / S.Port). Dual-power
provides a safe and efficient way to power the system with your power sources connected via a pair of standard
XT30 connections. The dual-power consumption system is designed to operate in balance mode, where it
consumes the power line from either power sources depending on which has the higher voltage.
Advanced Stabilizer (RB-25S)
The RB-25S offers an ADV Stabilizer function which is an upgrade over the original classical gyroscope
stabilization modes. The ADV Stabilizer offers an advanced mode that provides more programmable stabilized
channels and flexibility.
The classical stabilization mode has been enhanced with 5 additional stabilization channels, providing pin
mapping to each channel in the multiple flight modes like Stabilization, Auto-Level, Hover, and Knife-Edge with
an airplane model.
In the advanced stabilization mode, all the RB25S output pins are configurable for stabilization and additional
advanced features such as File Sharing, Programmable Parameters, and Developer Access, etc.
Diversified Sensor Telemetry
The RB-25/RB-25S also works as an extensive sensor module with various built-in sensors including diversified
telemetry. The RB-25S also includes the high-precision telemetry sensor for monitoring altitude, vertical speed,
etc. can be also used as an alternative to using a GR or S series receiver.
Power Switch Function
The built-in power switch function draws the support of using multiple types of external switches (e.g. NFC switch,
Pin Plug, etc.) that enables flexible options on how the power can be switched on/off without the need to
plug/unplug the battery connections.

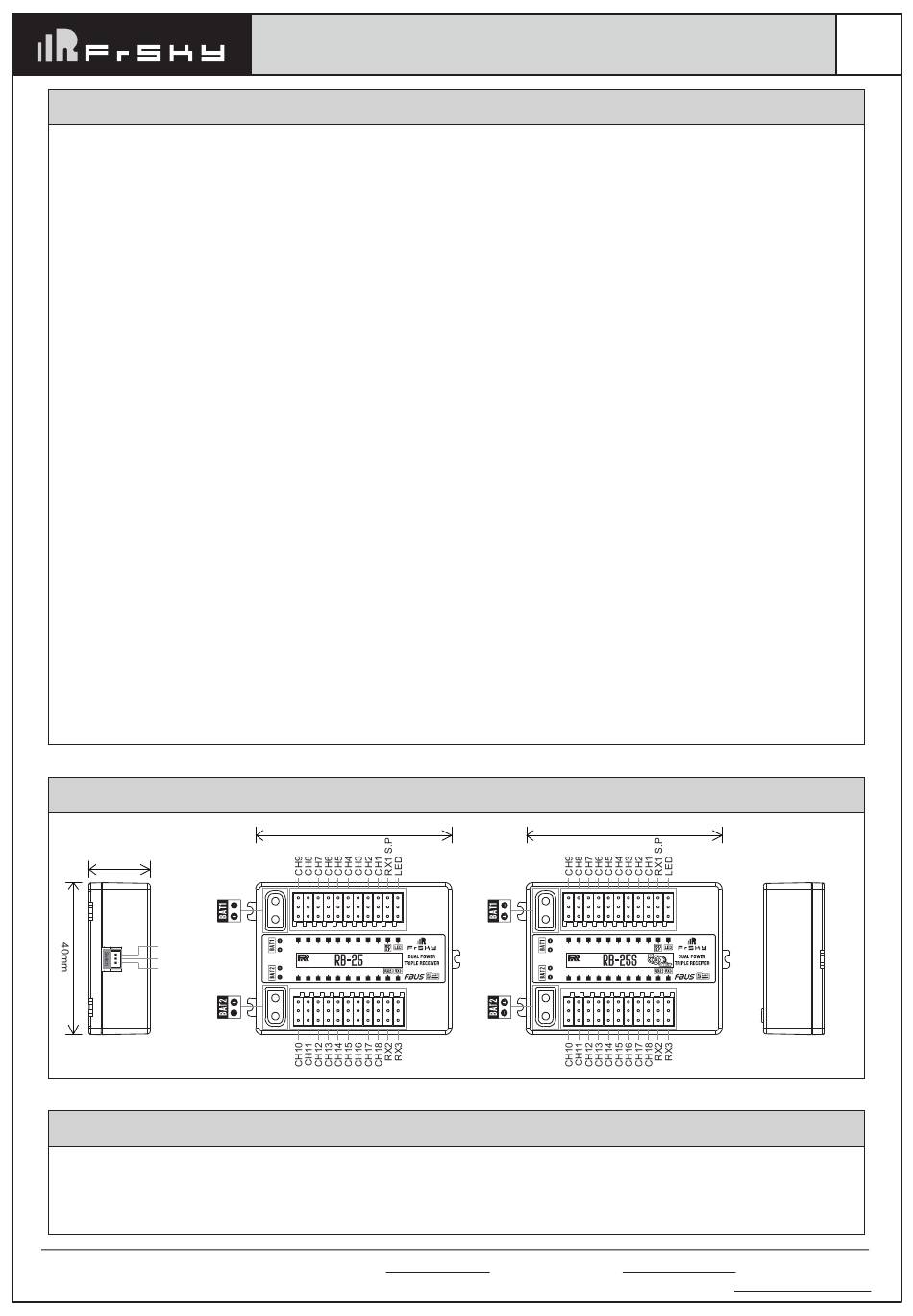

Overview
16mm
Switch
GND
VOUT
Specifications
● Dimension: 53*40*16mm (L*W*H)
● Weight: 25.6g (RB-25) / 26.7g (RB-25S)
● Number of Channel Ports: 18 (PWM/FBUS/S.Port/SBUS Out)
● 3 RX Input Ports & 1 LED Indicator Port
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky RB-25 & RB-25S
53mm
9
8
7
6
5
4
3
2
1
10 11 12 13 14 15 16 17 18
www.frsky-rc.com
53mm
9
8
7
6
5
4
3
2
1
10 11 12 13 14 15 16 17 18
Contact us : frsky@frsky-rc.com
Version
1.0
