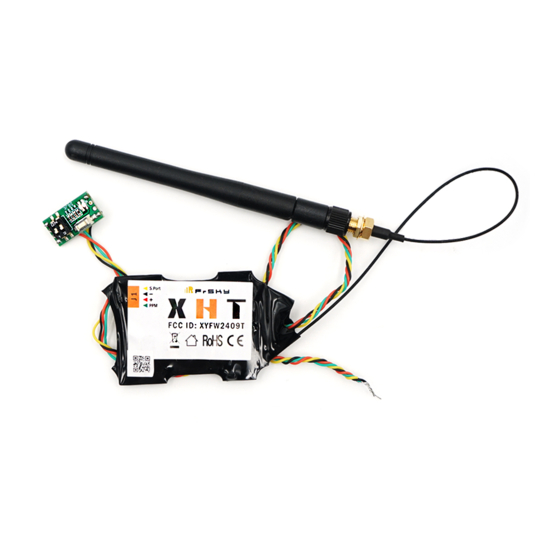

FrSky XHT Instruction Manual

Introduction

Thank you for purchasing FrSky XHT telemetry module.In order to fully enjoy the benefits of this system, please
read the instruction manual carefully and set up the device as described below.

Overview

Specifications

● Operating Voltage Range: 6~15V
● Operating Current: 140mA(@6V), 80mA (@12V)
● Output Power: ≤ 100mW
● Modulations: PXX or CPPM (auto-detected)
● Modes: D8, D16 or LR12 (selectable)
● Telemetry Interface: Smart Port
What's New!
● Two auto-detected modulations of PXX (mode selection, bind, model match, range check, failsafe, etc. on radio
side) or CPPM.
●
Three selectable modes of D8 (existing 8ch two-way), D16 (new 16ch two-way full duplex transmission) and
LR12 (new 12ch one-way long range).
● Smart Port enabled, realizing two-way full duplex transmission.
● Detect the module antenna's working status and give sound warnings if the module antenna is broken or does
not have intact contact, etc.
● Super lower latency (approx. 1/3 of current systems) and higher precision (transmitter's hardware and software
support required, such as FrSky transmitters).
Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by
FrSky Electronic Co., Ltd. All products enabled with Smart Port (including XHT module, X8R receiver, new
hub-less sensors, new Smart Dashboard,etc), serial port user data and other user input/ output devices
can be connected without limitations for numbers or sequences at a high transmission speed.
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com

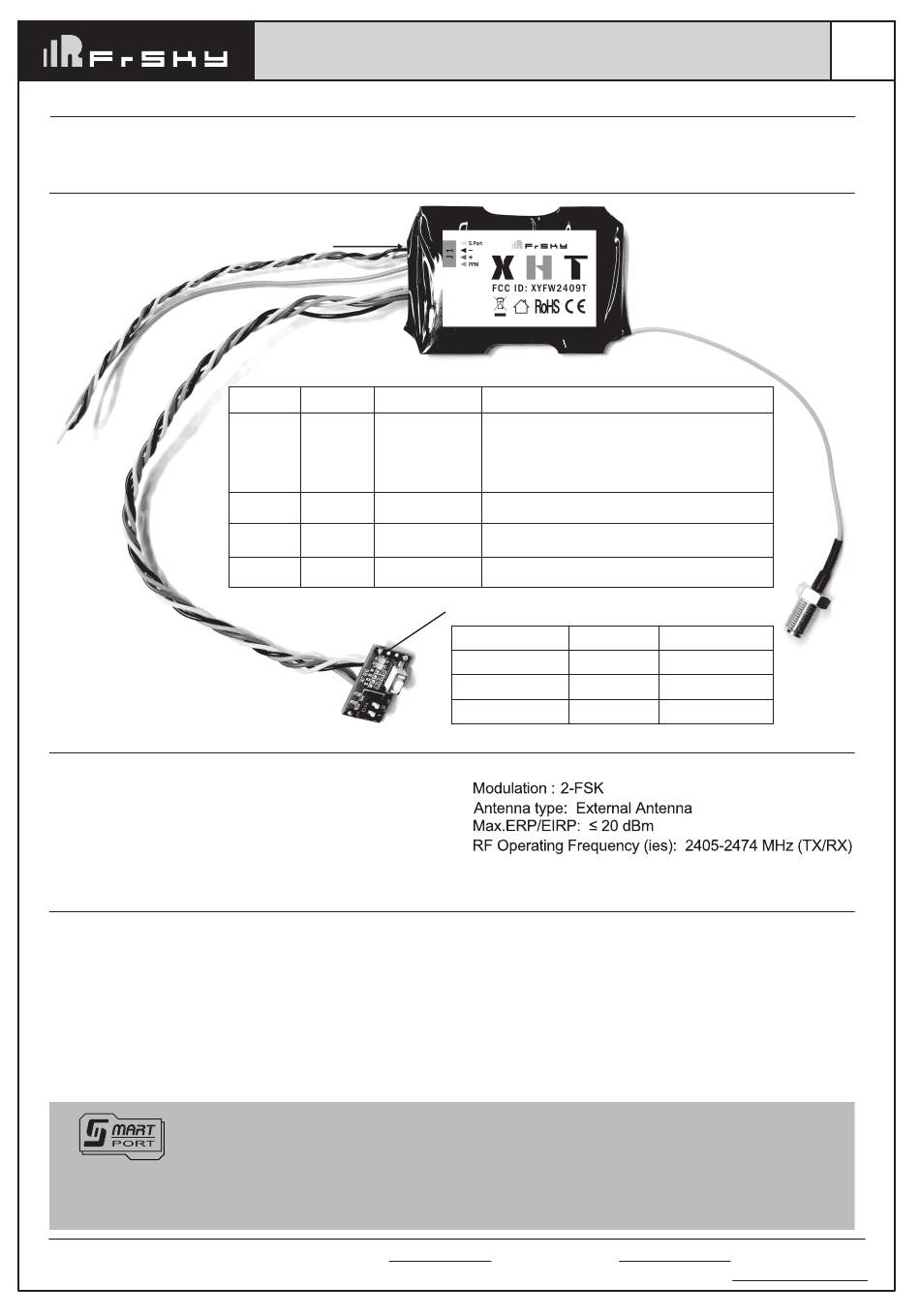

Instruction Manual for FrSky XHT Module
Smart Port
Mode and Compatibility
Switch 1 Switch 2 Mode of XHT
ON OFF
OFF OFF
OFF ON
ON ON Not Defined
www.frsky-rc.com
Compatible Receiver
V8-II series receivers
(V8FR-II,V8R7-II,V84R-II,VD5M,etc.)
D8
D series receiver
(D8R-II plus,D8R-XP,D6FR,D4R-II,etc.)
D16 X series receiver (X8R,X4R,etc.)
LR12 L series receiver (L9R,etc.)
LED Indication
Green LED RED LED
Flashing
Flashing
ON
● Upgrade Interface: Smart Port
●
●
●
●
Contact us: frsky@frsky-rc.com
01140133
/
Status
ON Normal
OFF Range Check
Flashing Binding
Version
1.0
