FrSky R9M Lite Pro Instruction Manual

Introduction

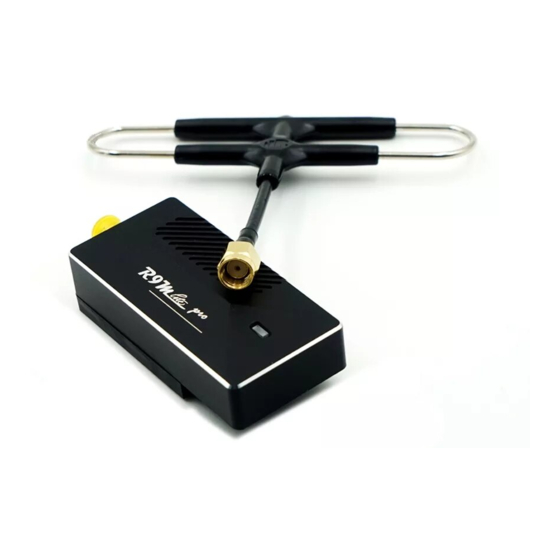

The R9M Lite Pro is the upgraded 900MHz Lite module. It has a high-speed digital interface, supports up to 1W RF
power, and is fully encased in a CNC aluminum protective shell which also aids in heat dissipation when using high
RF power. Designed with the new ACCESS firmware, it also supports spectrum analyzer functions. The module is
perfectly compatible with FrSky new ACCESS radios like Taranis X-Lite PRO and X9 Lite. In order to fully enjoy the
benefits of this system, please read the instruction manual carefully and set up the device as described below.
Overview
30

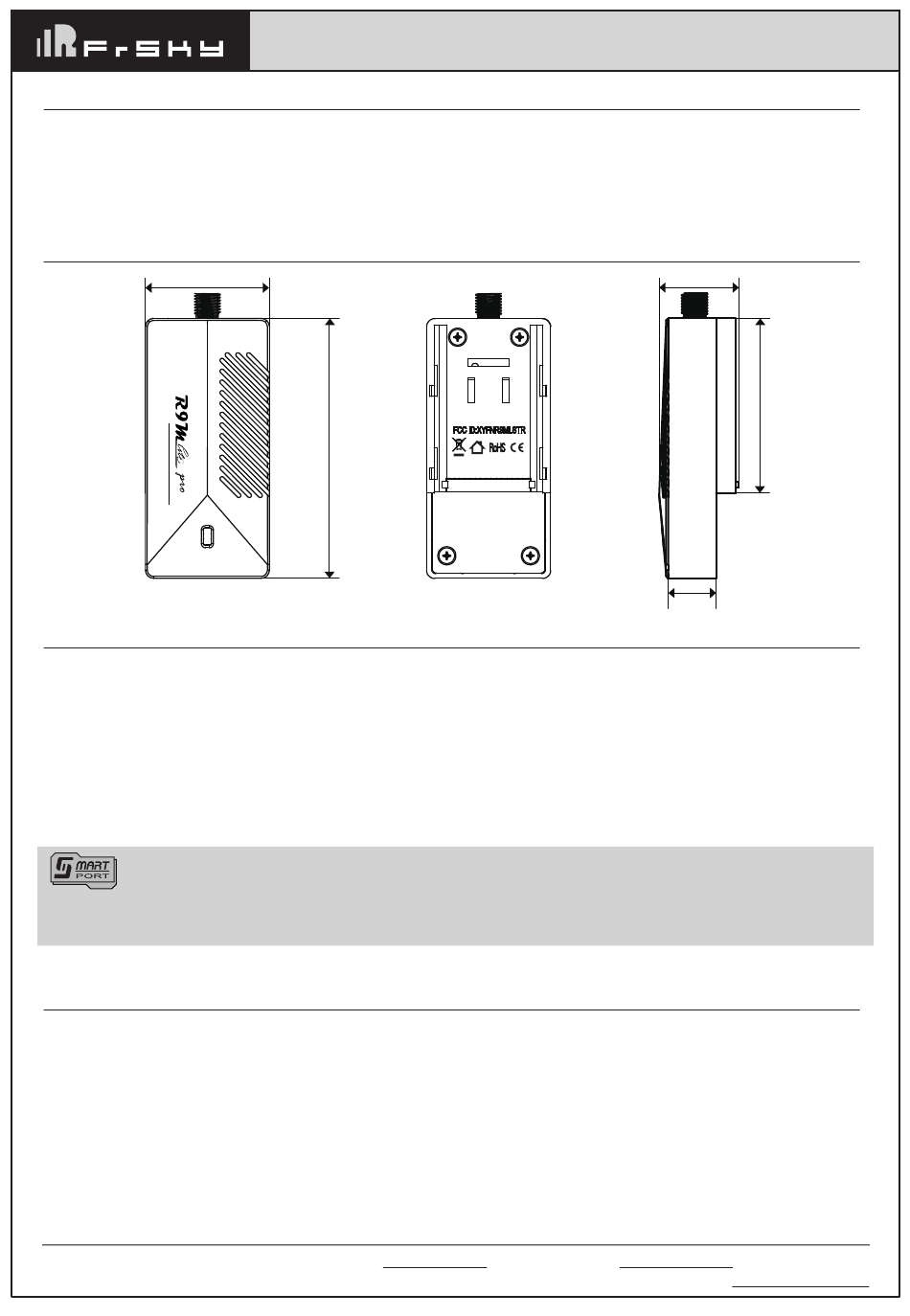

Specifications

• Dimension: 62.4mm × 30mm×18.4mm (L×W×H)
• Weight: 34g
• Channel: 16CH
• Operating Current: ≤230mA@7.2V typ
• Upgrade Interface: Smart Port
• RF Operating Frequency: 915MHz
• Compatibility: R9 ACCESS series and TD series receivers
• RF Power: 10mW/100mW/500mW/100mW~1W (Self-adaptive)
Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky Electronic Co., Ltd. All
products enabled with Smart Port (including XJT module, RX8R receiver, new hub-less sensors, new Smart Dashboard, etc), serial
port user data and other user input/output devices can be connected without limitations for numbers or sequences at a high transmis-
sion speed.

Features

• Long range, low latency, and high precision
• High-speed digital module interface
• Supports spectrum analyzer function
• Telemetry data transmission supported
• Antenna detection with precision SWR indicator (Not available at 10 mW and Range check mode)
• CNC aluminum protective shell
• Perfectly compatible with ACCESS protocol and new FrSky radio models (e.g. Taranis X-Lite PRO and new
upcoming models)
