FrSky R9M Lite Instruction Manual

Introduction

Thank you for purchasing FrSky R9M Lite telemetry module. Especially designed for FrSky Taranis X-Lite, it has
low latency and high precision RC system. In order to fully enjoy the benefits of this system, please read the
instruction manual carefully and set up the device as described below.
Overview

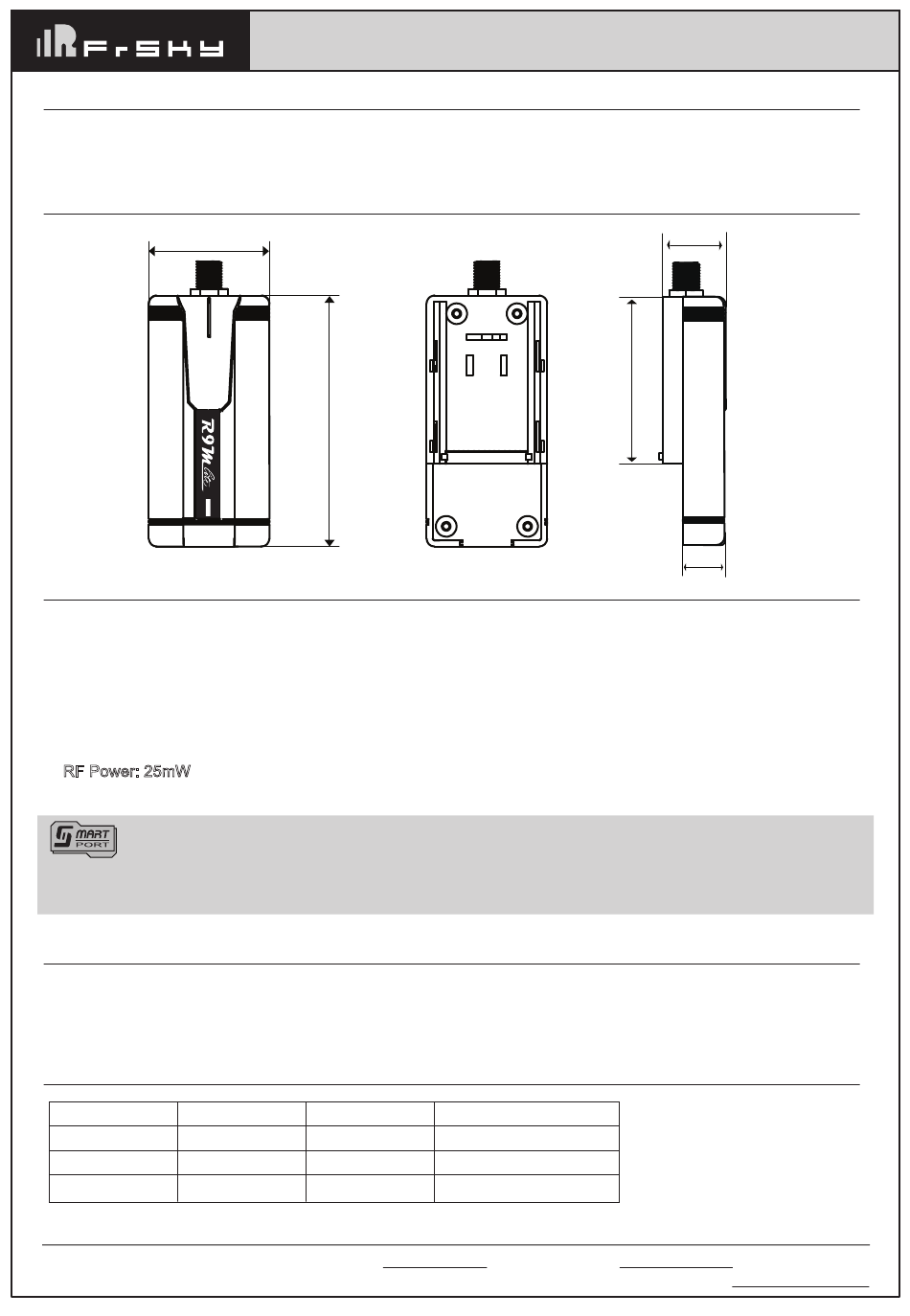

30

Specifications

Dimension: 62.4mm × 30mm×14.5mm (L×W×H)
•
Weight: 20g
•
Channel: 16CH
•
Modulation: PXX
•
Operating Current: 100mA
•
Upgrade Interface: Smart Port
•
RF Operating Frequency: 868MHz
•
Compatibility: R9 series receivers
•
RF Power: 25mW
•
Telemetry feedback and firmware upgrade approach: through S.Port on Taranis X-Lite
•
Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky Electronic Co., Ltd. All
products enabled with Smart Port (including XJT module, RX8R receiver, new hub-less sensors, new Smart Dashboard, etc), serial
port user data and other user input/output devices can be connected without limitations for numbers or sequences at a high transmis-
sion speed.

Features

Firmware upgradable
•
Telemetry data transmission supported
•
Long Range, Low Latency and High precision RC system
•
LED State
Greed LED Red LED
OFF
Flashing
Flashing
OFF
