Introduction
FrSky XJT Lite module is a 2.4GHz frequency system which is especially designed for FrSky Taranis series
transmitter like X Lite S/Pro and X9 Lite. In addition, it gets low latency and high precision thanks to the upgraded
digital interface and high-speed data transmission. This being the "Lite" version works perfectly with all FrSky
receivers in the ACCST D16(Non-LBT), D8, LR12.

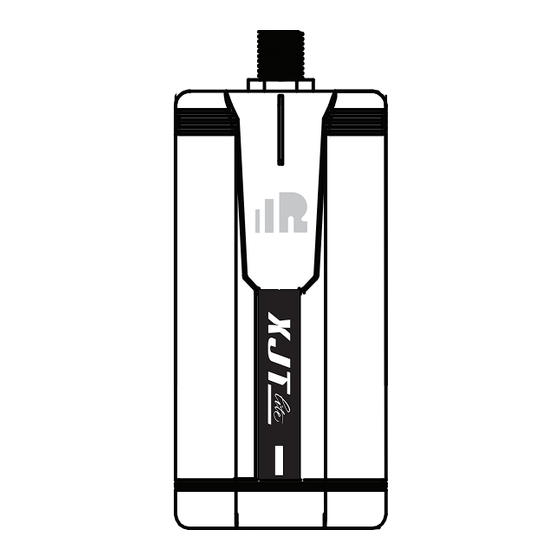

Overview
30
Mode of XJT Lite
D8
D16 (Non-LBT)
LR12
Specifications
● Dimension: 62.4mm × 30mm×14.5mm (L×W×H)
● Weight: 20g
● Channel: 16CH
● Operating Voltage Range: DC 6.5V~8.4V
● Operating Current: 100mA@7.2V Typ
● Upgrade Interface: Smart Port
Features
● High-speed digital module interface
● Telemetry data transmission supported
Binding Procedure
Binding is the process of uniquely associating a particular receiver to a transmitter module. A transmitter module can
be bound to multiple receivers (not to be used simultaneously). A receiver can only be bound to one transmitter
module. Follow the steps below to finish the binding procedure.
1. For Taranis X-Lite Pro as an example, turn on the transmitter, go to the MENU-MODEL SETUP-PAGE 2, choose
External RF-Mode XJT Lite D16 or D8/LR12. then select [Bnd].
2. Connect the battery to the receiver while holding the F/S button on the receiver. The RED LED on the receiver
will flash, indicating the binding process is completed (please refer to the corresponding receiver's instruction
manual for details).
3. Turn off both the transmitter the receiver.
4. Turn on the transmitter and connect the battery to the receiver. The GREEN LED on the receiver indicates the
receiver is receiving commands from the transmitter. The receiver/transmitter module binding will not have to be
repeated, unless on of the two is replaced.
